Shure Microflex Complete Wireless MXCW

To Next Page

To Previous Page

Shure Incorporated

29/101

Mounting at an Electrical Box

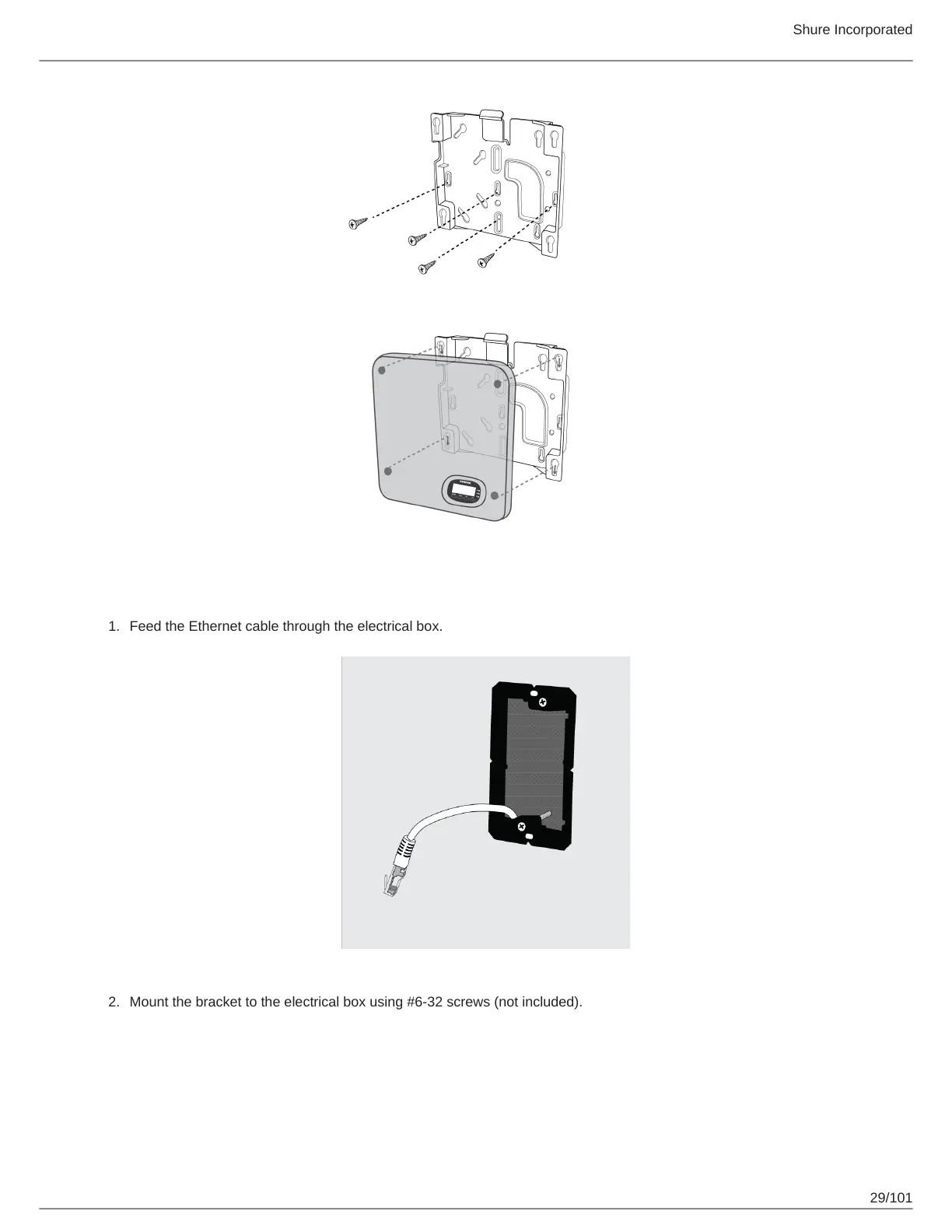

Feed the Ethernet cable through the electrical box.

Mount the bracket to the electrical box using #6-32 screws (not included).
