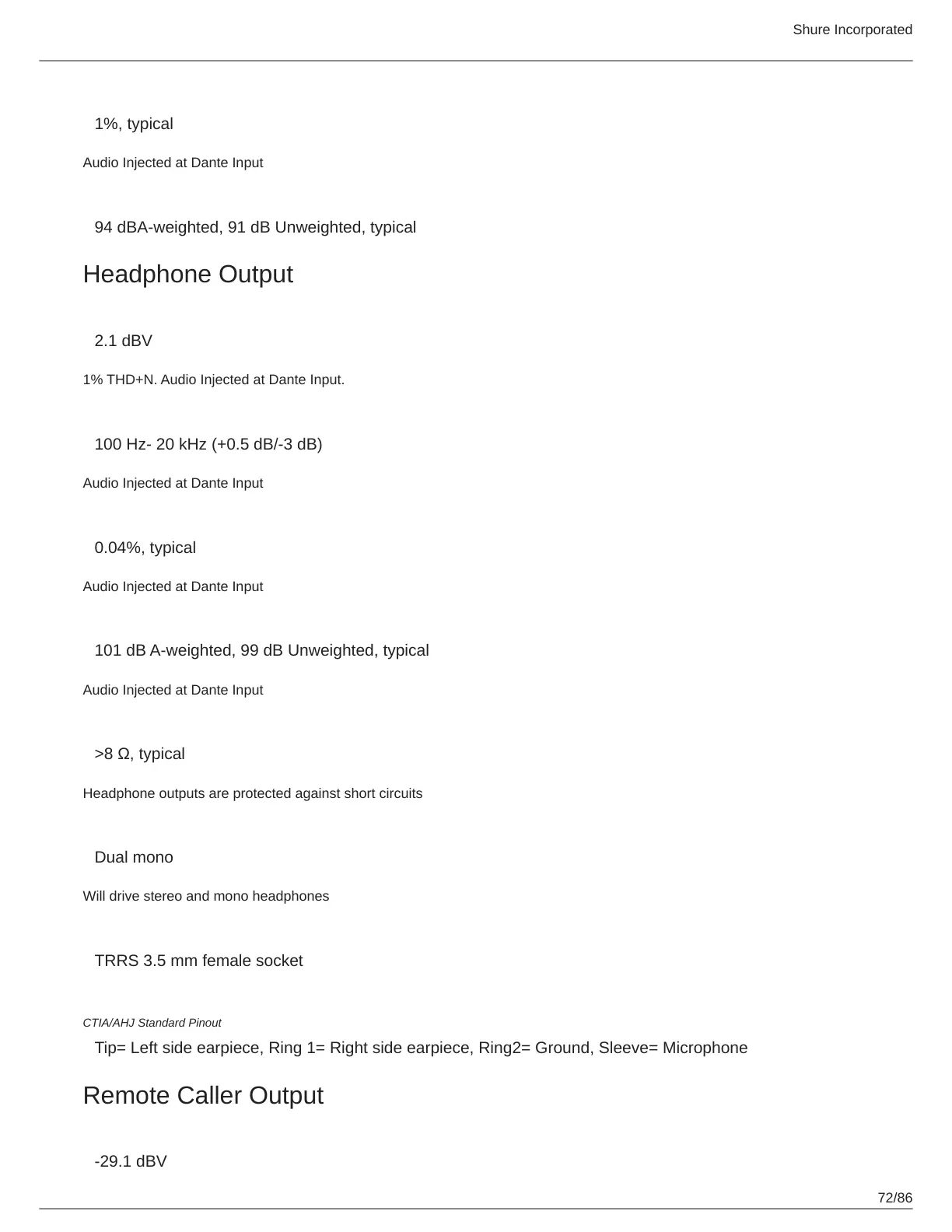

Total Harmonic Distortion
1%, typical
Audio Injected at Dante Input
Dynamic Range
94 dBAweighted, 91 dB Unweighted, typical
Headphone Output
Maximum Output Level
2.1 dBV
1% THD+N. Audio Injected at Dante Input.
Frequency Response
100 Hz 20 kHz (+0.5 dB/3 dB)
Audio Injected at Dante Input
Total Harmonic Distortion
0.04%, typical
Audio Injected at Dante Input
Dynamic Range
101 dB Aweighted, 99 dB Unweighted, typical
Audio Injected at Dante Input
Load Impedance
>8 Ω, typical
Headphone outputs are protected against short circuits
Configuration
Dual mono
Will drive stereo and mono headphones
Type
TRRS 3.5 mm female socket
Pin Assignments
CTIA/AHJ Standard Pinout
Tip= Left side earpiece, Ring 1= Right side earpiece, Ring2= Ground, Sleeve= Microphone
Remote Caller Output
Maximum Output Level
29.1 dBV
