Product description | SBM V655 | 29 en
3.5 SBM V655
1
2
8
5
9
10
13
12
11
4
6
7
14
3

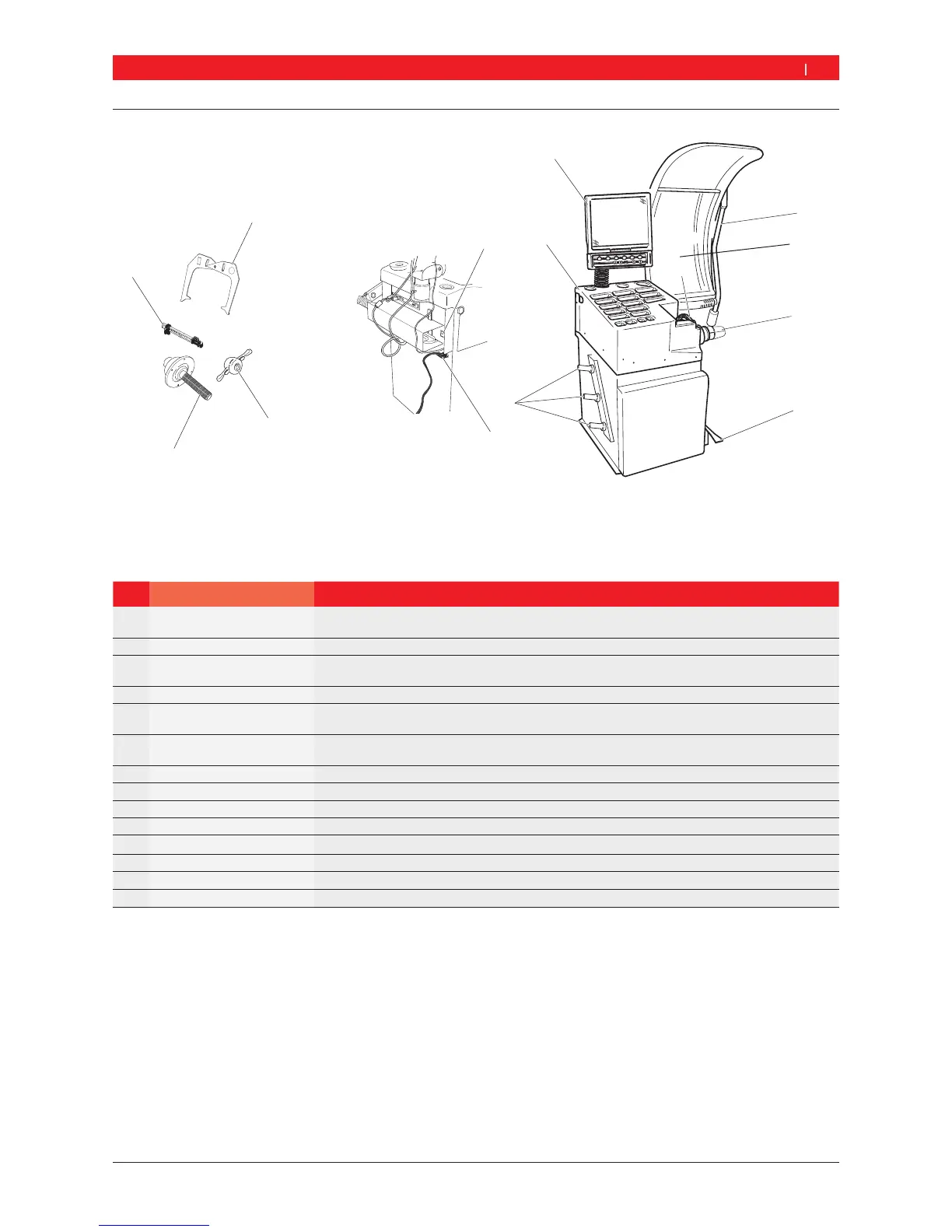

Fig. 1: SBM V655
Item Designation Functions
1 TFT monitor with
Control panel
 Software display (measured values and operating instructions)
 Operation of SBM V655, refer to Section 7
2 Gauge arm Determination of rim width
3 Wheel guard  Protection of operator against flying particles (e. g. dirt, water).
 Starting and stopping measurement, refer to Section 7.3
4 Cone of drive shaft Flange mounting
5 Pedal  Locking of shaft / wheel u.
 Transfer of rim data o, refer to Section 7.3
6 Vernier caliper
(electronic)
 Recording of rim distance and rim diameter.
 Determination of positions for attachment of adhesive weights.
7 Tray For storing balance weights and accessories
8 Clamping tool holders For storing accessories
9 Mains socket Connection for power cord.
10 On/off switch Switching SBM V655 on and off.
11 Quick-action clamping nut Centering and attachment of wheel on cone
12 Centering flange Wheel attachment.
13 Manual vernier caliper Can be used as substitute if the electronic vernier caliper is defective.
14 Measuring compasses Can be used as substitute if the rim width and rim diameter cannot be recorded electronically.
