34 | SBM V655 | Fitting and removing the wheelen
6. Fitting and removing the
wheel
WARNING – Wheel slip!
Risk of crushing of fingers and other body
parts when attaching and removing wheel.
 Wear protective gloves.
 Wear safety shoes.
 Do not place fingers between the wheel and
the shaft.
 Heavy wheels should always be handled by
two people.

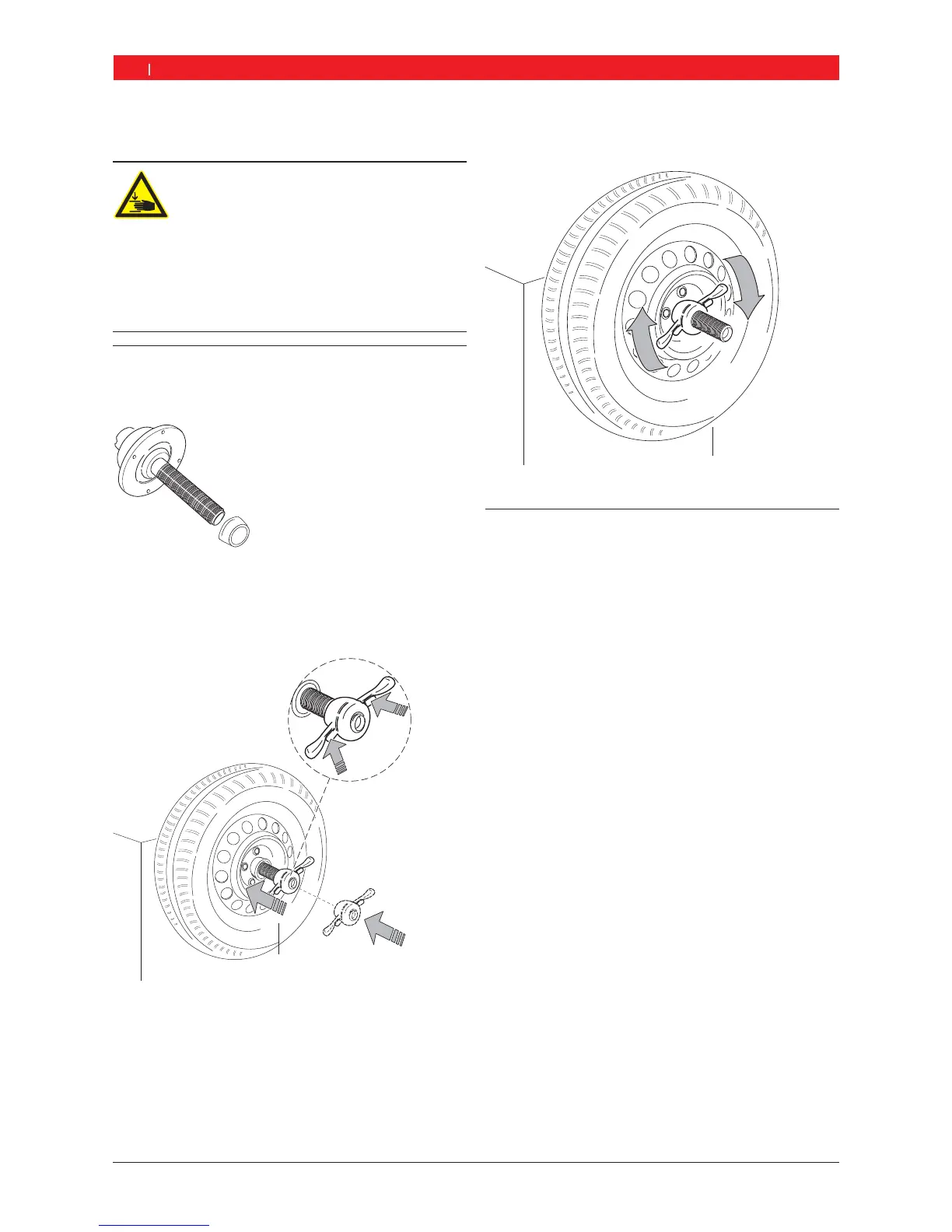

6.1 Securing the wheel
1. Switch on the SBM V655 with the On/Off switch.
2. Position a suitable cone on the shaft (flange).
651002-07 _Rf
3. Use a wire brush to remove any dirt.
4. Place the wheel on the shaft against the cone.
5. Push the unlocked quick-action clamping nut onto
the shaft and press firmly against the wheel.
651002-08 _Rf
1
2
3
6. Release the lock and turn the quick-action clamping
nut clockwise until the wheel is firmly braced.
651002-09 _Rf
"The wheel is secure.
6.2 Removing the wheel
1. Turn the quick-action clamping nut anti-clockwise
and release the wheel.
2. Unlock and take off the quick-action clamping nut.
3. Remove the wheel.
