656 234 2010-11-22| Sicam srl società unipersonale
30 | SBM V655 | Commissioningen

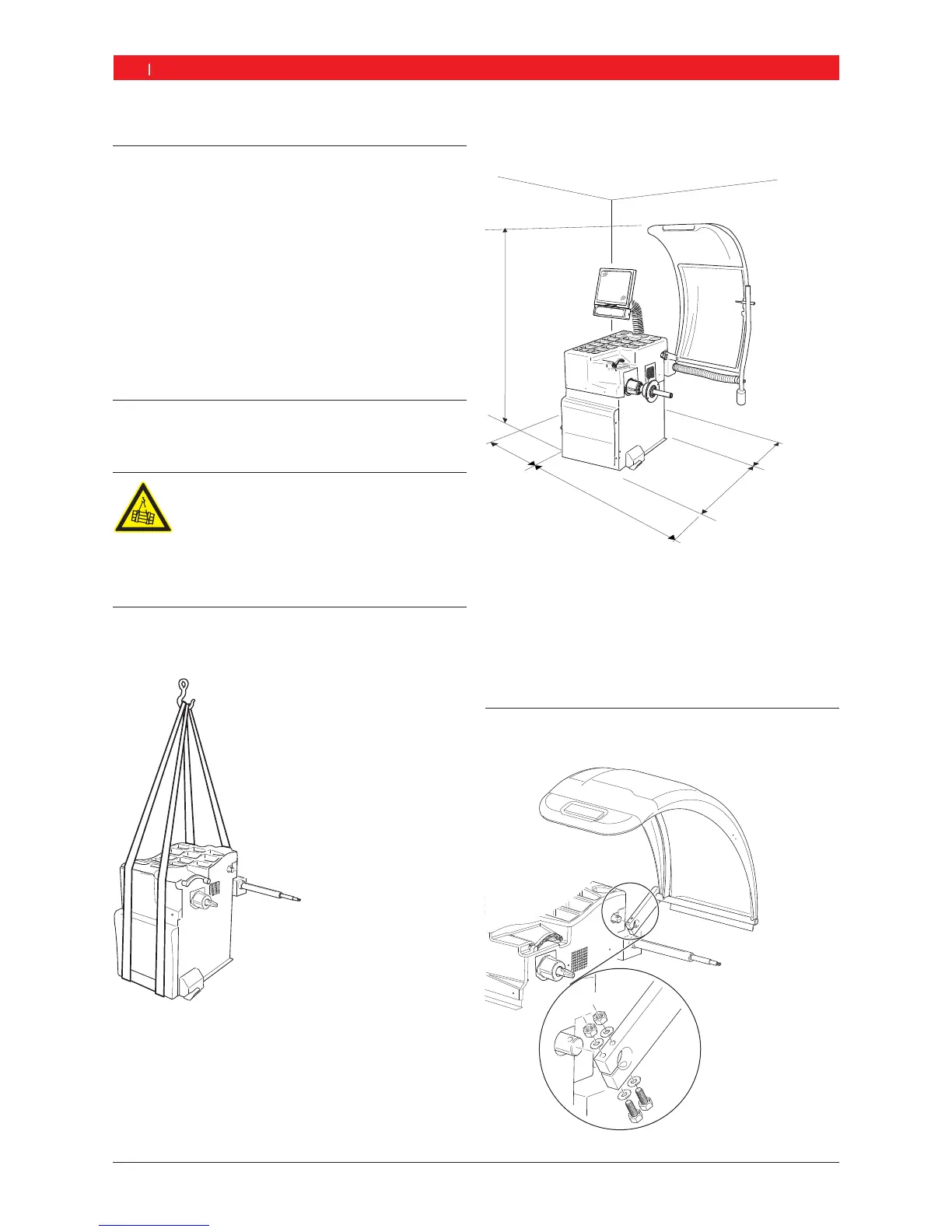

4. Commissioning
4.1 Unpacking
1. Remove the steel bands and fasteners.
2. Carefully lift off the packaging.
3. Remove the wheel guard, accessories and packaging
material from the packaging unit.
i Check that the SBM V655 and the accessories are in
proper working order and that there are no visible
signs of component damage. In case of doubt, do
not start up the unit and consult customer service.
i Remove the accessories and packaging material from
the packaging unit.
4.2 Set-up
1. Slacken off the four bolts with which the SBM V655
is attached to the pallet.
WARNING – Defective or incorrectly atta-
ched lifting straps!
Risk of injury due to SBM V655 falling down.
Check lifting straps for physical damage
before attaching.
Tighten lifting straps uniformly.
Lift SBM V655 carefully.
2. Attach suitable straps of equal length and adequate
loadbearing capacity as shown.
651001-02_Rf
3. Use a crane to lift the SBM V655. Set up the unit in
the intended area, paying attention to the minimum
distances shown.
500
1890
1250
500
650
651_4410-01_Rf
i For safe and ergonomical operation, it is advisable to
set up the SBM V655 at a distance of approx. 0.5 m
from the nearest wall.
4. Fasten the SBM V655 to the floor at a minimum of
3 points.
4.3 Fitting wheel guard
Fit the wheel guard as shown.
651004-06_Rf
