Operating Instructions Chapter 3
C 4000
10 © SICK AG • Safety Systems • Germany • All rights reserved 8 009 221/16-11-00
Product description
3 Product description
This chapter provides information on the special feature and properties of the safety light
curtain C 4000. It describes the structure and the mode of function of the unit, in particular
the different operating modes.
> Please read this chapter before mounting, installing and commissioning the unit.
3.1 Special features
· Protective operation, optionally with internal or external machine-integrated restart
interlock
· Connecting options for the reset button
· External device monitoring (EDM)
· Beam coding
· Status display with 7-segment display
· Optional: Function package B
–Blanking several areas
– Blanking with tolerance of up to 2 beams
– Floating blanking
– Reduced resolution
– Monitoring the blanked area
3.2 Mode of function of the device
3.2.1 Components of the device

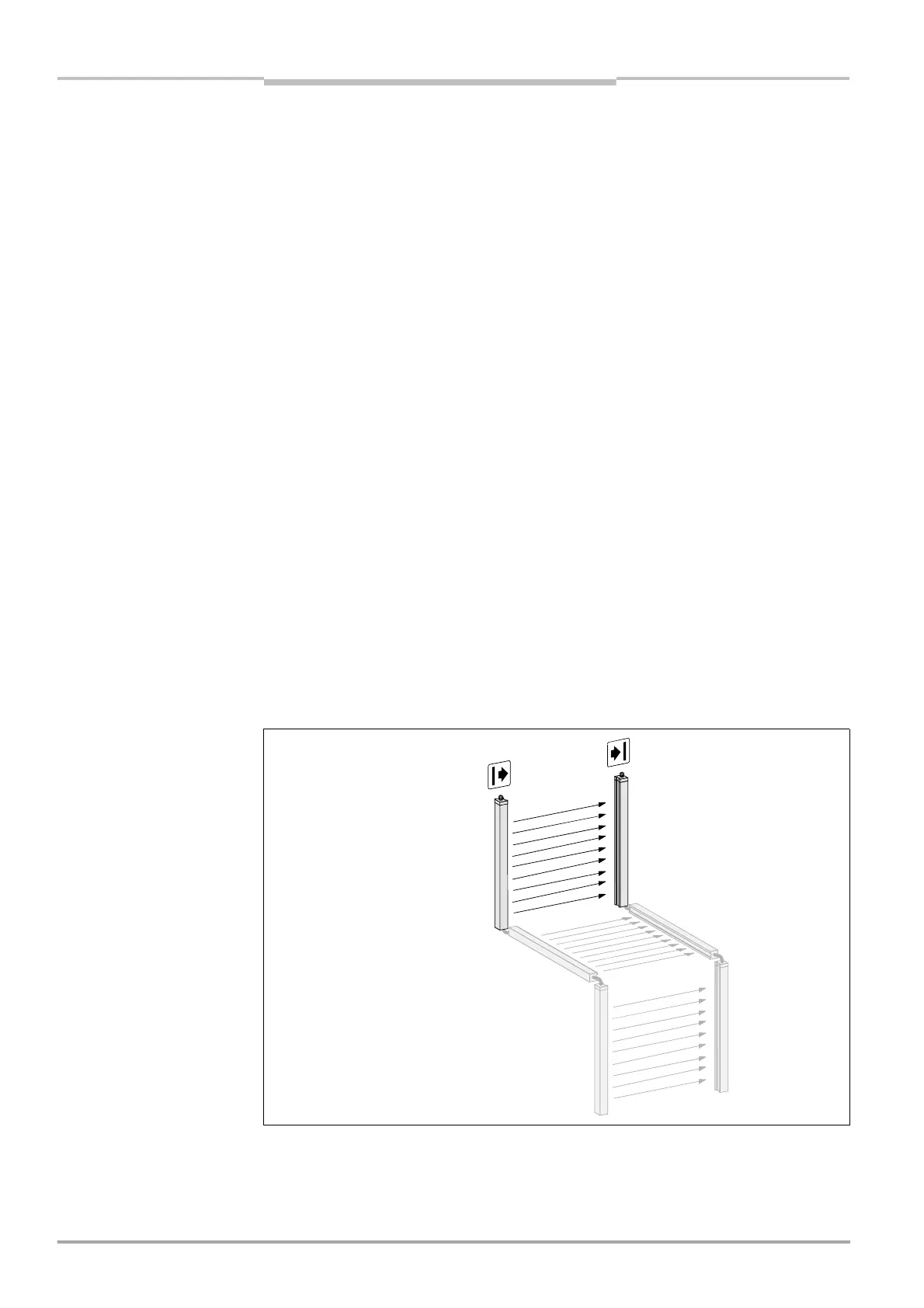

Fig. 1: Components
of the C 4000
Please refer to chapter 10 “Technical specifications” on page 43 for the data sheet.
Please refer to pages 48 ff. for the dimensional drawings.
Host (standard system, or
–with Guest 1 connected–
cascadable system)
Optional: 1. Guest system
(standard system, or
–with Guest 2 connected–
cascadable system)
Optional: 2. Guest system
(standard system)
