Operating Instructions Chapter 10
C 4000
48 © SICK AG • Safety Systems • Germany • All rights reserved 8 009 221/16-11-00
Technical specifications
10.4 Dimensional drawings
10.4.1 Standard system (not cascadable)

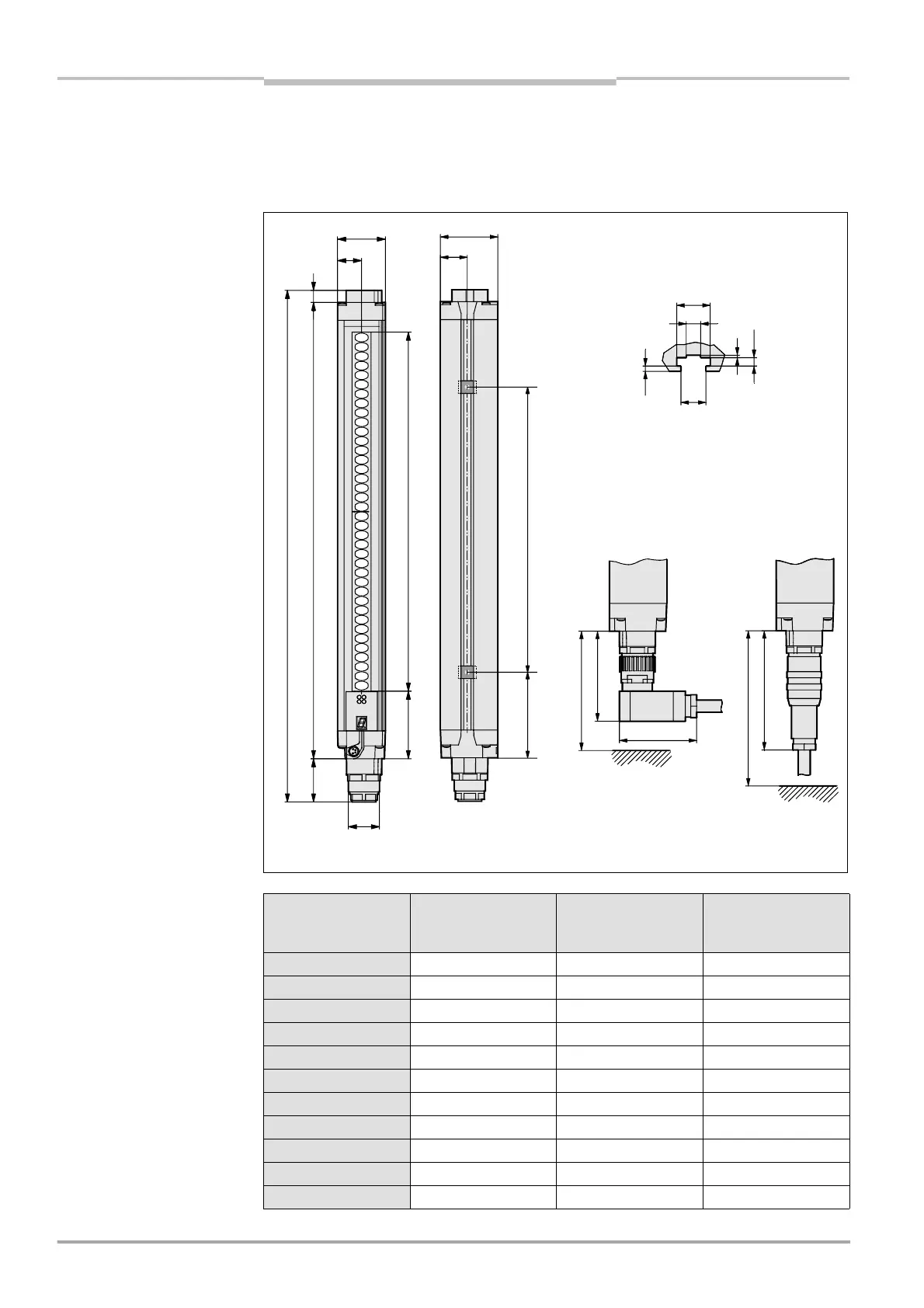

Fig. 29: Dimensional drawing
C 4000 sender, standard
system (not cascadable).
Receiver, mirror image (mm)
Protective
field height S
[mm]
Dimensions L1
[mm]
Dimensions L2
[mm]
Dimensions A
[mm]
300
381 427 224
450
532 578 374
600
682 728 524
750
833 879 674
900
984 1030 824
1050
1134 1180 974
1200
1283 1329 1124
1350
1435 1481 1274
1500
1586 1632 1424
1650
1736 1782 1574
1800
1887 1933 1724
DIN 43651 plug (M26×11 + FE)
40
48
20
14
10
L2
L136.2
56.3 S
22.4
6
10.5
2.2
1 3.5
Sliding nut groove
for side mounting
A74
approx. 140 (conn. range)
100
approx. 100
(connector range)
75
Cable sockets M26×11 + FE
with crimp contacts
65
Tab. 20: Dimensions depend-
ing on protective field height,
s
tandard system (not
cascadable)
