Operating Instructions Chapter 4

C 4000

Installation and mounting

The senders and receivers can be mounted in two different ways:

· Mounting with swivel mount bracket

· Mounting with side bracket

4.2.1 Mounting with swivel mount bracket

The swivel mount bracket is made of black polyamide PA6. The bracket is designed such

that sender and receiver can still be accurately aligned even after the bracket has been

mounted.

Note

> Attach the bolts of the swivel mount bracket with a torque of between 2.5 and 3 Nm.

Higher torques can damage the bracket; lower torques provide inadequate protection

against vibration.

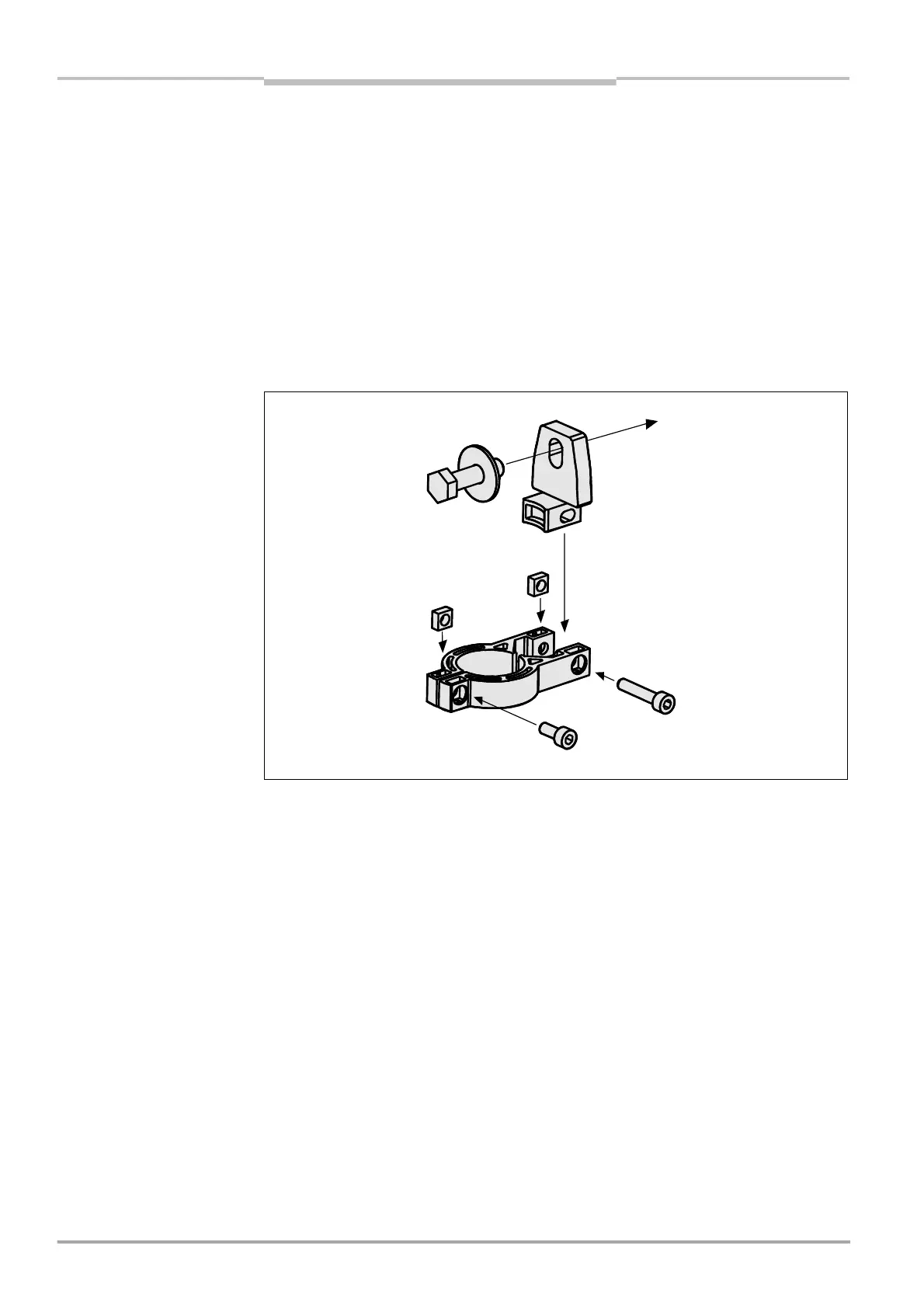

Fig. 19: Composition of the

swivel mount bracket

Part No. 2 019 659
