Operating Instructions Chapter 5

C 4000

Electrical installation

5.5 Reset button/restart button

In the operating mode protective operation with internal restart interlock (see page 13) the

operator must first press the reset/restart button before restarting.

WARNING

Select the correct installation site for the reset button!

Install the reset button outside the hazardous area such that it cannot be operated from

inside the hazardous area. When operating the reset button, the operator must be able to

oversee the entire hazardous area.

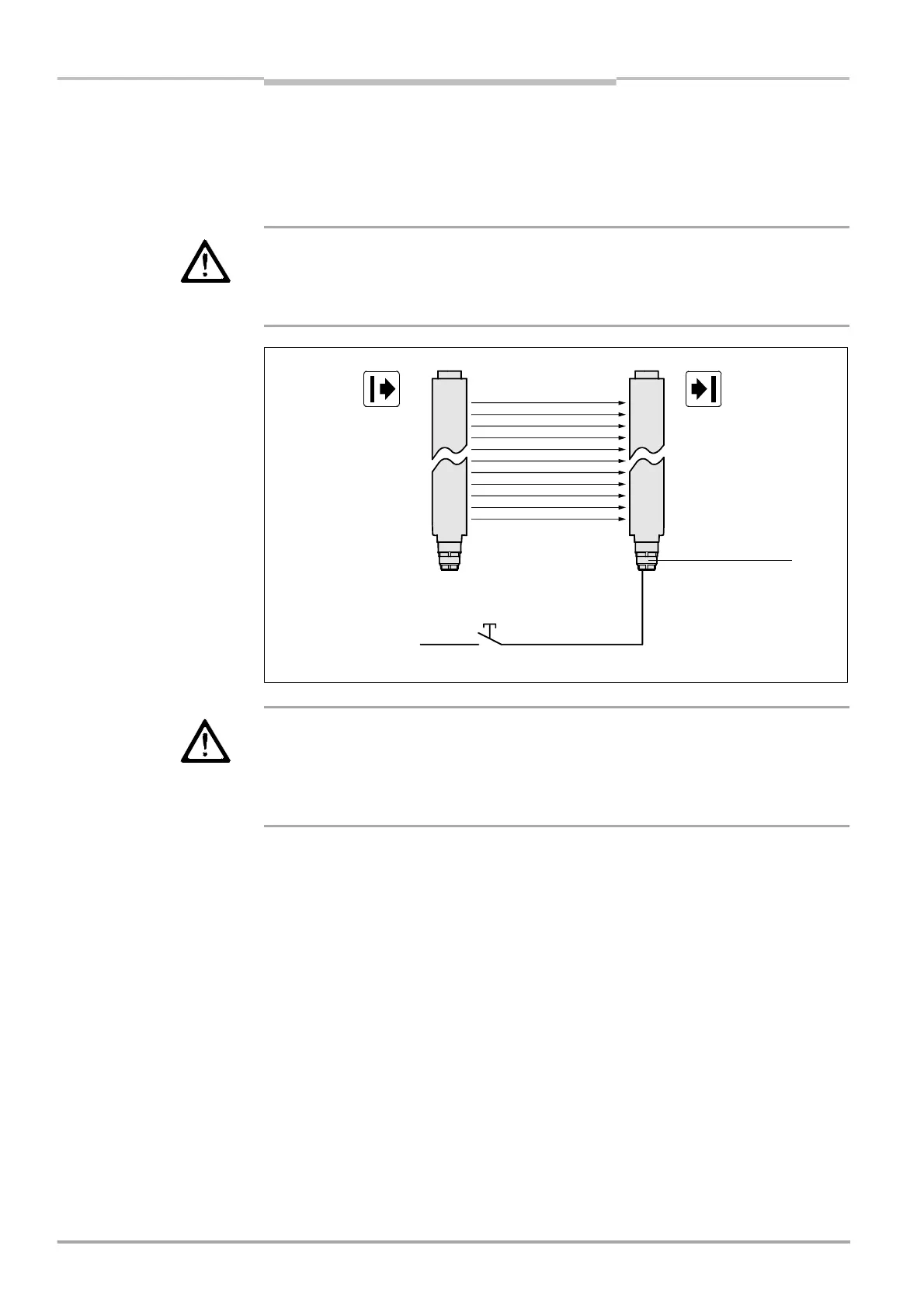

Fig. 27: Connecting the reset

button/restart button

WARNING

Reconfiguration after device replacement!

If you replace a safety light curtain with active reset function with a replacement unit, the

reset function must again be activated via the software. It is not sufficient to make the elec-

trical connections, because new devices are supplied ex factory with deactivated reset

function.

System plug

Pin 5

24 V

Reset/restart button
