Operating Instructions Chapter 10
C4000
Technical specifications
8 009 221/16-11-00 © SICK AG • Safety Systems • Germany • All rights reserved 51
10.4.5 Deflector mirror

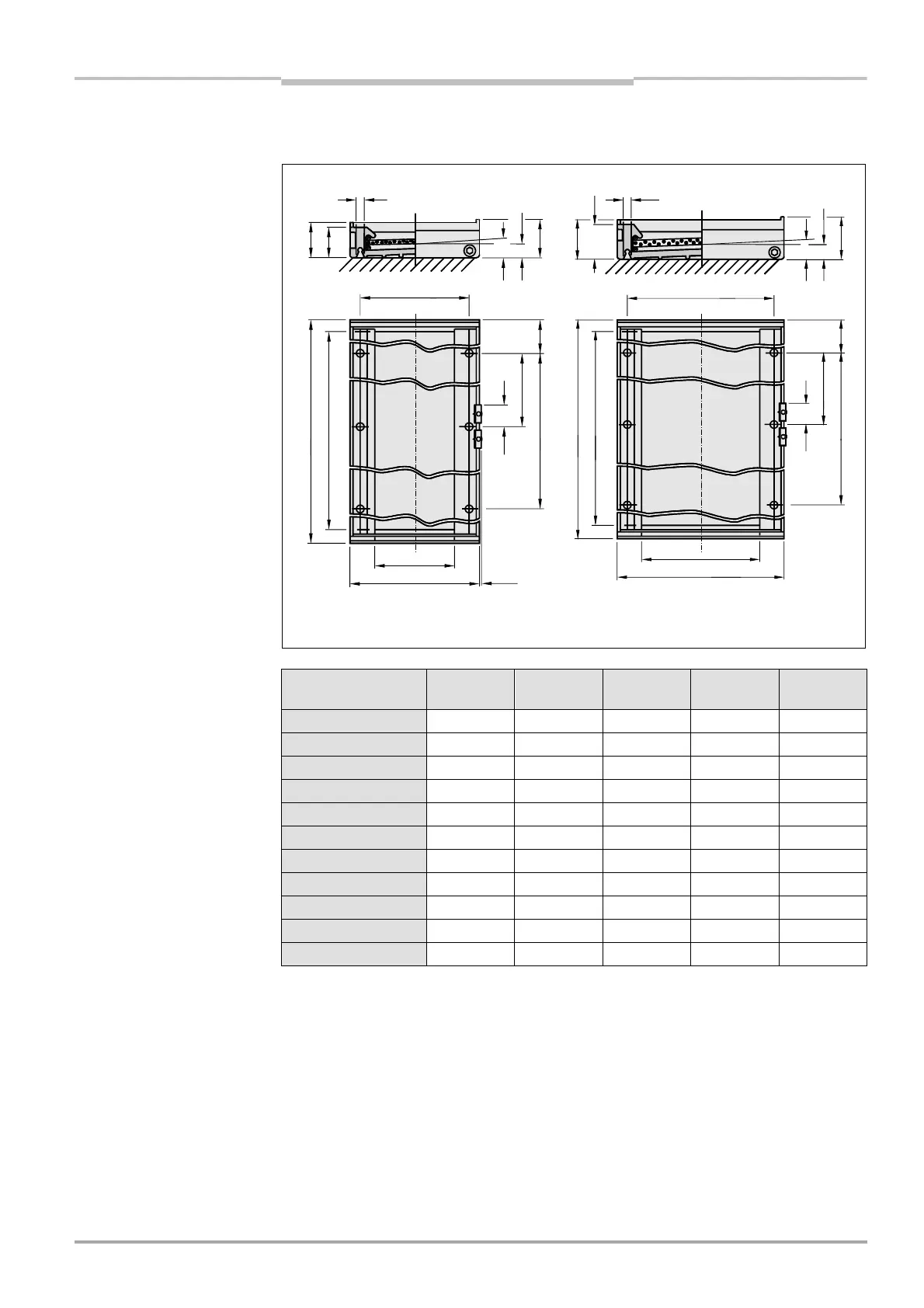

Fig. 33: Dimensional drawings,
deflector mirror (mm)
Protective
field height S [mm]
Dimension
L1 [mm]
Dimension
L2 [mm]
Dimension
L3 [mm]
Dimension
L4 [mm]
Dimension
L5 [mm]
300
366 340 307 29.5
450
523 497 307 108
600
666 640 528.5 68.75
750
816 790 639.5 88.25
900
966 940 750 108
1050
1116 1090 972 72
1200
1266 1240 1146 60
1350
1416 1390 1296 60
1500
1566 1540 1415.5 707.95 75.25
1650
1716 1690 1596 798 60
1800
1866 1840 1746 873 60
110.5
Æ7
29.5
24
18
34
13.5
L3 L5
L4
L1
L2
81.6
130 2.2
152.5
Æ7
39
33.5
18
43.5
15.4
L3 L5
L4
L1
L2
123.4
172
Deflector mirror PNS 80
Part No. see 11.5.1
Deflector mirror PNS 120
Part No. see 11.5.2
Tab. 22: Dimensions of the
deflector mirrors depending on
the protective field height
