Operating Instructions Chapter 4
C4000
Installation and mounting
8 009 221/16-11-00 © SICK AG • Safety Systems • Germany • All rights reserved 27

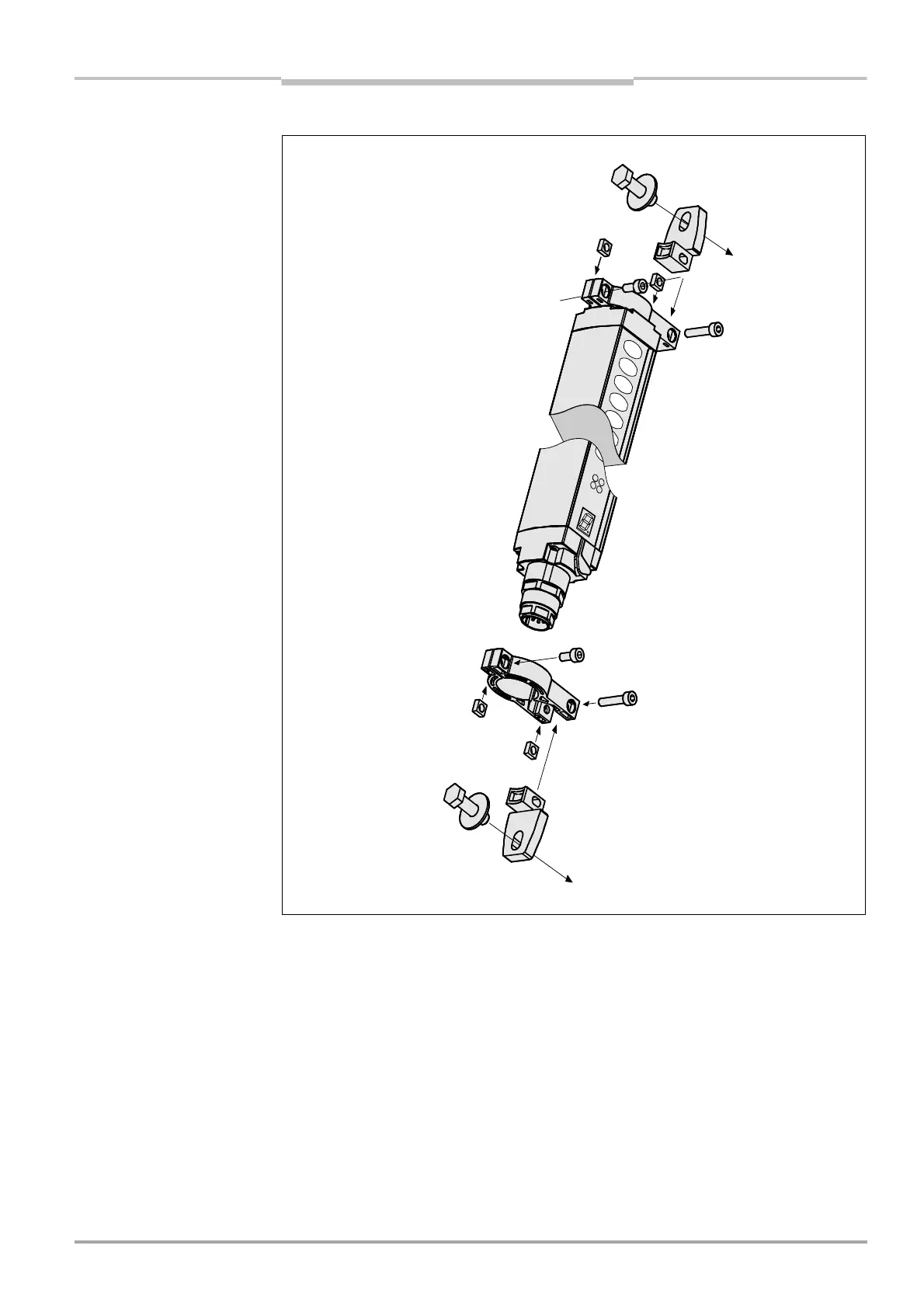

Fig. 20: Mounting sender
and receiver using
swivel mount brackets
Notes > Mount the bolts marked with and on the operator side of the system to ensure that
they remain accessible after mounting and to allow you to readjust the light curtain later,
if necessary.
> If you wish to use the additional front screen see “Additional front screen (welding spark
guard)” on page 56, make sure that the curved side of the device remains accessible
after mounting.
S
T
Q
R
