Using beam coding
Use suit
able beam codings to prevent mutual interference from neighboring systems.
b
Configure one safety light curtain with code 1 and the other safety light curtain
with code 2.

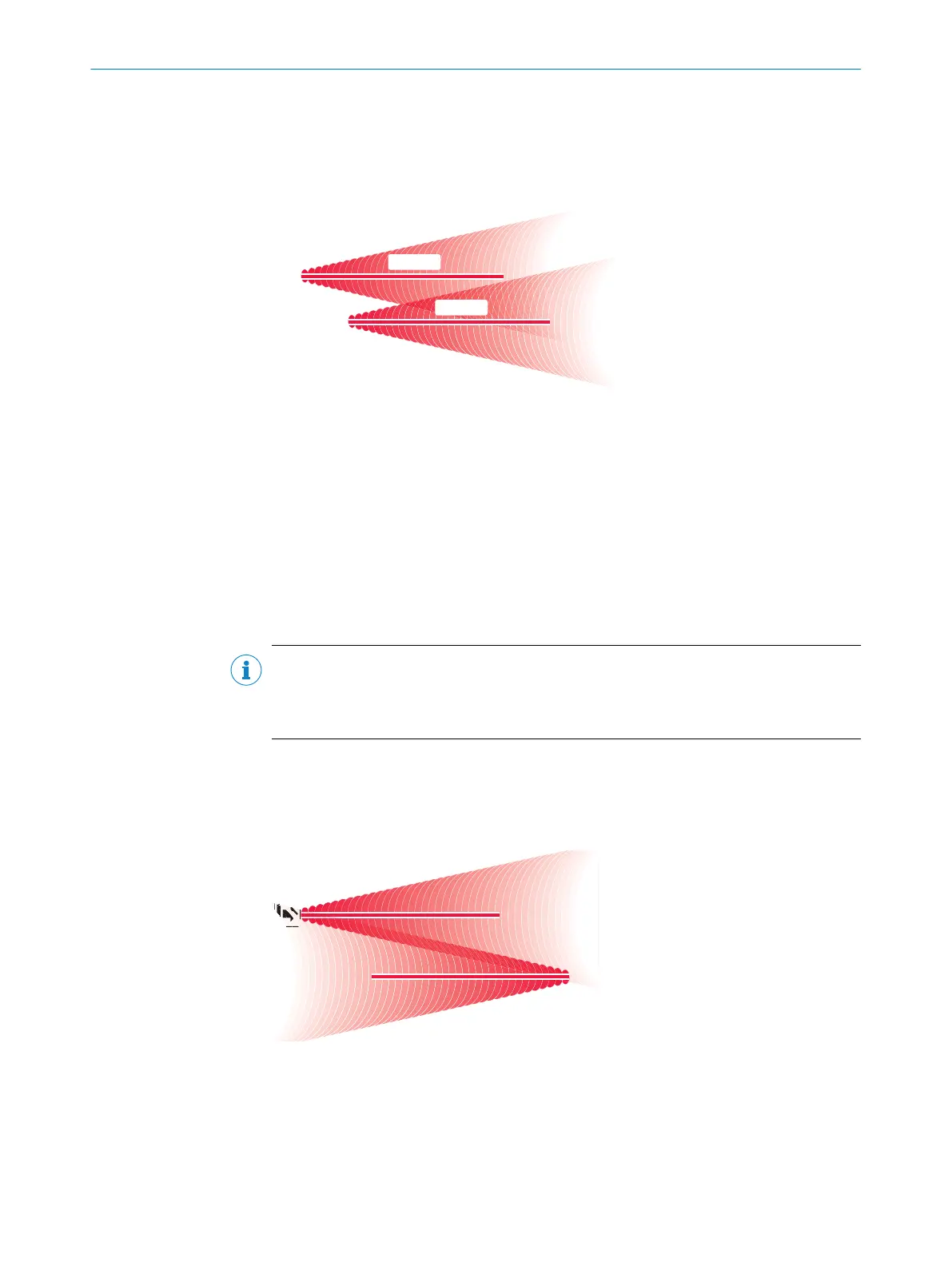

Figure 15: Trouble-free operation due to beam coding
In t
he figure, the beam coding of systems in close proximity to each other is different.
The system with code 2 is not affected by the beams of the system with code 1.
Further topics
•
"C
onfiguring beam coding", page 55
•
"Combining beam coding and reversed direction of transmission", page 30
4.3.4.2 Using reversed direction of transmission
Important information
NOTE
T
he direction of transmission of the system can be changed during installation by
switching the positions of the sender and receiver. The sender and receiver are easy to
exchange with each other if they are wired in the same way.
Using reversed direction of transmission
T
he direction of transmission of the system " can be changed during mounting by
switching the positions of the sender and receiver. With reversed direction of mounting,
the receiver " is not affected by the infrared light from the sender !.
Figure 16: Trouble-free operation due to reversed direction of transmission of system
1
and
system
2
Further topics
•
"Combining beam coding and reversed direction of transmission", page 30
PROJECT PLANNING 4
8027140/2021-11-04 | SICK O P E R A T I N G I N S T R U C T I O N S | deTec4
29
Subject to change without notice
