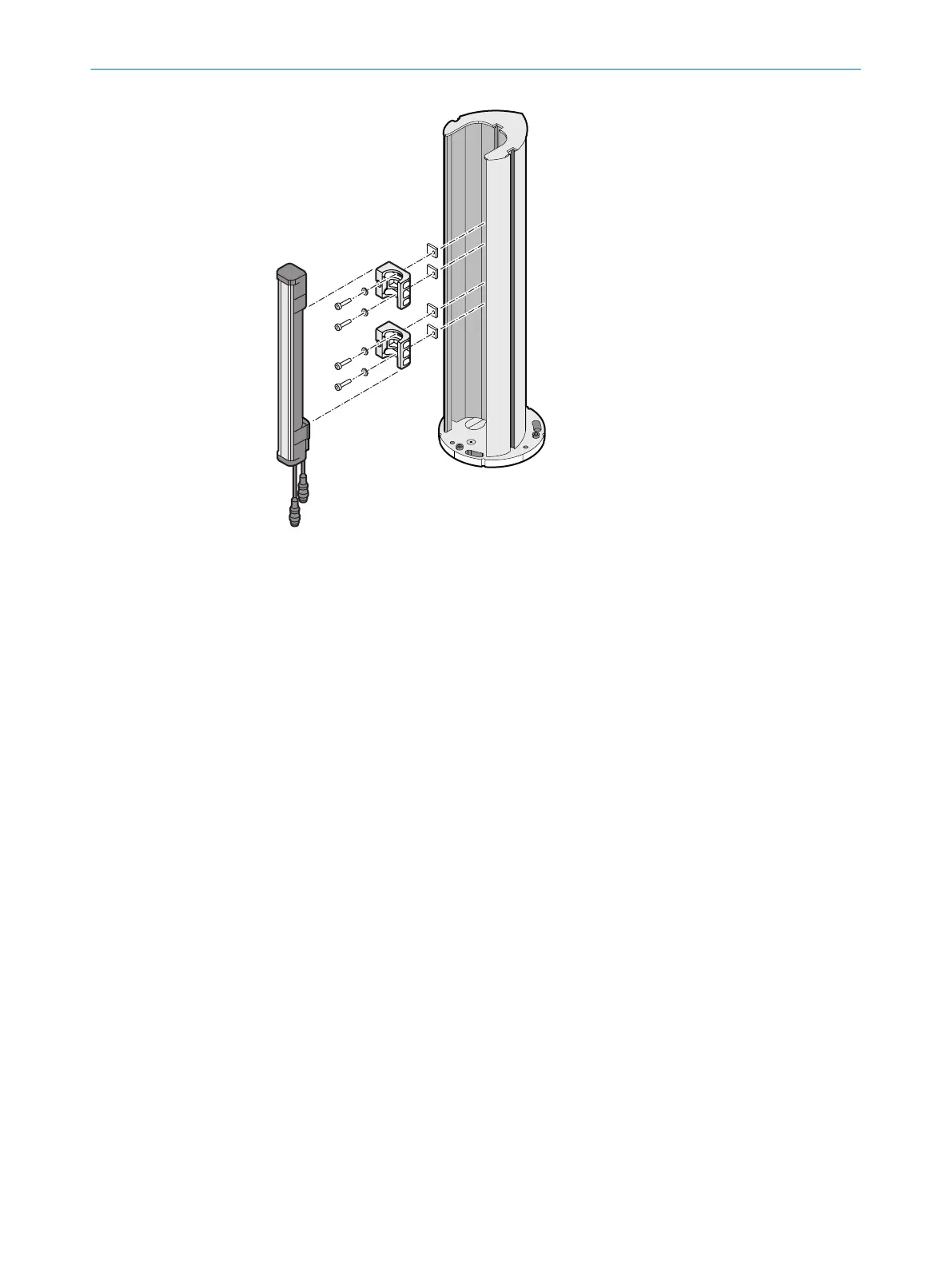

Figure 31: Mounting the FlexFix bracket to a device column (accessory)
Further topics
•
"Sender and r
eceiver alignment", page 59
5.4.3 Mounting the upgrade bracket
Overview
If an e
xisting C4000 safety light curtain is mounted with a swivel-mount bracket or
with a side bracket, it can be replaced with a deTec4 safety light curtain using a
replacement bracket. There is no need to drill new holes, since the existing ones can be
used for the replacement bracket.
Complementary information
A
dditional information for mounting a safety light curtain with a replacement bracket
can be found in the mounting instructions for the replacement bracket.
5 MOUN
TING
48
O P E R A T I N G I N S T R U C T I O N S | deTec4 8027140/2021-11-04 | SICK
Subject to change without notice
