SICK C4P-SA09031A00 User Manual

13.6 Dimensional drawings
30
56,8
L2
34
21,8
5
40,8
20,8
30,7
56,8
29,5
L1
110,1
41
14
56,8
34
4
13,8
12,8
30,7
41
L1
56,8

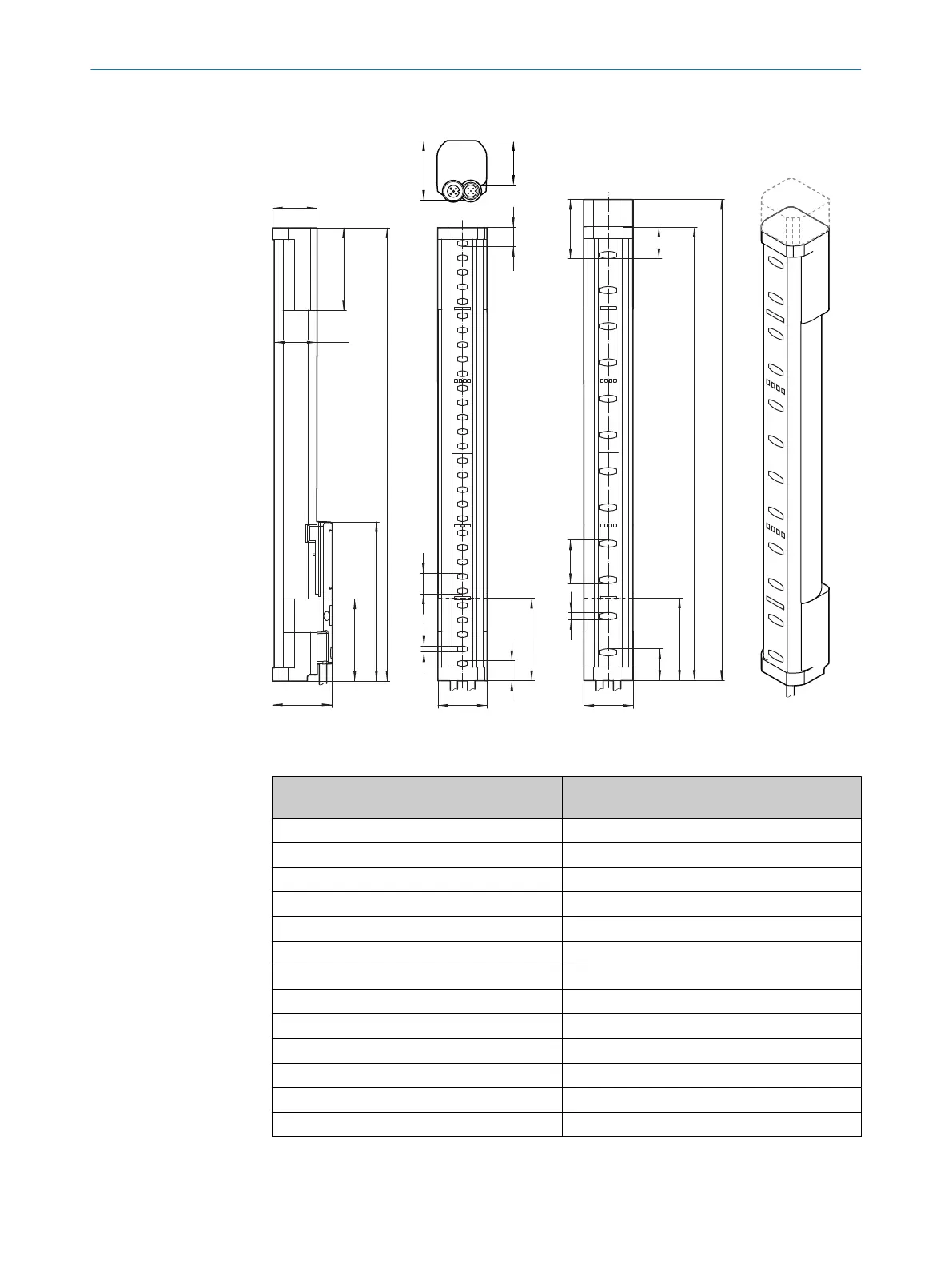

Figure 42: Dimensional drawing of sender and receiver
Table 37: Dimensions based on the protective field height, sender and receiver
Protective field height, nominal in mm Protective field height, effective = dimension
L1 in mm
300 313
450 463
600 613
750 763
900 913
1050 1063
1200 1213
1350 1362
1500 1512
1650 1662
1800 1812
1950 1962
2100 2112
13 TECHNICAL DATA
84
O P E R A T I N G I N S T R U C T I O N S | deTec4 8027140/2021-11-04 | SICK
Subject to change without notice
