CLV63x or CLV64x in IP69K protective housing, front reading window
50°
70 (2.76)
1
2
30
(1.18)
52.5
(2.07)
71.5 (2.81)
30.4
(1.20)
84 (3.31)
59 (2.32)
12.5
(0.49)
24
(0.94)
3
85 (3.35)
110 (4.33)
44
(1.73)
24
(0.94)
4
4

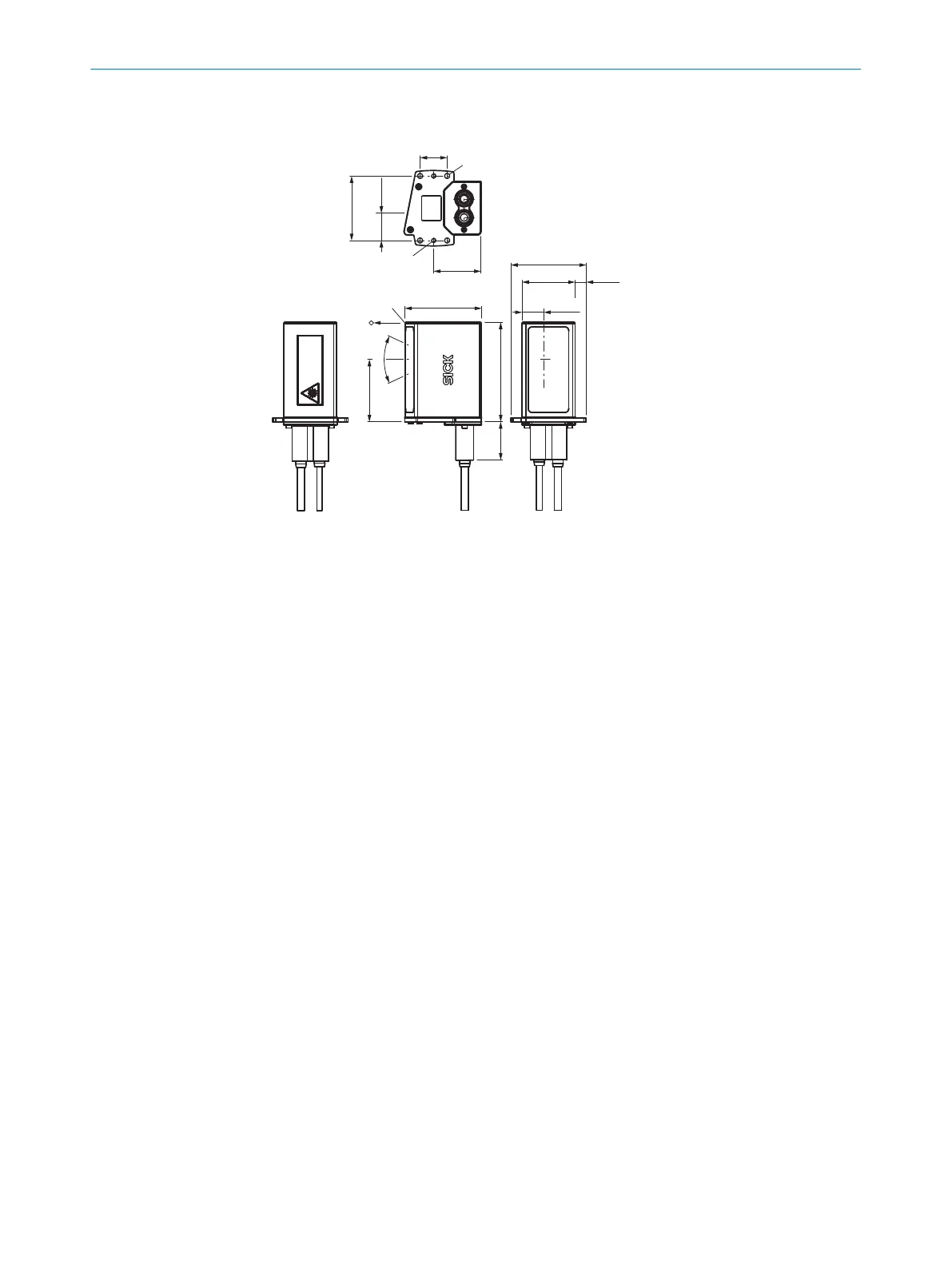

Figure 6: CLV63x / CLV64x: design and device dimensions of the IP69K protective housing with
front reading window (dimensions in mm or inch)
1
Fixing holes, dia. 5.5 mm (4 x)
2
“Ethernet” connection, female connector, M12, 4-pin, D-coded
3
“Power/Serial Data/CAN/I/O” connection, male connector, M12, 17-pin, A-coded
4
Threaded hole, M5 (2 x)
5
Reference point for reading distance (housing edge – object)
6
Light emission position (central position of the deflected laser beam)
7
Protective double bushing for the electrical connections
3 PRODUCT DESCRIPTION
12
T E C H N I C A L I N F O R M A T I O N | CLV62x, CLV63x and CLV64x with IP69K Protective Housing 8021479/0000/2018-03-12 | SICK
Subject to change without notice
