SICK CLV63 Series Technical Information

CLV63x or CLV64x with oscillating mirror in the IP69K protective housing, side reading
window
88.5 (3.48)
29.2
(1.15)
52.5
(2.07)
30
(1.18)
5
(0.20)
20°
20°
1
05°
71.5 (2.81)
30.4
(1.20)
121 (4.76)
120 (4.72)
44
(1.73)
70 (2.76)
50°
84 (3.31)
69 (2.72)
12.5
(0.49)
71 (2.80)
43
(1.69)
88.5 (3.48)
95 (3.74)
20
(0.79)
1
2
3
4
4

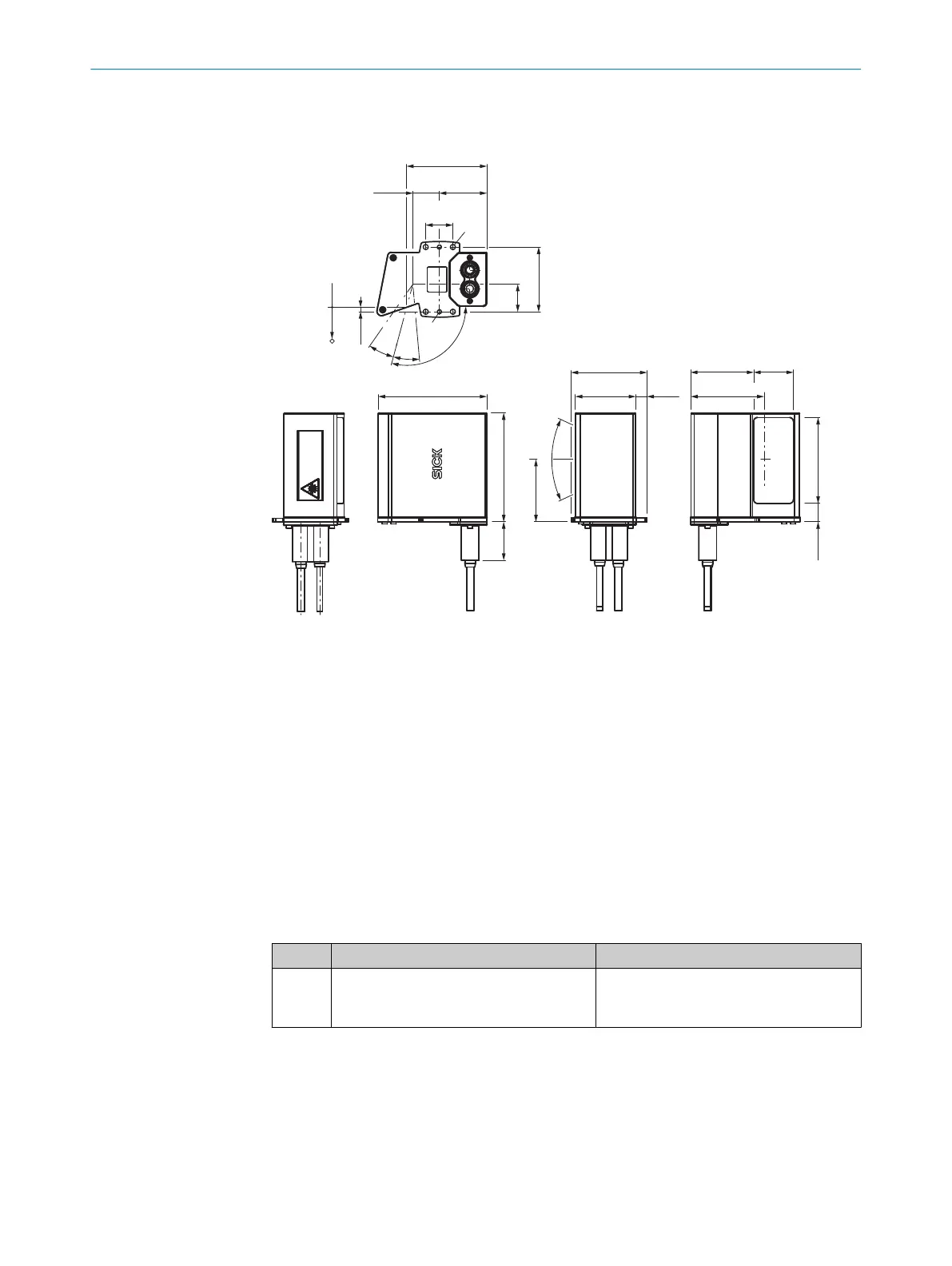

Figure 7: CLV63x / CLV64x with oscillating mirror: design and device dimensions of the IP69K
protective housing, side reading window (dimensions in mm or inch)
1
Fixing holes, dia. 5.5 mm (4 x)
2
“Ethernet” connection, female connector, M12, 4-pin, D-coded
3
“Power/Serial Data/CAN/I/O” connection, male connector, M12, 17-pin, A-coded
4
Threaded hole, M5 (2 x)
5
Reference point for reading distance (housing edge – object)
6
Light emission position (central position of the deflected laser beam and oscillating mirror
in central position)
7
Protective double bushing for the electrical connections
3.3 Scope of delivery
The scope of delivery of the device includes the following components:
Table 2: Scope of delivery
Item Component Description
1 Bar code scanner CLV62x, CLV63x or
CLV64x in the ordered version, in the
screwed IP69K protective housing
Both M12 connections fitted with protec‐
tive plug or cap.
PRODUCT DESCRIPTION 3
8021479/0000/2018-03-12 | SICK T E C H N I C A L I N F O R M A T I O N | CLV62x, CLV63x and CLV64x with IP69K Protective Housing
13
Subject to change without notice
