6.2 Prerequisites for safe operation of the device in a system
See operating instructions of the bar code scanner.
6.3 Pin assignment of the connections
1
43
2

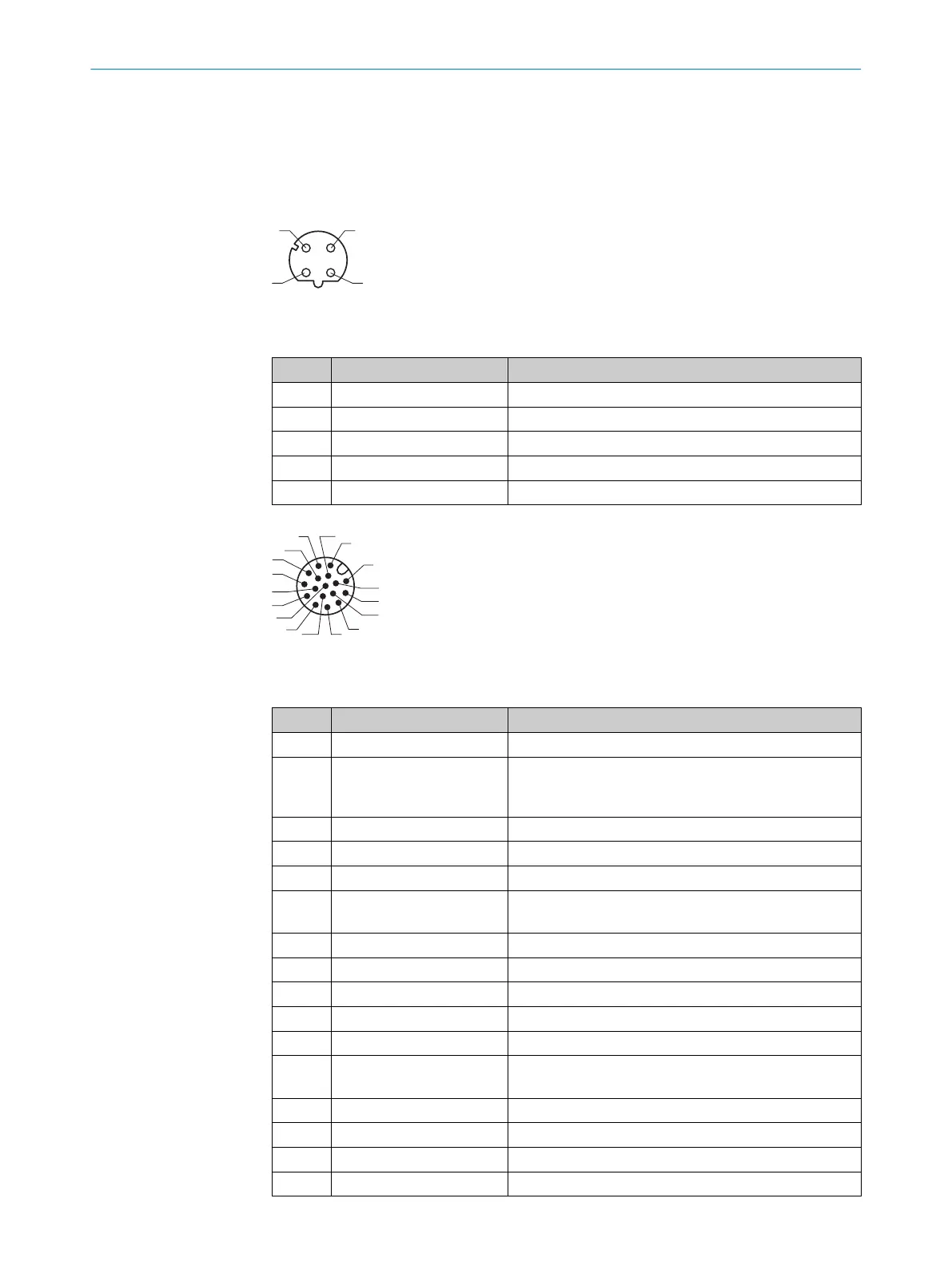

Figure 20: Female connector, M12, 4-pin, D-coded
Table 6: Ethernet version: Pin assignment on the 4-pin M12 female connector
Pin Signal Function
1 TD+ Sender+
2 RD+ Receiver+
3 TD– Sender–
4 RD– Receiver–
– – Shield
3
1
7
2
6
5
4
8
13
14
17
15
9
10
12
16
11
Figure 21: Male connector, M12, 17-pin, A-coded
Table 7: Ethernet version: Pin assignment on 17-pin M12 male connector
Pin Signal Function
1 GND Ground
2 CLV62x: DC 10 V ... 30 V
CLV63x, CLV64x:
DC 18 V ... 30 V
Supply voltage
3 CAN L CAN bus (IN/OUT)
4 CAN H CAN bus (IN/OUT)
5 TD+ (RS-422/485) Host interface (sender+)
6 TD– (RS-422/485);
TxD (RS-232)
Host interface (sender-)
7 TxD (AUX) AUX interface (sender)
8 RxD (AUX) AUX interface (receiver)
9 SensGND Switching input ground
10 Sensor 1 Digital switching input (external reading cycle)
11 RD+ (RS-422/485) Host interface (receiver+)
12 RD– (RS-422/485);
RxD (RS-232)
Host interface (receiver–)
13 Result 1 Digital switching output, function can be set
14 Result 2 Digital switching output, function can be set
15 Sensor 2 Digital switching input (external reading cycle)
16 – –
ELECTRICAL INSTALLATION 6
8021479/0000/2018-03-12 | SICK T E C H N I C A L I N F O R M A T I O N | CLV62x, CLV63x and CLV64x with IP69K Protective Housing
