2
O-ring 11.0 mm x 4.0 mm
3
Protective double bushing
4
Protective plug for unused Ethernet connection, female connector, Dose, M12, 4-pin, D-
coded
5
Protective housing, here for bar code scanners with front reading window
6
“Power/Serial Data/CAN/I/O” connection. male connector, M12, 17-pin, A-coded
7
O-ring 13.5 mm x 3.0 mm
8
Plug connector of connection cable
9
Connection cable for “Power/Serial data/CAN/I/O” connection
When delivered, both connections on the protective housing are equipped with a protec‐
tive cover.
Auxiliary equipment required
•
Lubricant such as Vaseline
1. Make sure that the protective plug of the Ethernet connection is securely tight‐
ened.
2. Guide connection cable through the protective double bushing. Seal the lower
feedthrough with the O-ring. Connect the connection cable at the protective hous‐
ing, see "Assembly with use of the Ethernet connection", page 20
3. Position O-ring 11.0 mm x 4.0 mm in the groove of the upper feedthrough of the
protective double bushing.
4. Close off the upper feedthrough of the protective double bushing with the supplied
dummy plug.

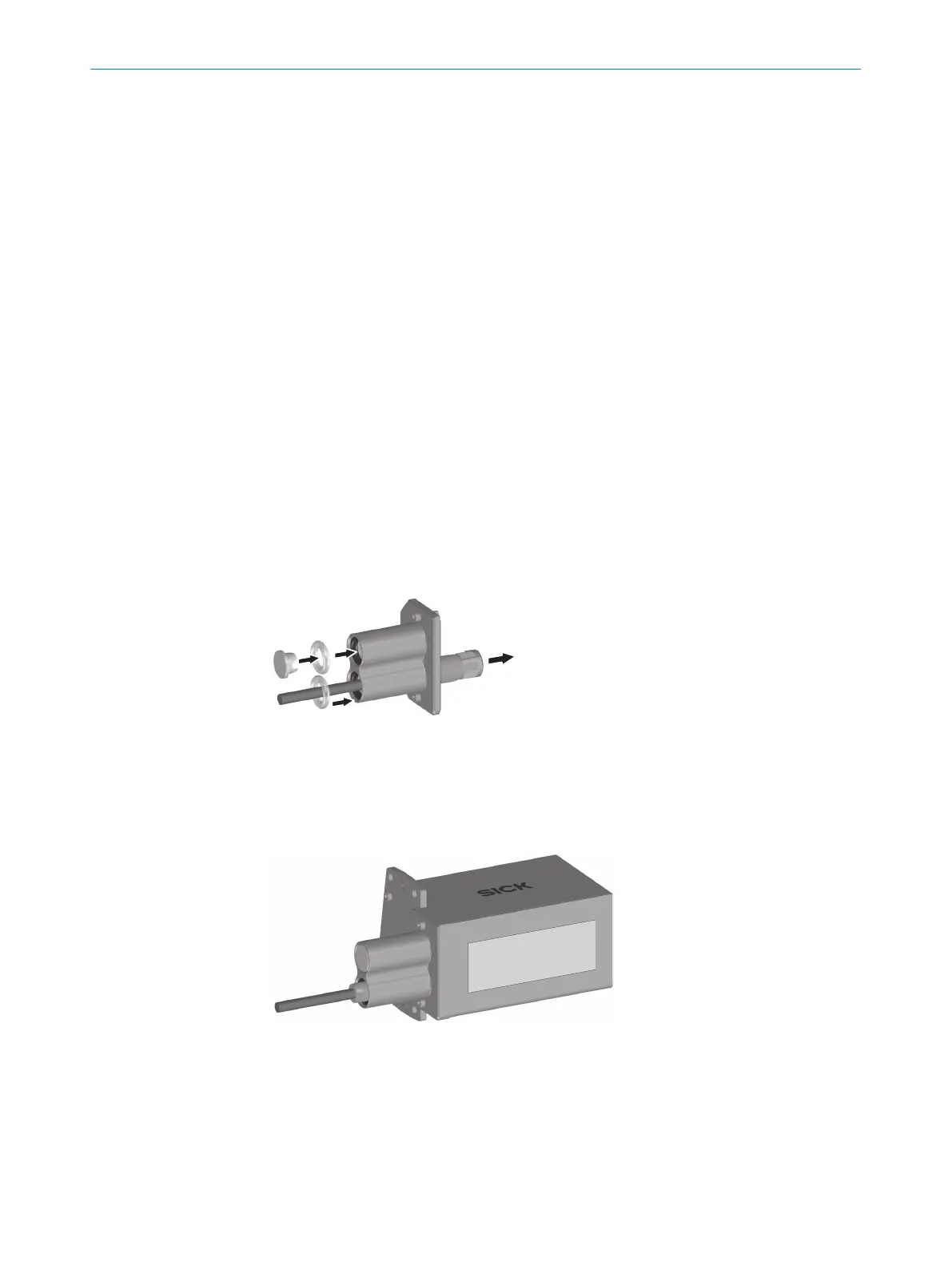

Figure 18: Assembly of IP69K protective housing, without use of the Ethernet connection –
dummy plug
5. Apply lubricant. Push protective double bushing over the plug connector and the
Ethernet connection. Mount the protective double bushing on the protective hous‐
ing, see "Assembly with use of the Ethernet connection", page 20
Figure 19: Assembly of IP69K protective housing, without use of the Ethernet connection
