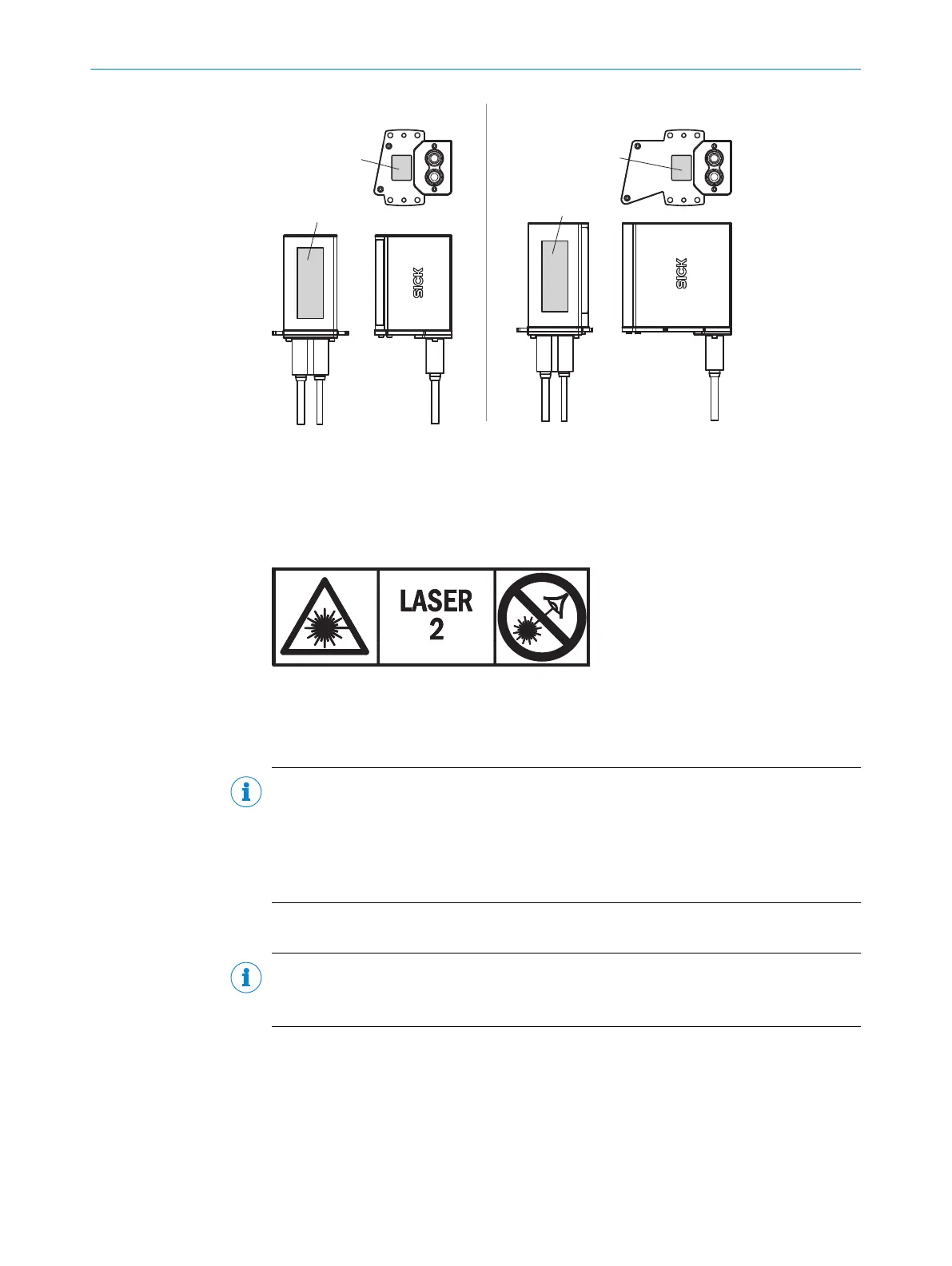

Figure 2: Position of type label and laser warning label on the IP69K protective housing
1
Bar code scanners CLV62x, CLV63x and CLV64x with front reading window
2
Bar code scanners CLV63x and CLV64x with oscillating mirror and side reading window
3
Position of the type label
4
Position of the laser warning label
Figure 3: Inhalt des Laserwarnschildes am Gerät
What the laser warning label means: Laser radiation – Never look into the light beam –
Laser class 2
NOTE
Additional laser warning label
If the laser warning label applied to the protective housing is concealed when the
device is installed into a machine or paneling, the laser beam output aperture must be
suitably labeled. For this purpose, an additional warning label of the same type must be
applied next to the output aperture.
Controlling the laser diode
NOTE
The CLV62x, CLV63x and CLV64x bar code scanners in IP69K protective housing do not
have an externally visible visual indicator (LED) for laser diode activity.
When operating properly, the device only switches the laser diode on if there is an
object in the reading area, or if a reading is required (cyclic reading operation).
A laser timeout can switch off the laser diode automatically in this type of object trigger
control if the pulse has stopped for too long (e.g. the conveyor system has stopped). In
this case, the current internal reading interval of the device remains open.
Irrespective of the selected configuration type, the laser timeout can be set as follows:
2 SAFETY INFORMATION
8
T E C H N I C A L I N F O R M A T I O N | CLV62x, CLV63x and CLV64x with IP69K Protective Housing 8021479/0000/2018-03-12 | SICK
Subject to change without notice
