SICK CLV69x User Manual

12.6.3 Standard Density: reading performance data, line scanner
a
b
c
Reading field height in mm
–200
200
–400
400
600
–600
0
400 700 1000 1300 1600 1900 2200
Reading distance in mm
Resolution
a: 0.30mm
c: 0.50mm
b: 0.35mm

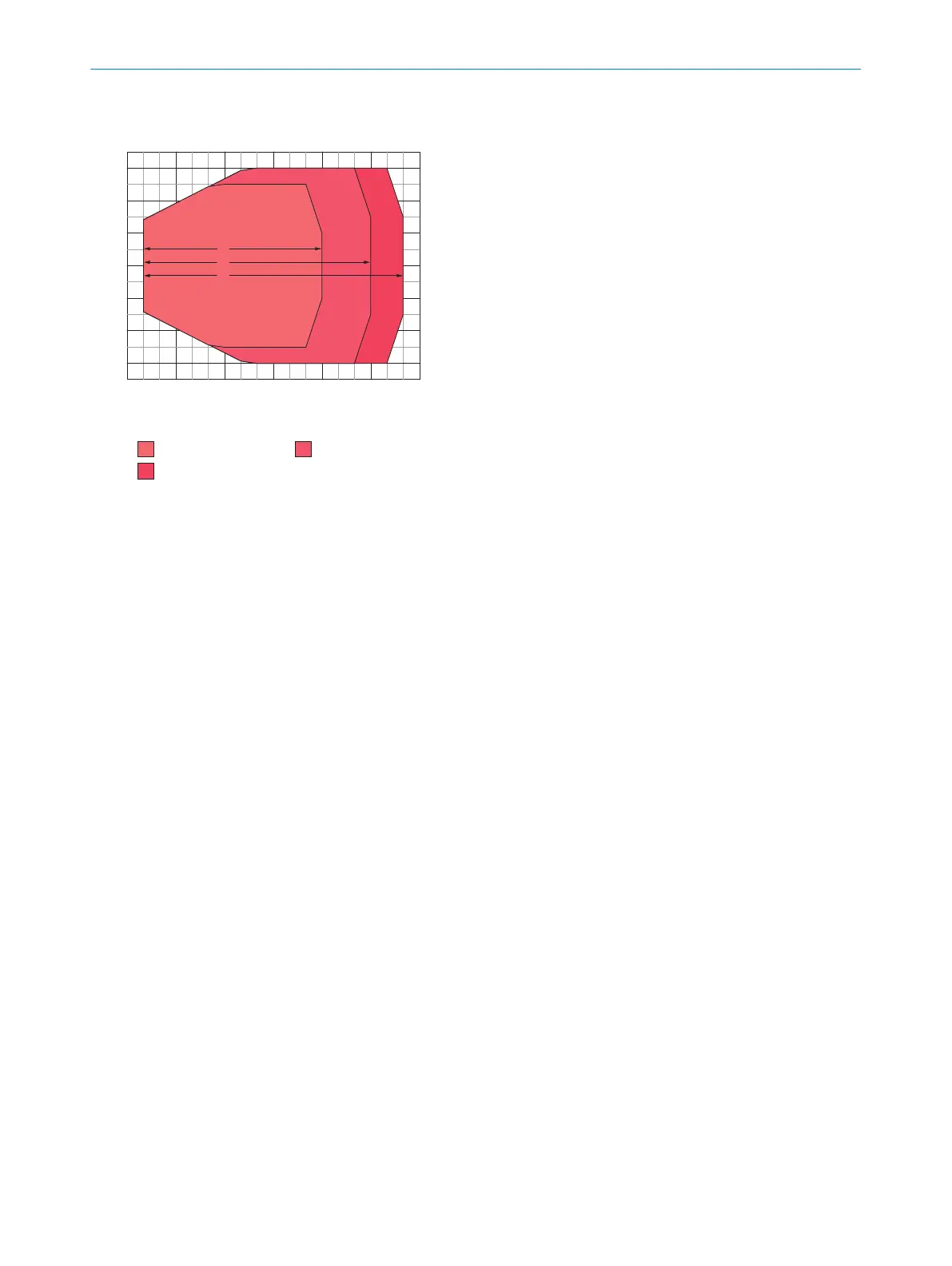

Figure 82: CLV690-0xxx (Standard Density): reading field height depending on the reading distance and resolution
12 TECHNICAL DATA
100
O P E R A T I N G I N S T R U C T I O N S | CLV69x 8014396/ZMG8/2017-07-04 | SICK
Subject to change without notice
