12.6.5 Low Density: reading performance, line scanner
Reading field height in mm
–200
200
–400
400
600
800
–600
–800
0
400 700 1000 1300 1600 1900 2200
Reading distance in mm
Resolution
a: 0.50mm
a
Tilt ± 15°, typical specification

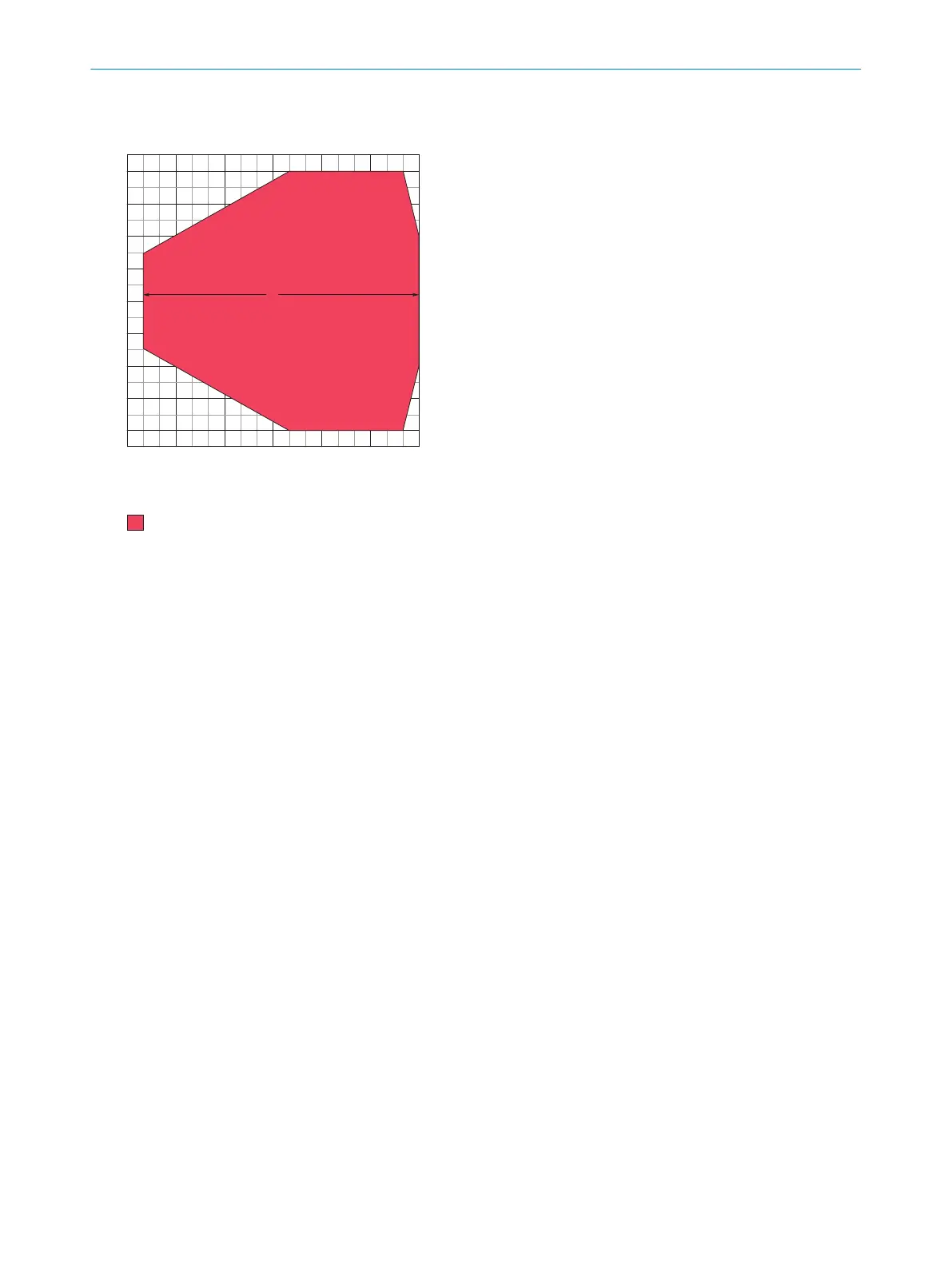

Figure 95: CLV691-0xxx (Low Density): reading field height depending on the reading distance and tilt with resolution 0.5 mm
TECHNICAL DATA
12
8014396/ZMG8/2017-07-04 | SICK O P E R A T I N G I N S T R U C T I O N S | CLV69x
111
Subject to change without notice
