In application areas with heavy vibrations or subjected to shocks caused by oscillations,
jolting or abrupt changes in movement (e.g. when mounting onto a manned forklift
truck), mounting must be carried out using shock mounts. Suitable shock mounts are
available as accessories.
Appropriate brackets with shock absorbers can be found e.g. in the product catalog
under:
b
www.sick.com/clv69x
During mounting of a bracket with shock mount, it must be ensured that the holding
plate/the mounting bracket is screwed directly to the device and the shock attenuation
is applied as close as possible to the device. The shock mounts must always be
mounted horizontally over the scanner in order to achieve an optimum shock absorp‐
tion.

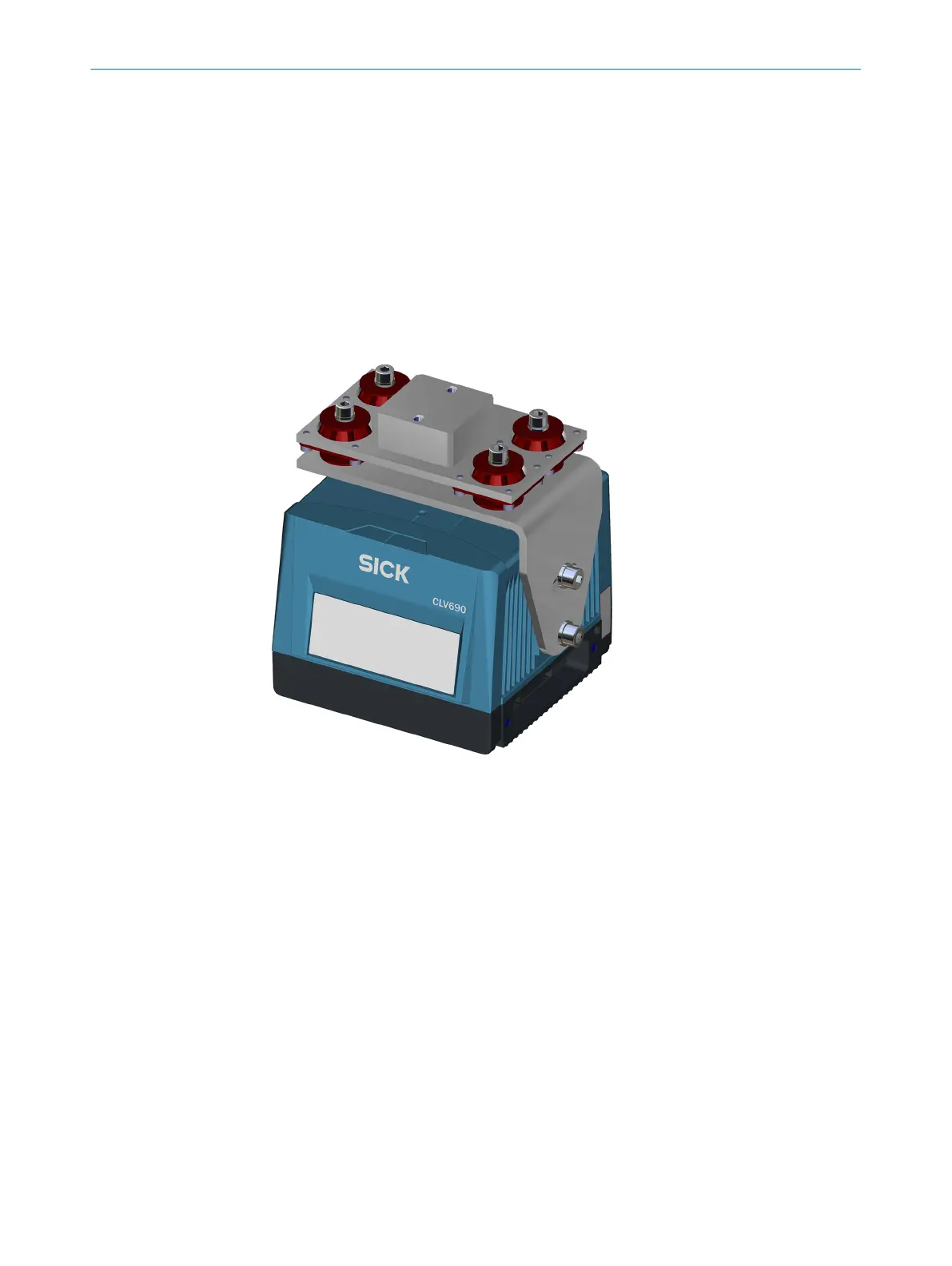

Figure 17: Angle bracket with shock mount
During mounting of an oscillating mirror device, the mounting bracket with integrated
vibration/shock attenuation is not mounted horizontally above the scanner, but verti‐
cally to the side on the device.
MOUNTING
5
8014396/ZMG8/2017-07-04 | SICK O P E R A T I N G I N S T R U C T I O N S | CLV69x
27
