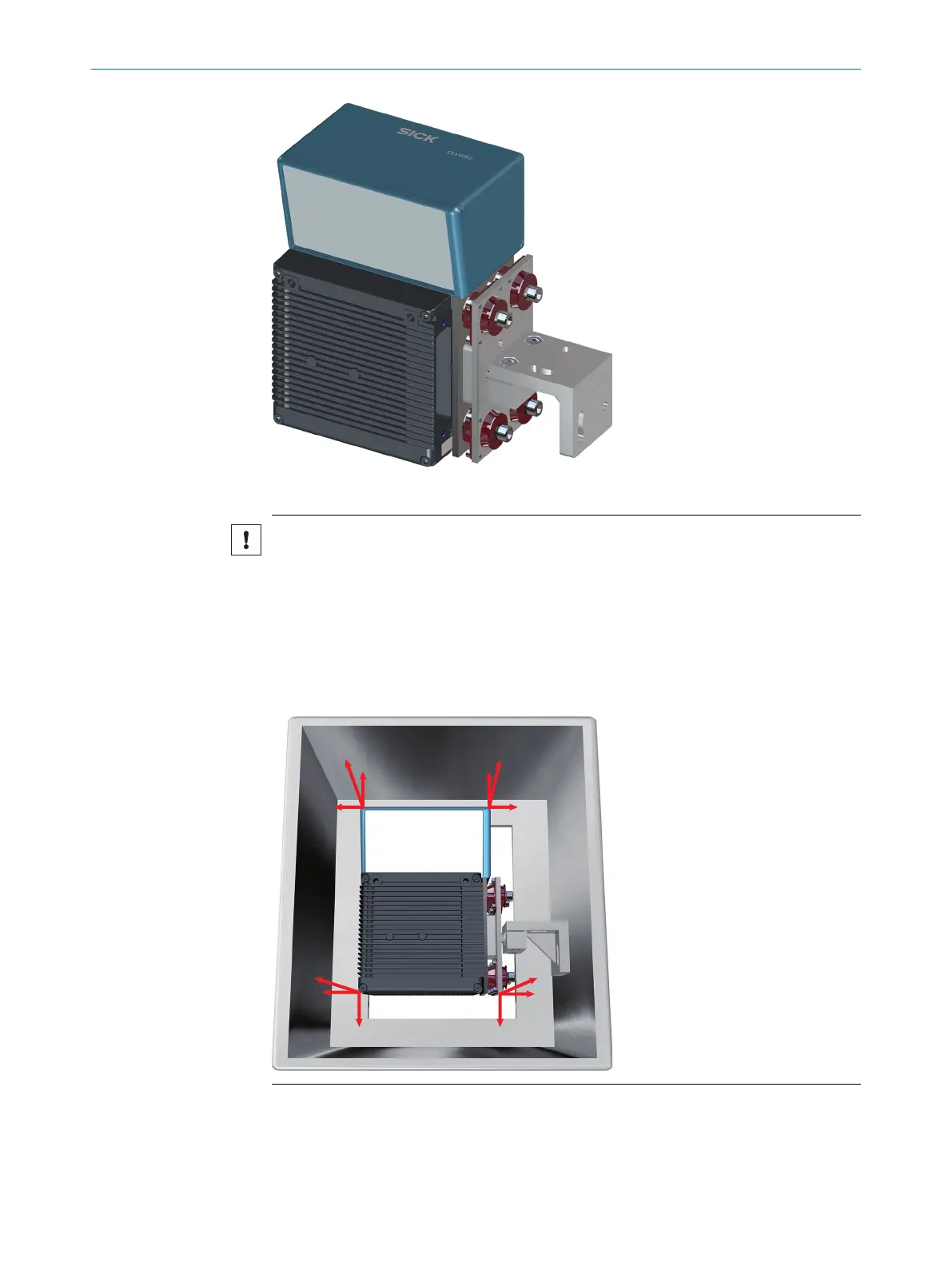

Figure 18: Shock mount with ball joint mounting on oscillating mirror device
NOTICE
Risk of damaging the device!
In order to prevent damage during mounting and subsequent operation of the device,
the following points must be observed:
b
Use screws of suitable length.
b
Consider a travel of at least 25 mm in all axis directions of the device. This applies
in particular in the event of slanting installation.
b
Set the length of the feed lines according to the travel in order to ensure strain
relief.
Permissible installation variants
Three installation variants are permitted:
1 Mounting of line scanner (horizontal reading line), mounting bracket with inte‐
grated vibration/shock attenuation
5 MOUNTING
28
O P E R A T I N G I N S T R U C T I O N S | CLV69x 8014396/ZMG8/2017-07-04 | SICK
Subject to change without notice
