SICK DT1000 User Manual

6.2.2 Analog output
M
R
LA
Q
A

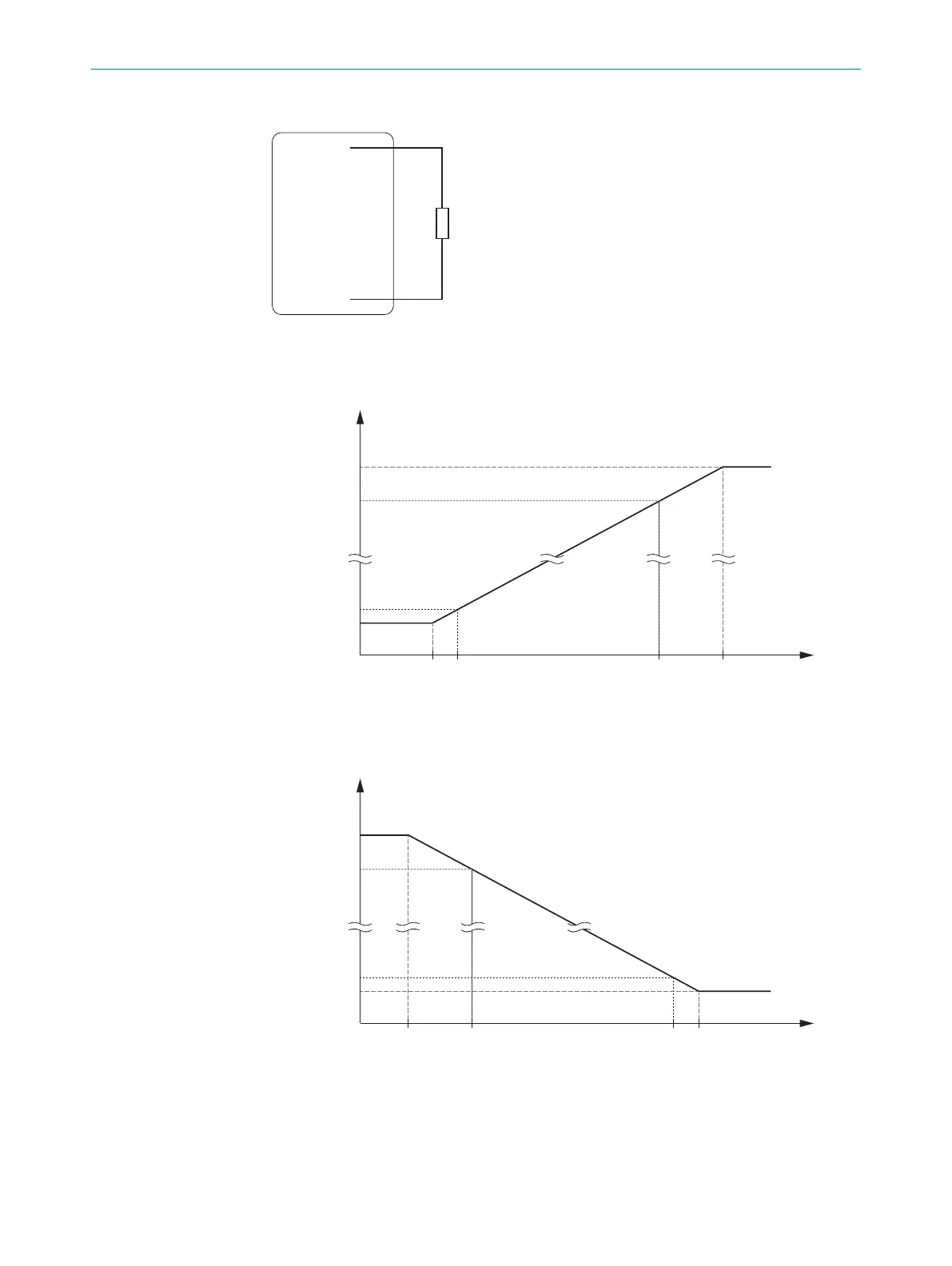

Figure 18: Analog output simplified diagram
The current output signal is scaled using the settings of the distance values for 4 mA
and 20 mA (see "Operation", page 47).
Distance
Output current
in mA
20.5
20.0
4.0
3.8
1 2
Figure 19: Current output signal, 20 mA distance value is greater than the 4 mA distance value
1
Distance value for 4 mA
2
Distance value for 20 mA
Distance
Output current
in mA
20.5
20.0
4.0
3.8
1 2
Figure 20: Current output signal, 20 mA distance value is less than the 4 mA distance value
(inverted current output signal)
1
Distance value for 20 mA
2
Distance value for 4 mA
6 ELECTRICAL INSTALLATION
44
O P E R A T I N G I N S T R U C T I O N S | DT1000 and DL1000 8019329/12TZ/2019-03-28 | SICK
Subject to change without notice
