Parameter Factory setting
Axial object tracking:
Measuring object moves along the laser beam axis
Axial object tracking
Lateral entry of the object
Measuring object moves diagonally to the laser beam axis
8.1.2 Defining the measurement cycle time
The measurement cycle time defines the intervals at which measurements are made.
The measurement cycle time designates the processing time of the distance sensor's
measuring core.
A larger measurement cycle time results in an increase in the measuring range of the
sensor and a reduction in signal noise. The sensor´s response time, however,
increases. Shortening the measurement cycle time results in a faster response time.
However, this increases the signal noise and decreases the measuring range, see
"Technical data", page 95.

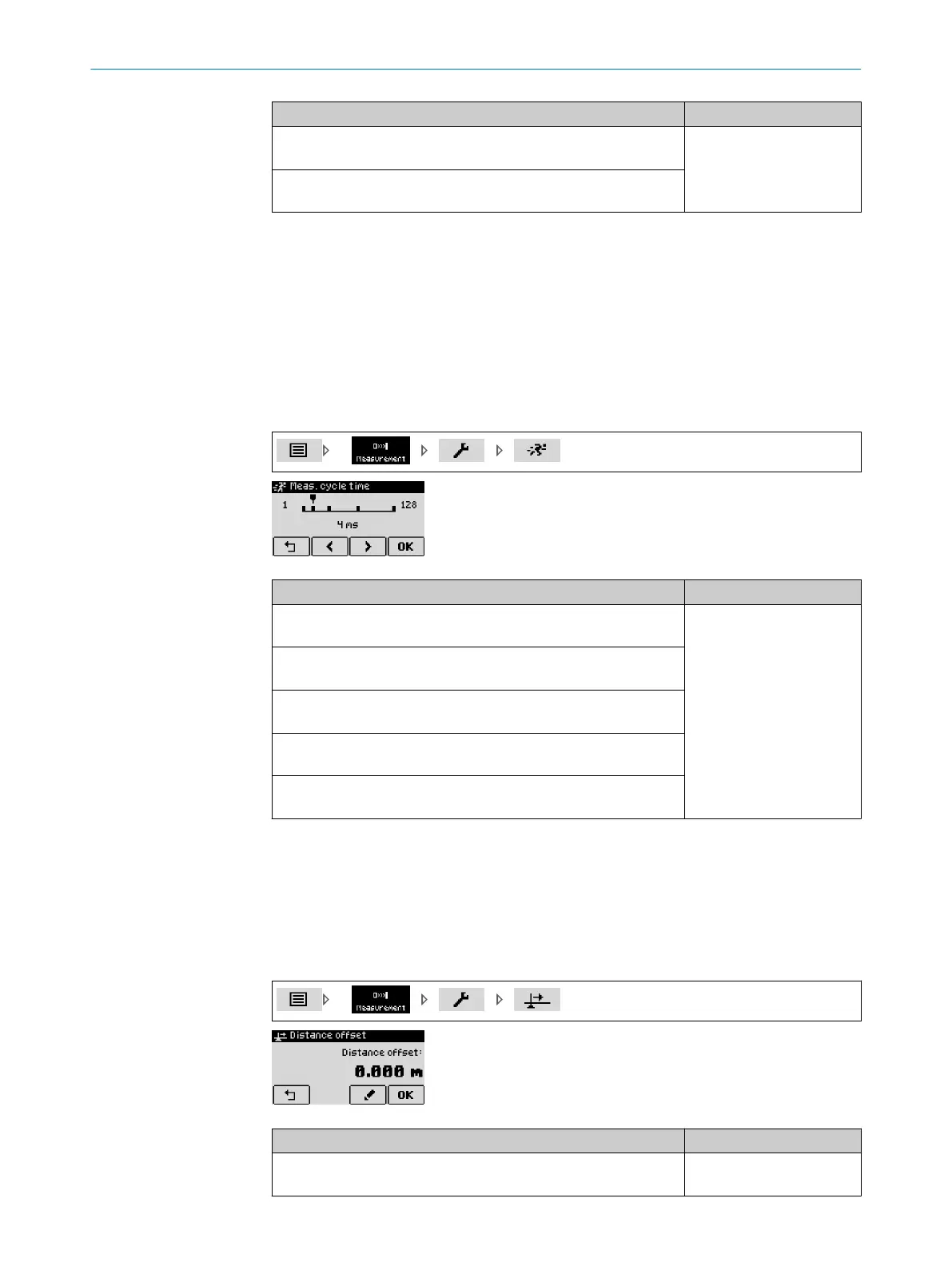

Parameter Factory setting
1:
1 ms
4 ms
4:
4 ms
16:
16 ms
64 (only DT1000):
64 ms
128 (only DT1000):
128 ms
8.1.3 Defining the distance offset
The distance value the distance sensor outputs on its interface and the distance value
that is evaluated in the switching functions is the same as the actual distance between
the distance sensor and measuring object plus the distance offset:
Output distance value = measured distance value x measuring direction + distance off‐
set
Parameter Factory setting
Distance offset:
-4500 m to 4500 m
0 m
8 REFERENCE
54
O P E R A T I N G I N S T R U C T I O N S | DT1000 and DL1000 8019329/12TZ/2019-03-28 | SICK
Subject to change without notice
