SICK DT1000 User Manual

Light beams in opposite directions
s
m
a
x
.
a
1
2
1
2
3
4
1
2
3
4
1
2

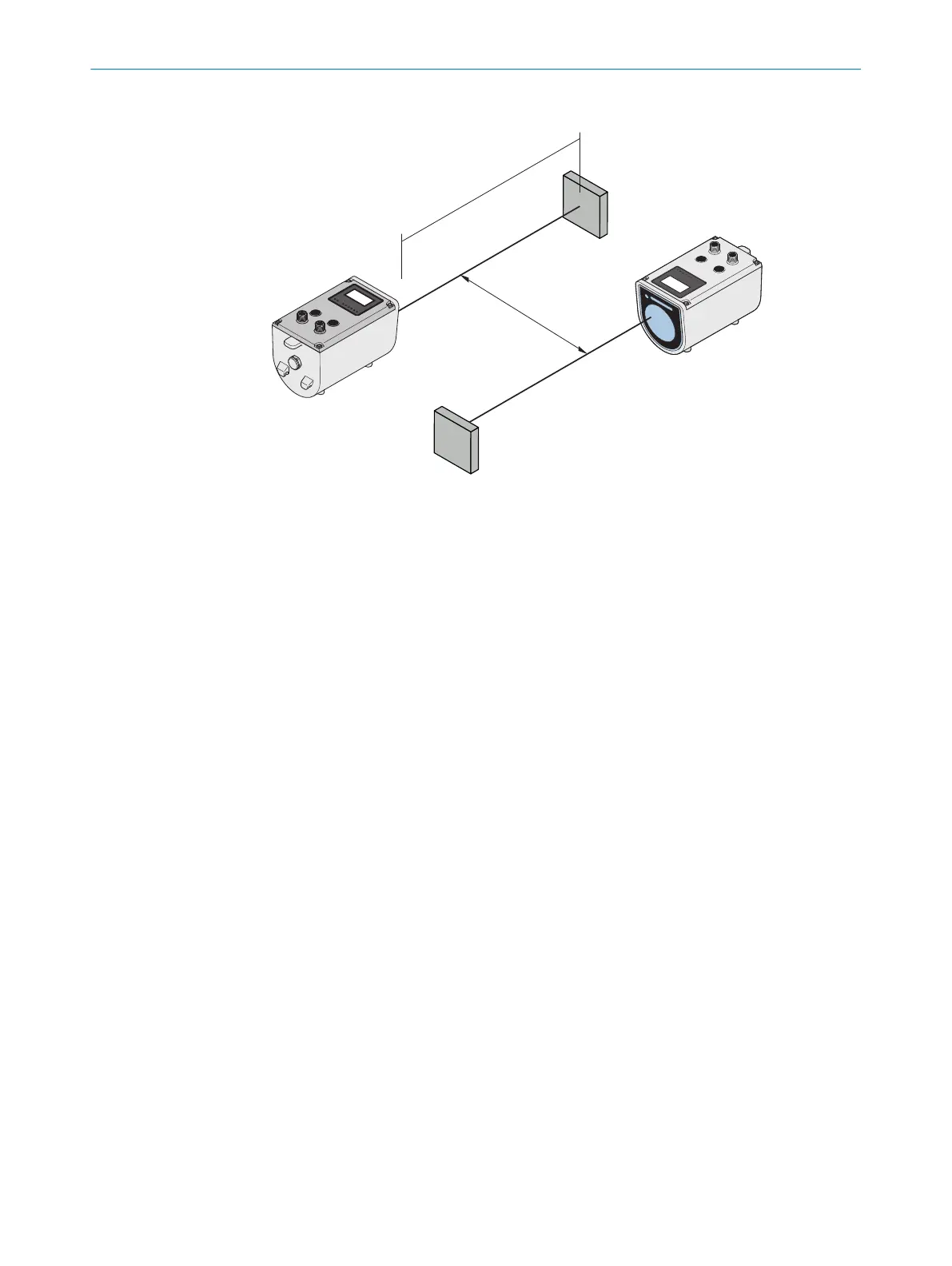

Figure 11: Placement of two DT1000 units with light beams in the opposite direction
1
DT1000
2
Measuring object (natural object)
a Minimum distance
s
max
Maximum measurement distance
Formula
a ≥ 0.2 m + 0.004 x s
max
[m]
Example
■
s
max
: 200 m
■
Calculation: a ≥ 0.2 m + 0.004 x 200 m = 1 m
5.6 Mounting the alignment bracket and distance sensor
The distance sensor is mounted using the optional alignment bracket BEF-AH-DX1000
(part number 2080392).
1. Mount the alignment bracket above the four slotted holes. The alignment bracket
is suitable for mounting on horizontal and vertical surfaces.
MOUNTING 5
8019329/12TZ/2019-03-28 | SICK O P E R A T I N G I N S T R U C T I O N S | DT1000 and DL1000
37
Subject to change without notice
