7 Operation
7.1 Operating concept
The device is operated via a resistive touch display and is described in the following.
NOTICE
Damage to the display due to improper operation!
The display reacts to pressure.
•
Only use the tip of your finger or a suitable pointing device to operate the touch
display.
•
Do not use a tool.
NOTE
Alternatively, the device can be configured using the SOPAS ET user interface (PC) (via
Ethernet). For additional information visit:
•
www.sick.com/SOPAS_ET
If no inputs are made for a duration of 15 min, the display is automatically dimmed.
Pressing on the display area once increases the brightness.
7.1.1 Main display level

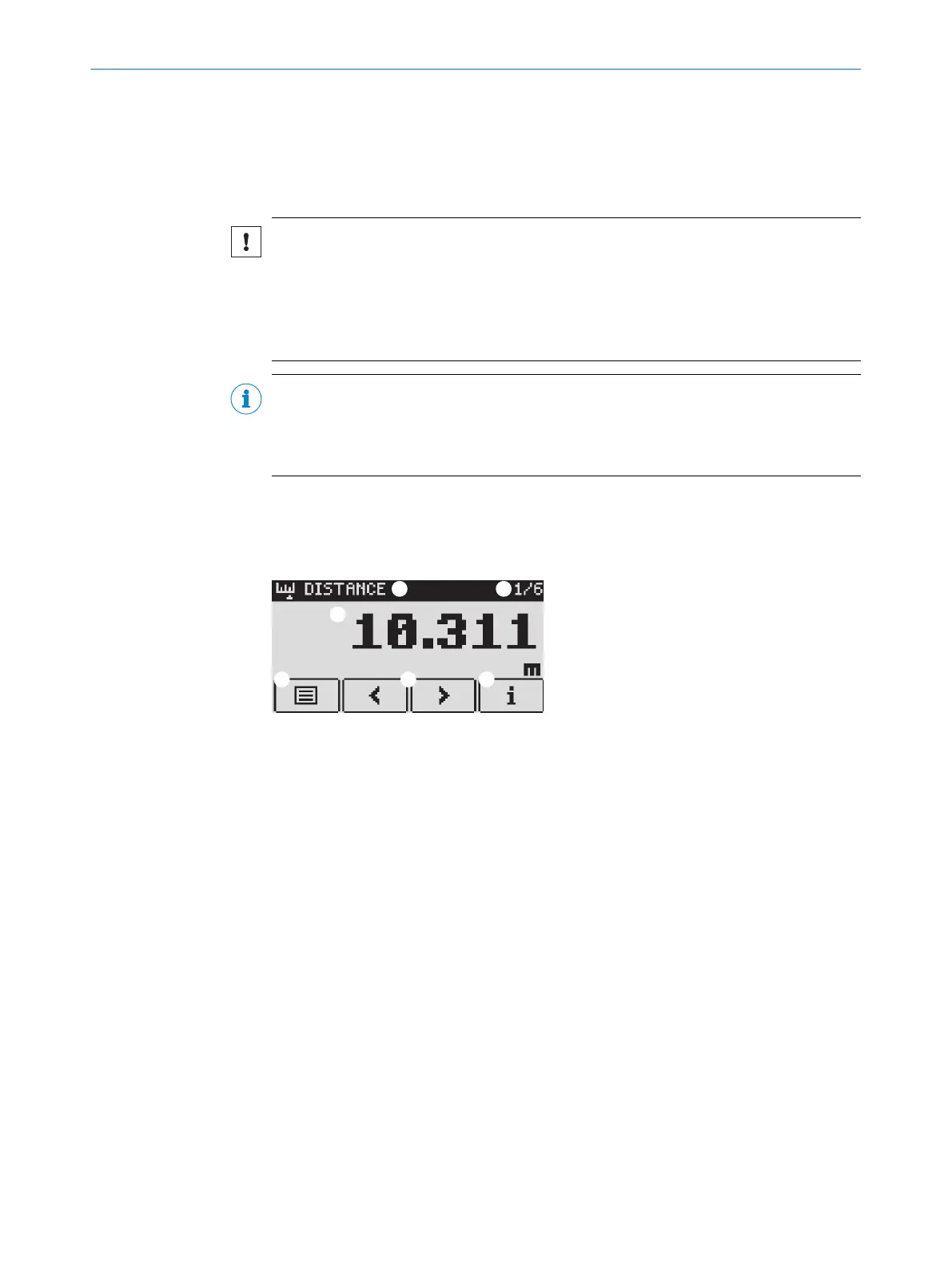

Figure 22: Main display level
1
Selected display or menu element
2
Number of available display or menu elements on this level (1 of 6)
3
Display of values or parameters
4
Menu button
5
Buttons for switching between the displays
6
Button for displaying device status
In the main display level, various measured values and information on the device status
are available.
The arrow buttons are used for switching between the individual displays. Pressing and
holding the menu button down switches to the main menu.
OPERATION 7
8019329/12TZ/2019-03-28 | SICK O P E R A T I N G I N S T R U C T I O N S | DT1000 and DL1000
47
Subject to change without notice
