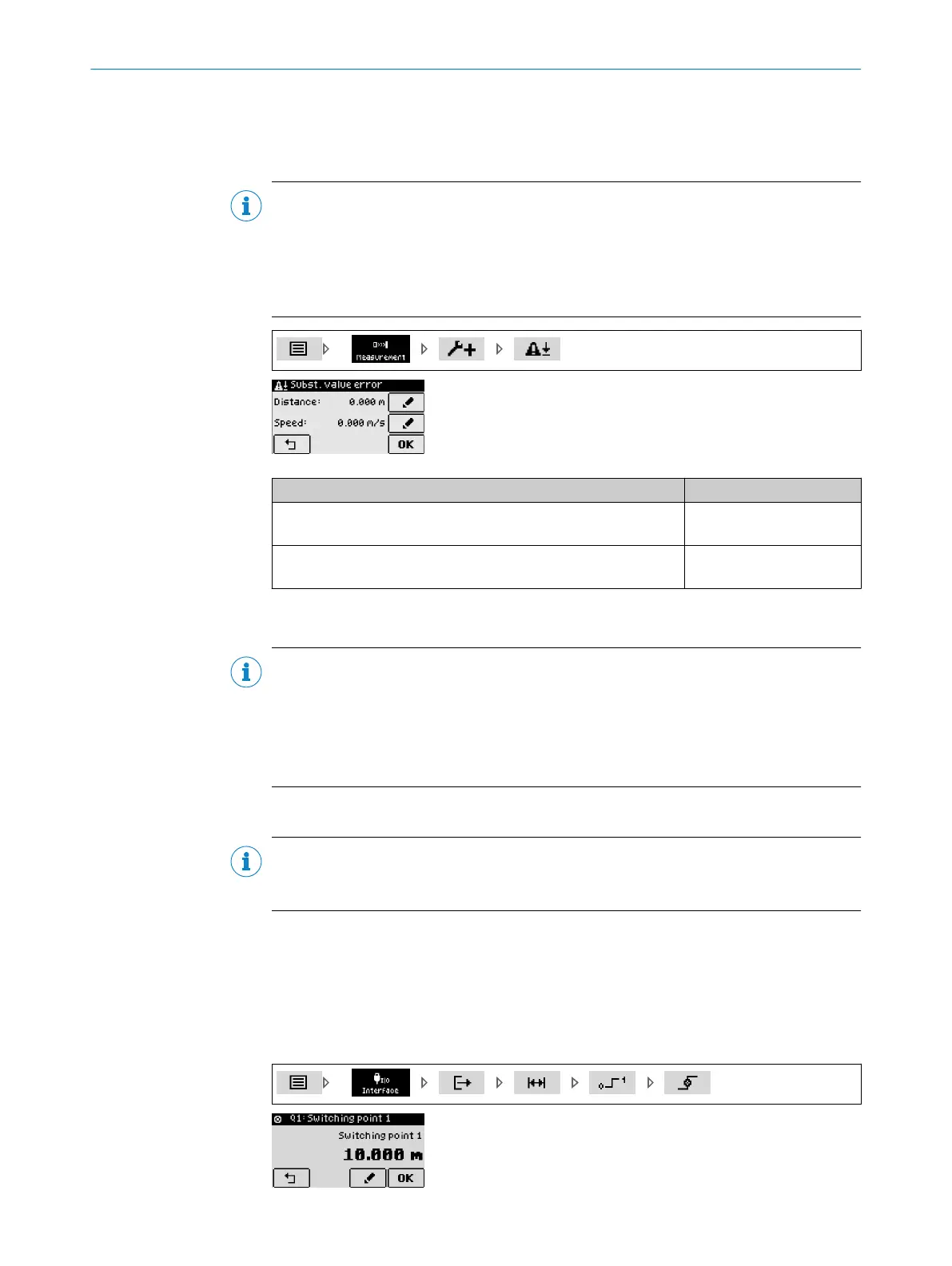

8.2.10 Behaviour on error
If an error occurs (see "Troubleshooting", page 92), a user defined substitute value is
output without a delay time.
NOTE
The -6096,000 m and 6096,000 m (-20000,000 ft and 20000,000 ft) distance substi‐
tute values have a special meaning. These values generate NAMUR failure information
on the analog output (3.0 mA/21.5 mA).
The distance substitute values can be selected directly in the numeric input editor by
pressing the “1” or “4” buttons for a long time.
Parameter Factory setting
Distance:
-6096.000 m ... 6096.000 m
0 m
Speed:
-20 m/s to 20 m/s
0 m/s
8.3 Interface menu group
NOTE
The following procedure is recommended for configuration:
1 Define input/output to be parameterized.
2 Make selection: In/Q1 as digital input or digital output.
3 Make selection: QA/Q2 as analog output or digital output
4 Configure inputs/outputs.
8.3.1 Defining the switching point for distance value (distance to object)
NOTE
The procedure for configuring switching outputs Q1 through Q4 is identical. The configu‐
ration is illustrated on switching output Q1.
The switching state is active if the distance output value is smaller than the switching
point.
The switching point SP designates the distance value at which the switching event is
triggered (see "Switching functions", page 16).
The switching point value refers to the output distance value = measurement direction
x measured distance value + distance offset.
REFERENCE 8
