SICK DT80 IO-Link User Manual

Min. Max.
2
1
Distance 3
20.5
20.0
4.0
3.5
mA

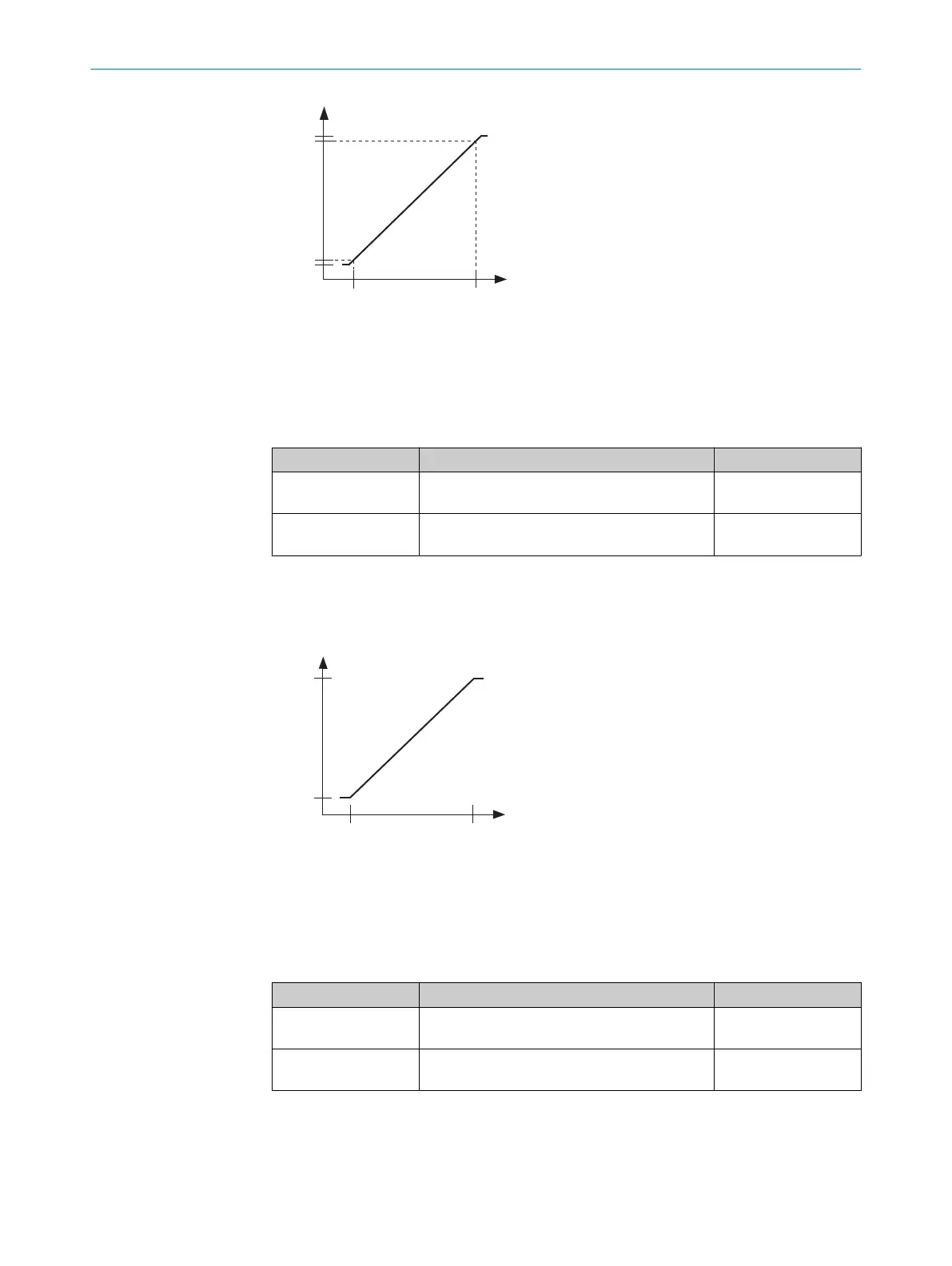

Figure 8: 4-20 mA output function
1
Distance for 4mA
2
Distance for 20mA
3
Distance
Parameter Values Factory setting
Teach In 4mA value or
Edit 4mA value
50mm … 80,000mm 1,000mm
Teach In 20mA value or
Edit 20mA value
50mm … 80,000mm 5,000mm
Voltage (voltage output)
Output Q2 is an analog voltage output. The measured value is output in the form of a
linear voltage value.
10.0
0
Min. Max.
V
2
1
Distance 3
Figure 9: Output function 0-10V
1
Distance for 0V
2
Distance for 10V
3
Distance
Parameter Values Factory setting
Teach In 0V value or Edit
0V value
50mm … 80,000mm 1,000mm
Teach In 10V value or
Edit 10V value
50mm … 80,000mm 5,000mm
OPERATION 7
8028220.1N23/2024-05-24 | SICK O P E R A T I N G I N S T R U C T I O N S | DT80 IO-Link
29
Subject to change without notice
