SICK DT80 IO-Link User Manual

0
Typ. repeatability in mm (inch) 1
0
Distance in m (ft) 2
2
(6.6)
4
(13.1)
6
(19.7)
8
(26.2)
10
(32.8)
12
(39.4)
14
(45.9)
16
(52.5)
0.50
(0.02)
1.00
(0.04)
1.50
(0.06)
2.00
(0.08)
2.50
(0.10)
3.00
(0.12)
3.50
(0.14)
4.00
(0.16)
a: 33 ms
b: 50 ms
c: 100 ms
d: 200 ms
d
c
b
a

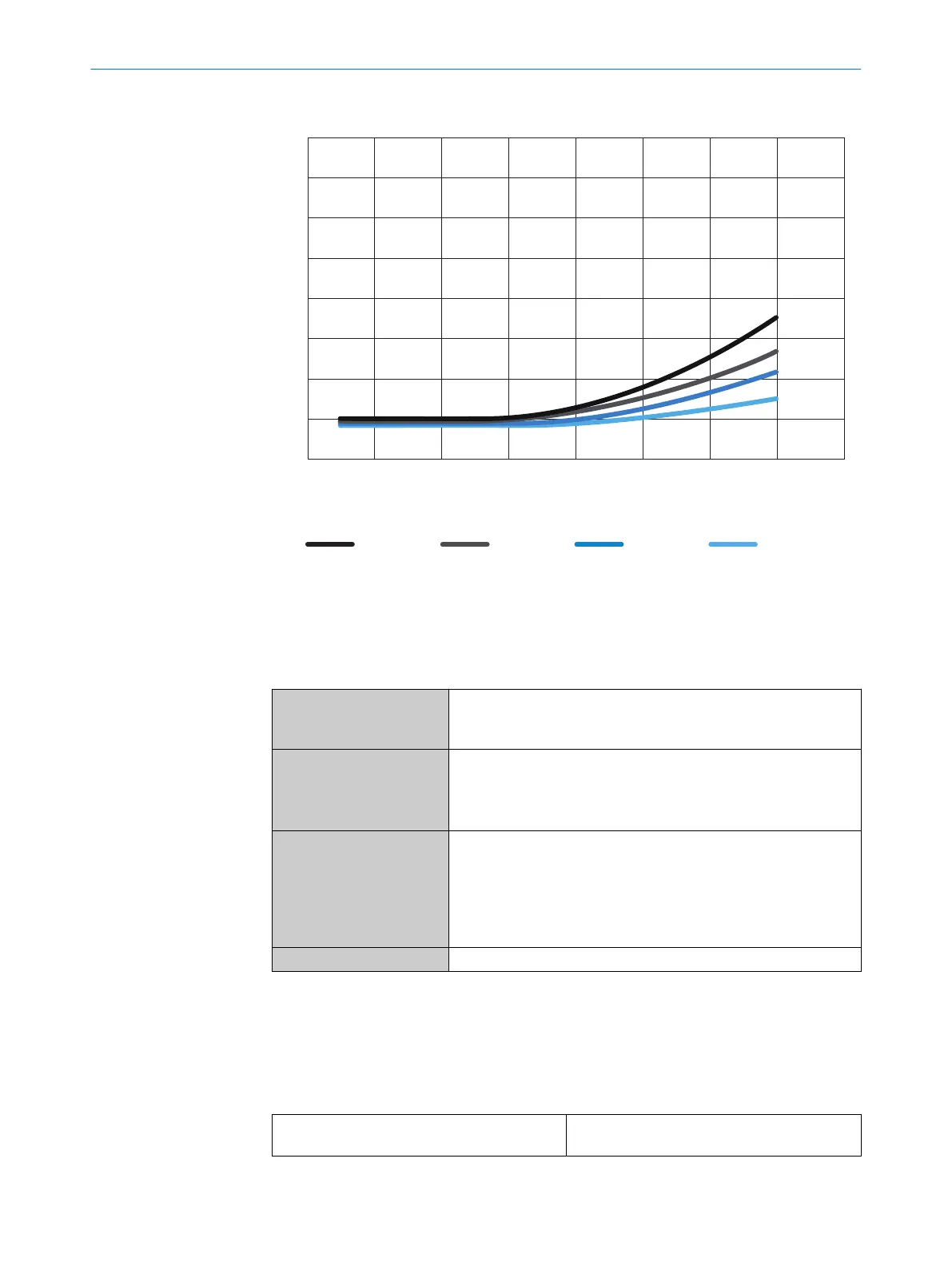

Figure 13: Repeatability at 6% remission, 30,000lux
1
Typical repeatability in mm (inches)
2
Distance in meters (feet)
11.2 Interfaces
IO-Link IO-Link V1.1, COM3 (230.4kBaud)
Function: Process data, parameterization, diagnostics, data stor‐
age
Digital output Quantity: 1 ... 2
1)
,
2)
,
3)
Type: Push-pull (PNP/NPN)
Function: Selectable
Maximum output current I
A
: ≤100mA
Analog output Quantity: 1
Type: Current output/voltage output
Function: Selectable
Electrical current: 4mA ... 20mA, ≤450Ω
Electrical voltage: 0V ... 10V, ≥10kΩ
Resolution: 16bit
Digital input (In1) Quantity: 1
4)
1)
Output Q, short-circuit protected
2)
Voltage drop <3V
3)
Max. total output current <200mA
4)
Response time depends on the measurement cycle time
11.2.1 IO-Link technical data
Table 15: Communication interface
Maximum cable length between IO-Link Master
and IO-Link device
20m
11 TECHNICAL DATA
40
O P E R A T I N G I N S T R U C T I O N S | DT80 IO-Link 8028220.1N23/2024-05-24 | SICK
Subject to change without notice
