SICK DT80 IO-Link

11.5 Dimensional drawing
LNK
Q2
Q1
PWR
3
1
2
4
5
4
57.04 (2.25)
Ø 4.5 (0.18)
3 (0.12)11.07 (0.44)
45.97 (1.81)
135°
93°
45°
3
(0.12)
Ø 4.5 (0.18)
33 (1.30)
65 (2.56)
42.75 (1.68)
31.17 (1.23)
19.84 (0.78)
16.5 (0.65)
300 (11.81)

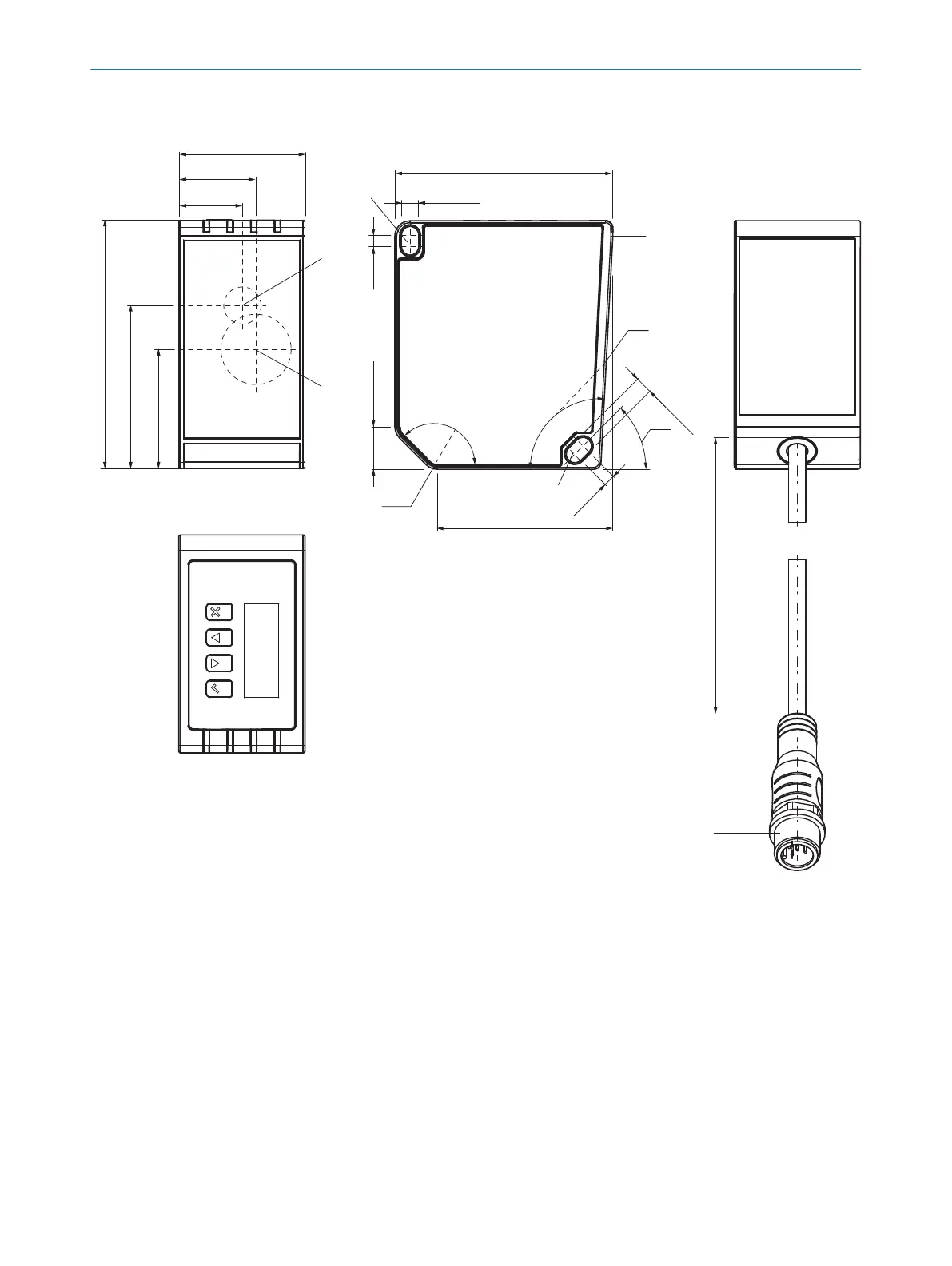

Figure 14: Dimensional drawing for DT80 IO-Link; All dimensions in mm (inch), decimal separator: point
1
Optical axis, sender
2
Optical axis, receiver
3
Device zero point (corresponds to distance 0mm)
4
M4 mounting holes
5
Connection cable with male connector M12, 5-pin, A-coded
11 TECHNICAL DATA
42
