3.3 Product characteristics
3.3.1 Setup and dimensions
1 2
3
3
3
3
6
1 2
4
5
20.81
(0.82)
19.47
(0.77)
40.28 (1.59)
43.8 (1.72)
29.6 (1.17)
13.9
(0.55)
25 (0.98)
50 (1.97)
40.28 (1.59)
20.81
(0.82)
19.47
(0.77)

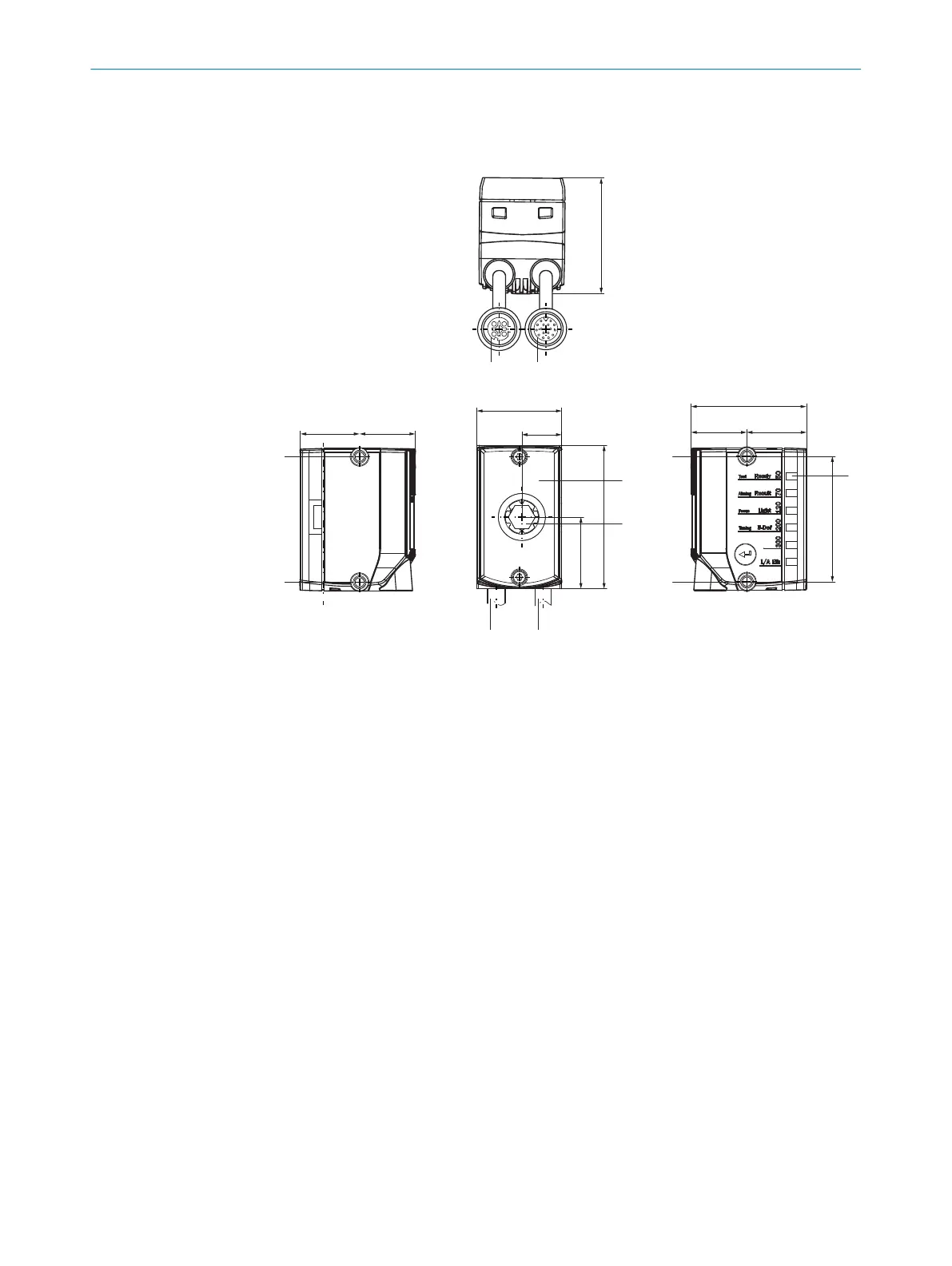

Figure 1: structure and device dimensions, unit: mm (inch), decimal separator: period
1
Connecting cable with Ethernet connection (female connector, M12, 4-pin, D-coded),
length of cable: 0.25 m
2
Connecting cable with Power/Serial Data/CAN/I/O connection (male connector, M12,
17-pin, A-coded), length of cable: 0.35 m
3
4 threaded mounting holes, M4: through hole: 6.4 mm deep; max. screw-in depth: 5 mm
4
Viewing window with 8 integrated illumination LEDs, 2 LED alignment aids, 1 feedback
LED, 1 time-of-flight sensor
5
Optics, manual focus adjustment with the help of a focus adjustment tool
6
6 status LEDs to display the focus position and working distance as well as the device
status (2 display levels)
3 PRODUCT DESCRIPTION
14
