SICK GLS611 - Illumination Unit; Display and Operating Elements

3.3.2 Illumination unit
3
4
1
1
1
1
1
1
2
2
1
1

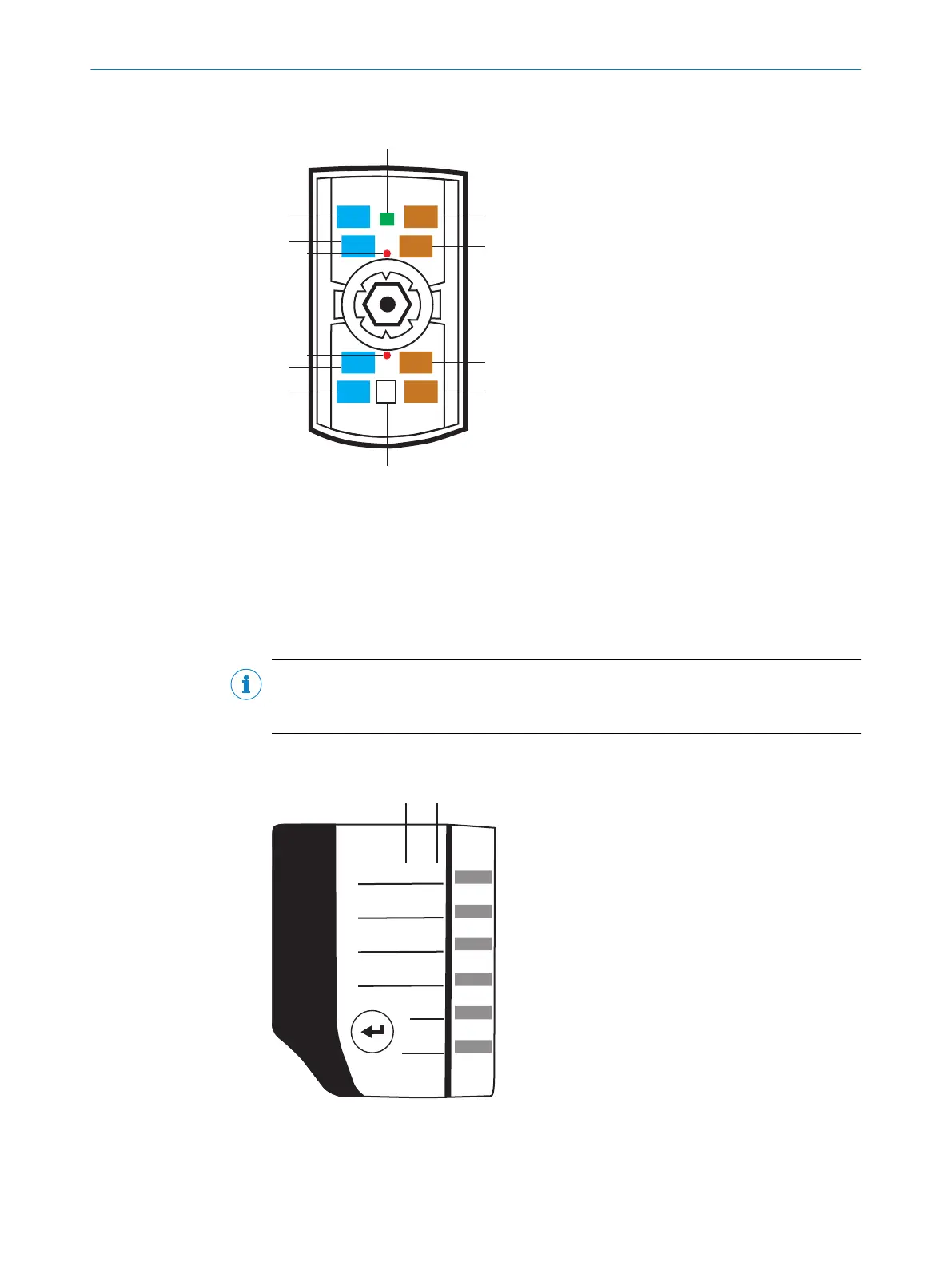

Figure 2: Ilumination unit (integrated illumination)
1
8 integrated illumination LEDs (color: 4 visible amber light, 4 visible blue light)
2
2 LED alignment aids, can be deactivated (color: visible red light)
3
Feedback LED (color: visible green light, visible red light; green e.g. for Good Read, red
e.g. for No Read)
4
Time-of-flight sensor for measuring the working distance in configuration mode (color:
invisible infrared light)
NOTE
To avoid being dazzled by the integrated illumination unit, do not look into the viewing
window of the device.
3.3.3 Display and operating elements
Ready
5070120200300
Light
Test
Aiming
Focus
U-Def
L/A Eth
Tuning
Result
2
1
Figure 3: Status LEDs (2 display levels) on the side of the housing
1
First display level: distance values (focus position and working distance) in configuration
mode
2
Second display level: Device status in read mode
PRODUCT DESCRIPTION 3
