Not recommended:
γ < 0° or γ > 0°
2
γ
γ = 0°
1
Recommended:
γ = 0°

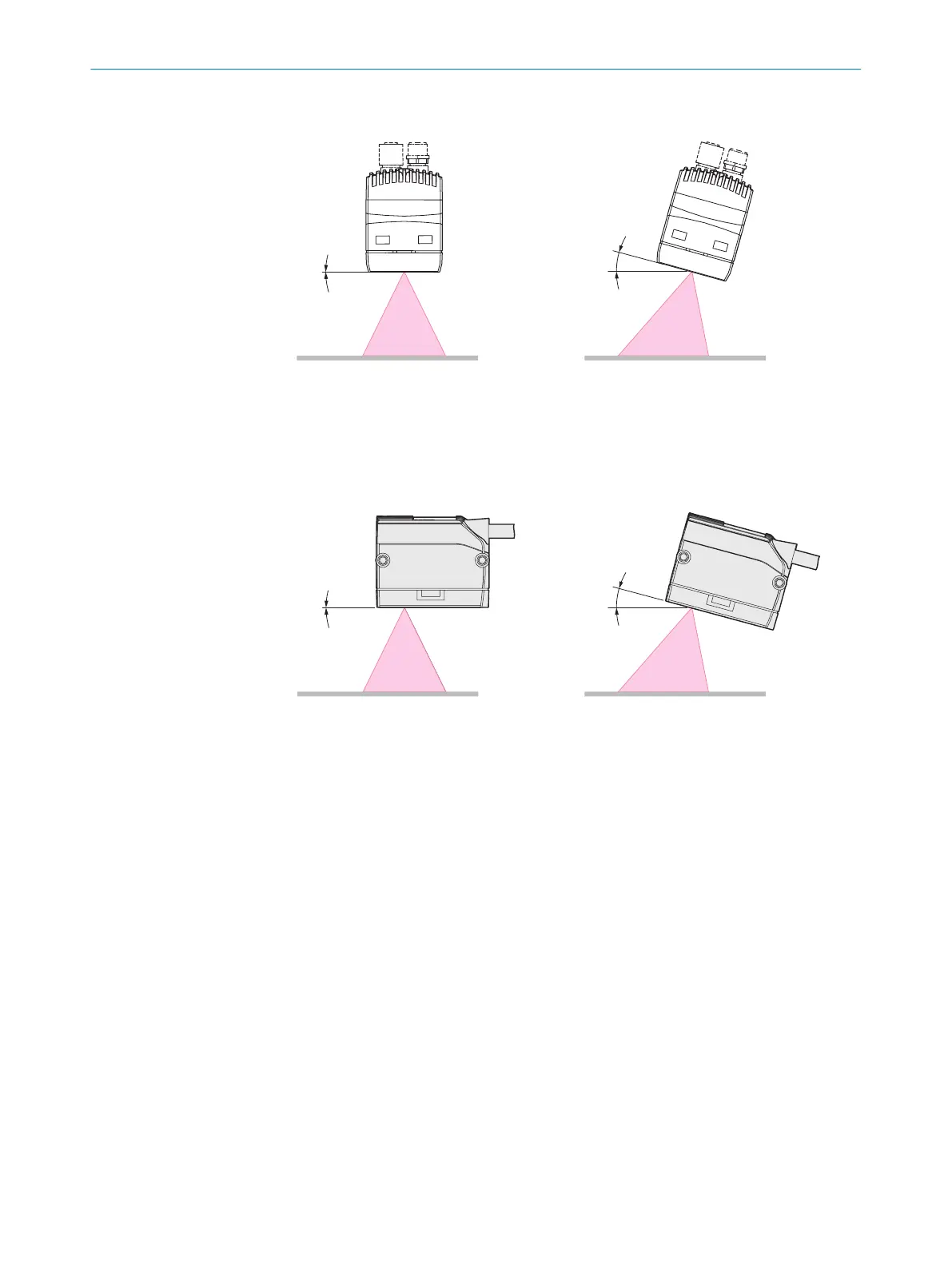

Figure 8: Mounting bracket γ
1
Recommended: γ = 0°
2
Not recommended: γ < 0° or γ > 0°
Setting beta (β) mounting angle:
1
Recommended:
β = 0°
Not recommended:
β < 0° or β > 0°
2
β
β = 0°
Figure 9: Mounting bracket β
1
Recommended: β = 0°
2
Not recommended: β < 0° or β > 0°
Setting alpha (α) mounting angle:
Only relevant for use of individual 2D codes (no multicode labels). Adjust the alpha (α)
angle to change the coordinate system of the field of view, see "Configuring the device
manually", page 39. The Alpha (α) parameter is set to 0° by default.
