SICK LMS5 Series User Manual

Operating Instructions
LMS5xx
Electrical installation
8013796/ZM63/2017-05-09 © SICK AG · Germany · All rights reserved · Subject to change without notice 69
Chapter 6
LMS500 PRO Indoor: "Power/Data/I/O" connection in the system connector
Terminal Signal Function
1V
S
Power supply sensor
2 GND Ground sensor
3 OUT1 Switching output 1
4 OUT2 Switching output 2
5 OUT3 Switching output 3
6 IN1 Switching input 1
7 IN2 Switching input 2
8 GND IN1/2 Ground inputs 1 and 2
9 GND IN3/4/IN Sync Ground inputs 3 and 4 / Input Synchronization
10 IN3 Switching input 3
11 IN4/IN Sync Switching input 4 / Input Synchronization
12 OUT4 Switching output 4
13 OUT5 Switching output 5
14 V
S
OUT Power supply switching outputs
15 GND V
S
OUT Ground power supply switching outputs
16 TD+ Transmitter RS-422
17 TD–/TxD Transmitter RS-422/RS-232
18 GND RS Ground RS-422/RS-232
19 RD–/RxD Receiver RS-422/RS-232
20 RD+ Receiver RS-422
21 Shield RS Shield RS-422/RS-232
22 Shield CAN Shield CAN bus
23 CAN H CAN bus high
24 GND CAN Ground CAN bus
25 CAN L CAN bus low
26 OUT6/OUT Sync Switching output 6 / Output Synchronization

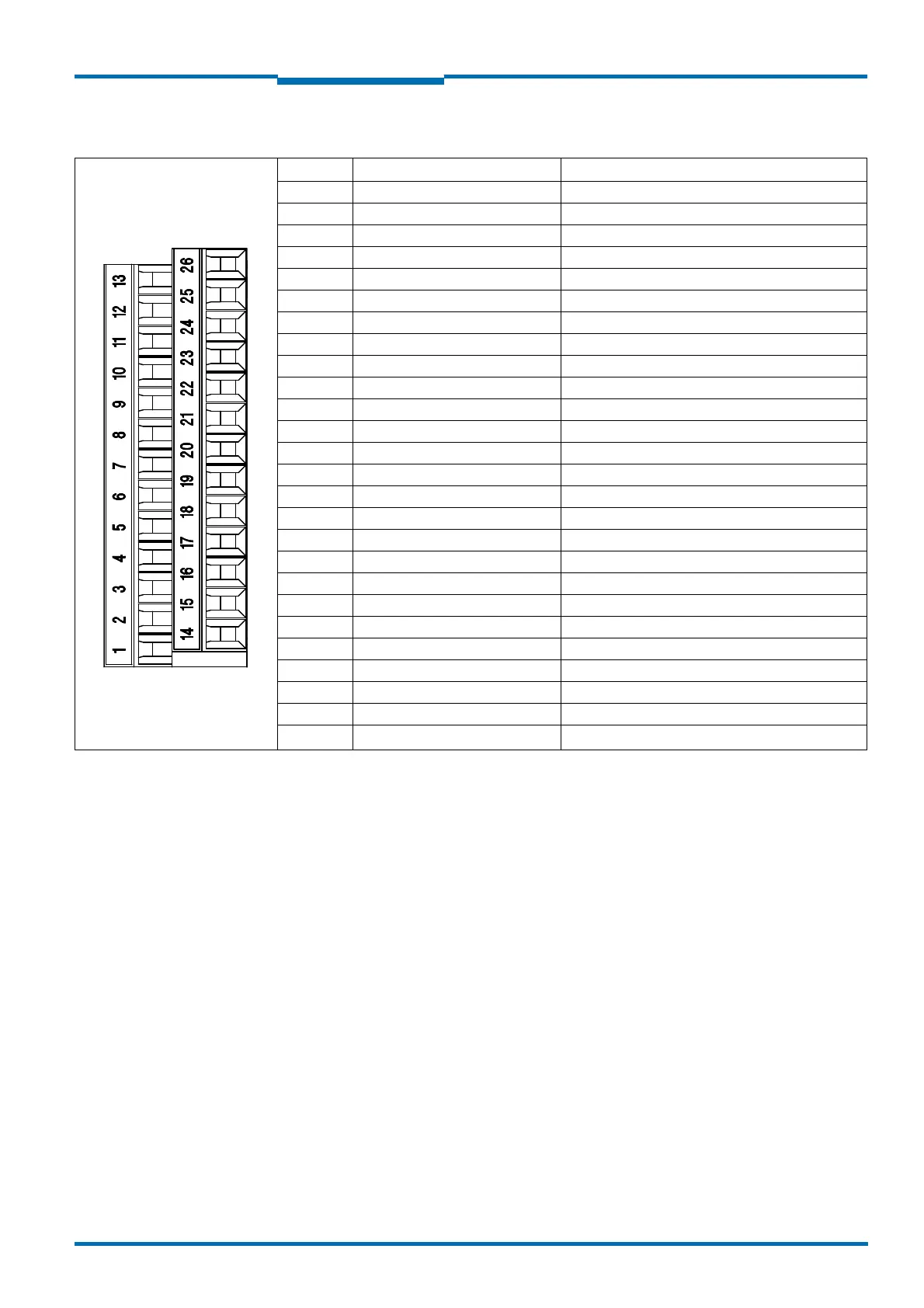

Tab. 23: LMS500 PRO Indoor: Terminal assignment of the “Power/Data/I/O” connection (2 x terminal blocks, 13-pole)
