SICK LMS5 Series User Manual

Operating Instructions
LMS5xx
Electrical installation
8013796/ZM63/2017-05-09 © SICK AG · Germany · All rights reserved · Subject to change without notice 71
Chapter 6

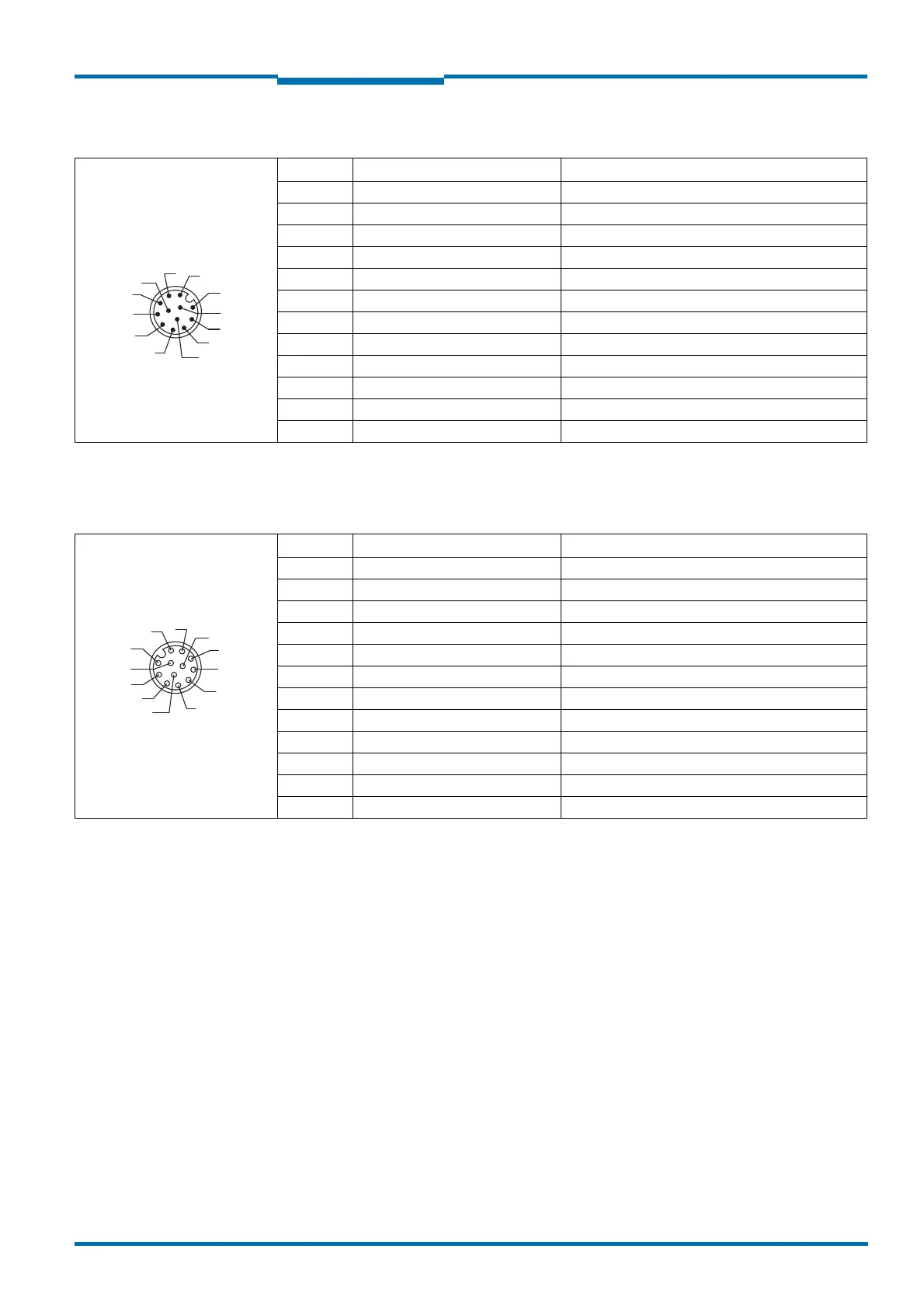

LMS511 PRO, LMS581 PRO and LMS511 Heavy Duty Outdoor: “Data” connection
LMS511 PRO, LMS581 PRO and LMS511 Heavy Duty Outdoor: “I/O” connection
Pin Signal Function
1V
S
OUT Power supply switching outputs 1 and 2
2 RD–/RxD Receiver RS-422/RS-232
3 OUT1 Switching output 1
4 GND RS, CAN GND RS-422/RS-232/CAN
5 OUT2 Switching output 2
6 Reserved Do not use!
7 TD–/TxD Transmitter RS-422/RS-232
8 Reserved Do not use!
9 RD+ Receiver RS-422
10 TD+ Transmitter RS-422
11 CAN L CAN bus low
12 CAN H CAN bus high
Tab. 28: LMS511 PRO, LMS581 PRO and LMS511 Heavy Duty
Outdoor: Pin assignment of the “Data” connection (12-pin M12 male
connector, A-coded)
10
11
12
6
5
4
7
8
9
1
2
3
Pin Signal Function
1V
S
OUT Power supply switching outputs 3 to 6
2 GND IN1/2 Ground inputs 1 and 2
3 IN1 Switching input 1
4 GND IN3/4/IN Sync Ground inputs 3 and 4 / input Synchronization
5 IN2 Switching input 2
6 IN3 Switching input 3
7 GND OUT 3 ... 6 Ground outputs 3 to 6
8 IN4/IN Sync Switching input 4 / Input Synchronization
9 OUT3 Switching output 3
10 OUT4 Switching output 4
11 OUT5 Switching output 5
12 OUT6/OUT Sync Switching output 6 / Output Synchronization
Tab. 29: LMS511 PRO, LMS581 PRO and LMS511 Heavy Duty
Outdoor: Pin assignment of the “I/O” connection (12-pin M12 female
connector, A-coded)
10
11
12
6
5
4
7
8
9
1
2
3
