SICK LMS5 Series User Manual

Electrical installation
72 © SICK AG · Germany · All rights reserved · Subject to change without notice 8013796/ZM63/2017-05-09
Operating Instructions
LMS5xx Laser Measurement Sensors
Chapter 6

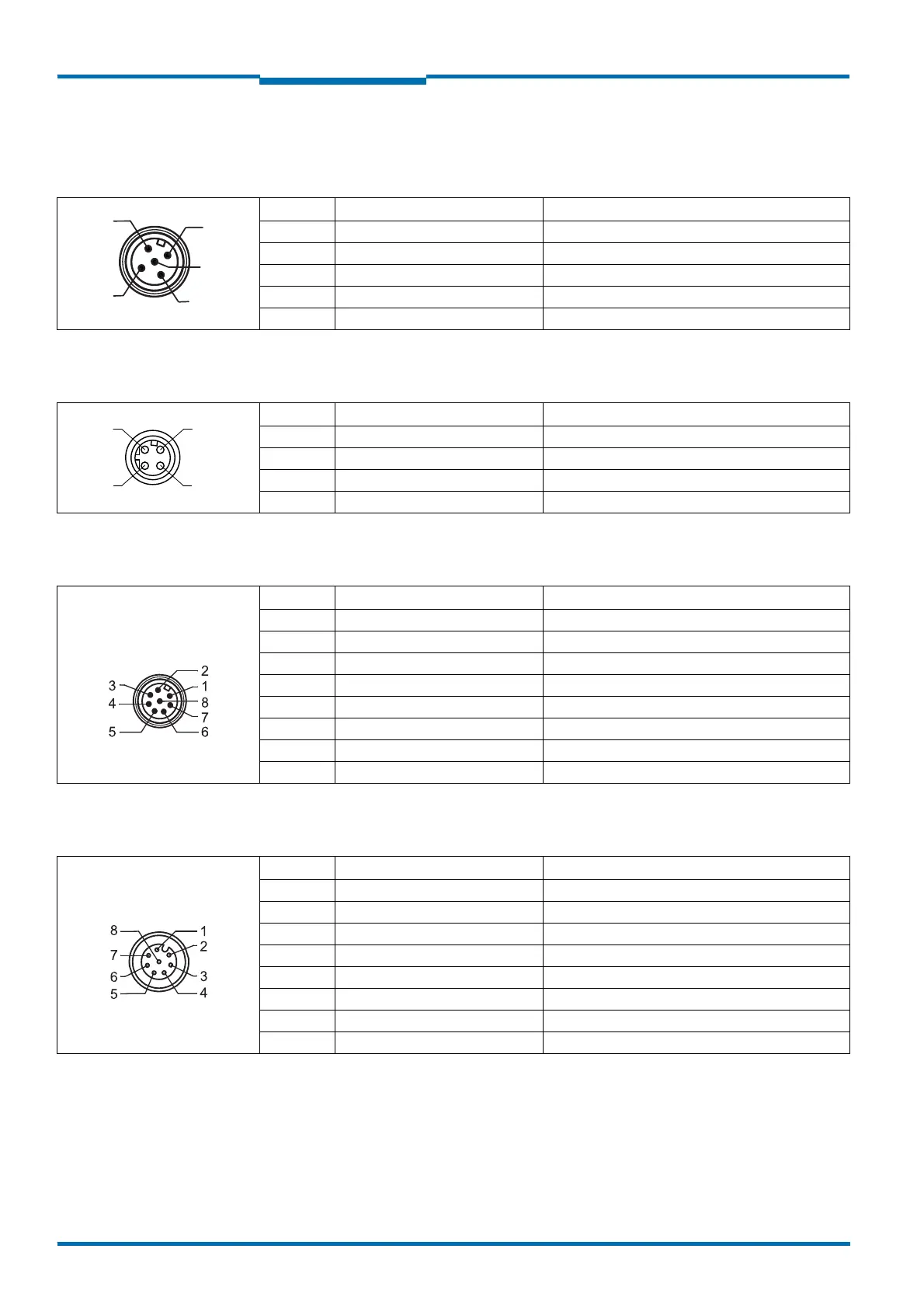

6.3.3 Connections of the LMS531 Security Outdoor
LMS531 Lite und PRO Security Outdoor: “Power” connection
LMS531 Lite und PRO Security Outdoor: “Ethernet” connection
LMS531 Lite Security Outdoor: “Inputs” connection
LMS531 Lite Security Outdoor: “Alarm” connection
Pin Signal Function
1V
S
Power supply sensor
2V
S
heat. Power supply heating
3 GND Ground sensor
4 Reserved Do not use!
5 GND heat. Ground heating
Tab. 30: LMS531 Lite Security Outdoor: Pin assignment of the “Power” connection (5-pin M12 male connector, A-coded)
4
2
3
5
1
Pin Signal Function
1 TX+ Transmitter+
2RX+ Receiver+
3 TX– Transmitter–
4RX– Receiver–
Tab. 31: LMS531 Lite Security Outdoor: Pin assignment of the “Ethernet” connection (4-pin M12 female connector, D-coded)
2
1
3
4
Pin Signal Function
1 A/DA (IN1) Armed/Disarmed (Switching input 1)
2 WT (IN2) Walk Test (Switching input 2)
3 Reserved Do not use!
4 Reserved Do not use!
5 Reserved Do not use!
6 Reserved Do not use!
7 IN 3 Input 3 (Switching input 3)
8 GND IN Ground all inputs
Tab. 32: LMS531 Lite Security Outdoor: Pin assignment of the “Inputs” connection (8-pin M12 male connector, A-coded)
Pin Signal Function
1 Alarm A Alarm output (relay), contact A
2 Alarm B Alarm output (relay), contact B
3 Alarm R A Alarm output, resistor monitored, contact A
4 Alarm R B Alarm output, resistor monitored, contact B
5 Error A Error output (relay), contact A
6 Error B Error output (relay), contact B
7 Sab Sabotage output
8 GND Sab Ground Sabotage output
Tab. 33: LMS531 Lite Security Outdoor: Pin assignment of the “Alarm” connection (8-pin M12 female connector, A-coded)
