SICK LMS5 Series User Manual

Operating Instructions
LMS5xx
Electrical installation
8013796/ZM63/2017-05-09 © SICK AG · Germany · All rights reserved · Subject to change without notice 83
Chapter 6
Input circuit IN1 to IN4

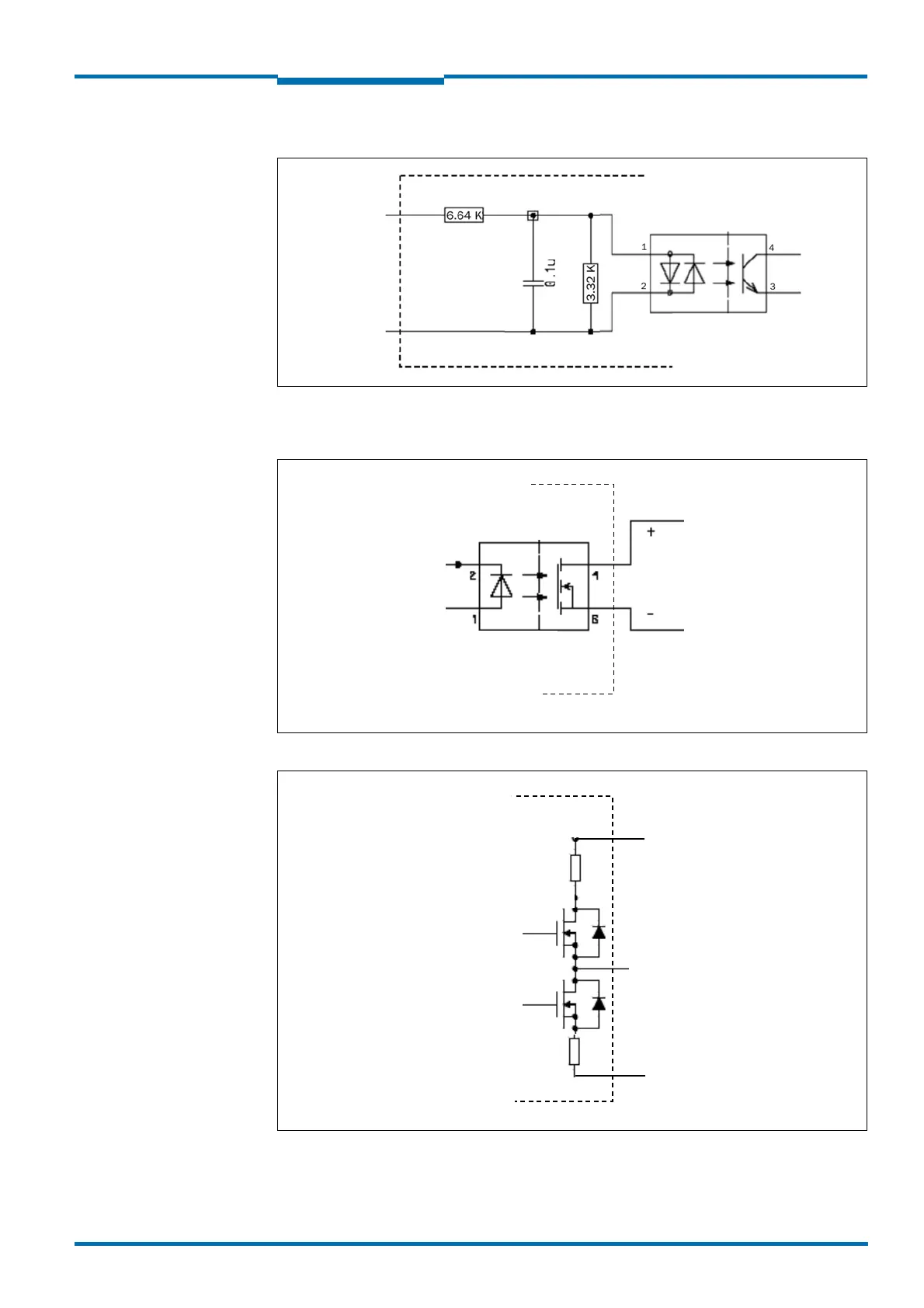

Fig. 57: Input circuit IN1 to IN4
Connection of the outputs of the LMS5xx to a PLC
Fig. 58: Connection of the outputs 1 or 2 to a PLC (active low)
Fig. 59: Connection of the outputs 3 ... 6 to a PLC (active high)
IN1 ... IN4
GND IN
LMS5xx
LMS5xx PLC
OUT1 + 2
I
max
= 250 mA
V
S
OUT1/2
LMS5xx
OUT3 ... 6
I
max
= 100 mA
V
S
OUT3 ... 6
PLC
GND V
S
OUT
