3 Product description
3.1 System overview
PLOC2D is a robot guidance system, utilizing a part locator sensor, InspectorP6xx,
together with the PLOC2D software. PLOC2D also supports user-created plugins, see
seperate documentation on SICK Support Portal.
PLOC2D is configured with a PC via a web-based graphical user interface.
3.2 Scope of delivery
Depending on the device version and the accessories ordered, the scope of delivery will
include the listed items:
•
PLOC2D sensor
•
Two sliding nuts, M5
•
Light inlet and electrical connections fitted with protective caps/plugs.
•
SW 2 hexagon key for opening and closing the cover of the micro SD card slot.
•
SICK lens cloth
Accessories
Accessories, such as brackets and connecting cables, are only supplied if ordered
separately
3.3 Product ID
3.3.1 Type label
The type label gives information for identification of the sensor.
1
2
3

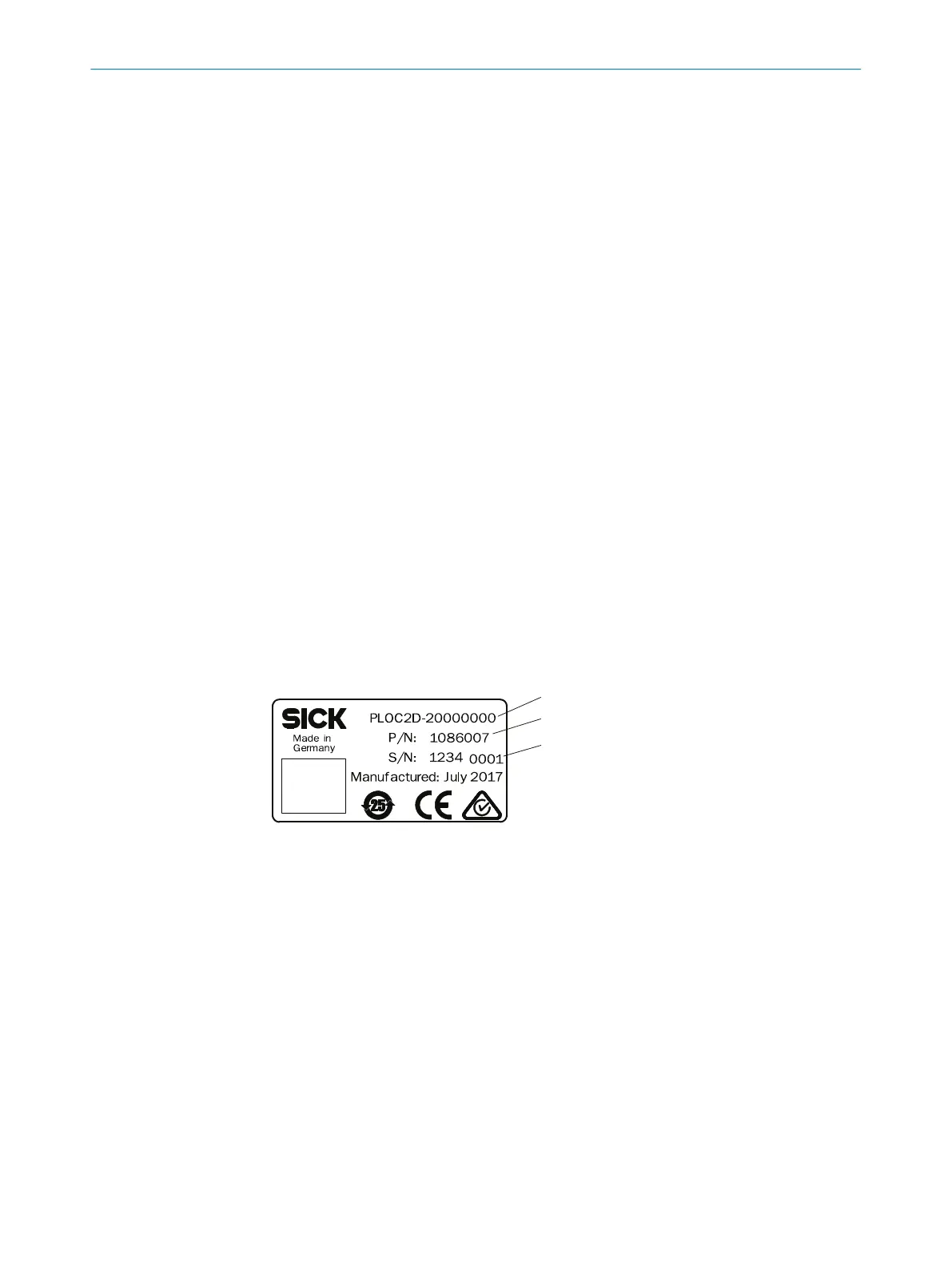

Figure 1: Type label design for the sensor
1
Type code
2
Product identification number
3
Serial number
