3.4 Product characteristics
3.4.1 Device view (InspectorP65x)

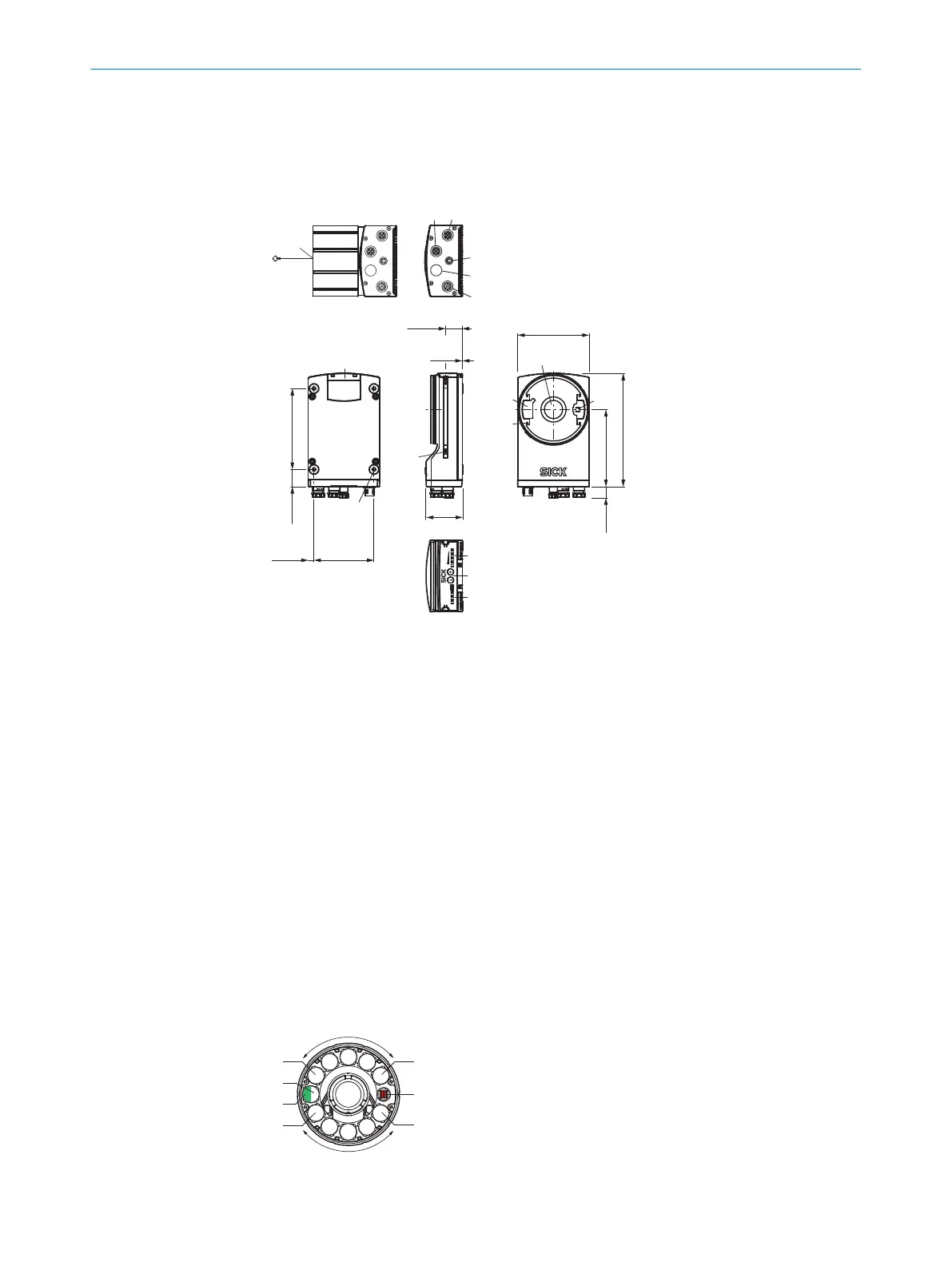

Dimensional drawing of InspectorP65x devices
ß
â
102
21,6
75,6
90
0,2
21,4
14,2
97,2
142,8
7,2
1 2
3
4
5
7
à
8
9
ã
å
ä
á
46
6
All dimensions
in mm
1
Connection P1, not used
2
Connection P3, Gigabit Ethernet
3
Connection X2, not used
4
Connection P2, not used
5
Connection X1, Power and I/O
6
Reference point for working distance (center of front screen) from PLOC2D to object
7
Black cover for the micro SD memory card slot
8
M5 blind tapped holes, 5 mm deep (4 x), for mounting the PLOC2D
9
Sliding nut M5, 5.5 mm deep (2 x), pivoting, for an alternative method of mounting the
PLOC2D
ß
M2.5 blind tapped holes, 5.5 mm deep (4 x), for mounting the lighting spacers
à
Cover for lighting connector
á
Light inlet with C-mount thread
â
Outlet opening for light beam from aiming laser
ã
Bar graph display (10 x LEDs)
ä
Function button (2 x)
å
LEDs for status display (10 x 2 levels)
Integrable illumination unit (fixed)
1
1
1
3
1
1
2
1
Illumination via 11 LEDs
