SICK PLOC2D 4.1 - Device View (Inspectorp62 X)

Integrable illumination unit (option)
1
2
3
1
2
1
Illumination via 6 LEDs
2
2 openings in the illumination for the aiming laser for alignment: the red laser LEDs can
be switched off and each generates a red dot on the object within the field of view
3
Feedback LED

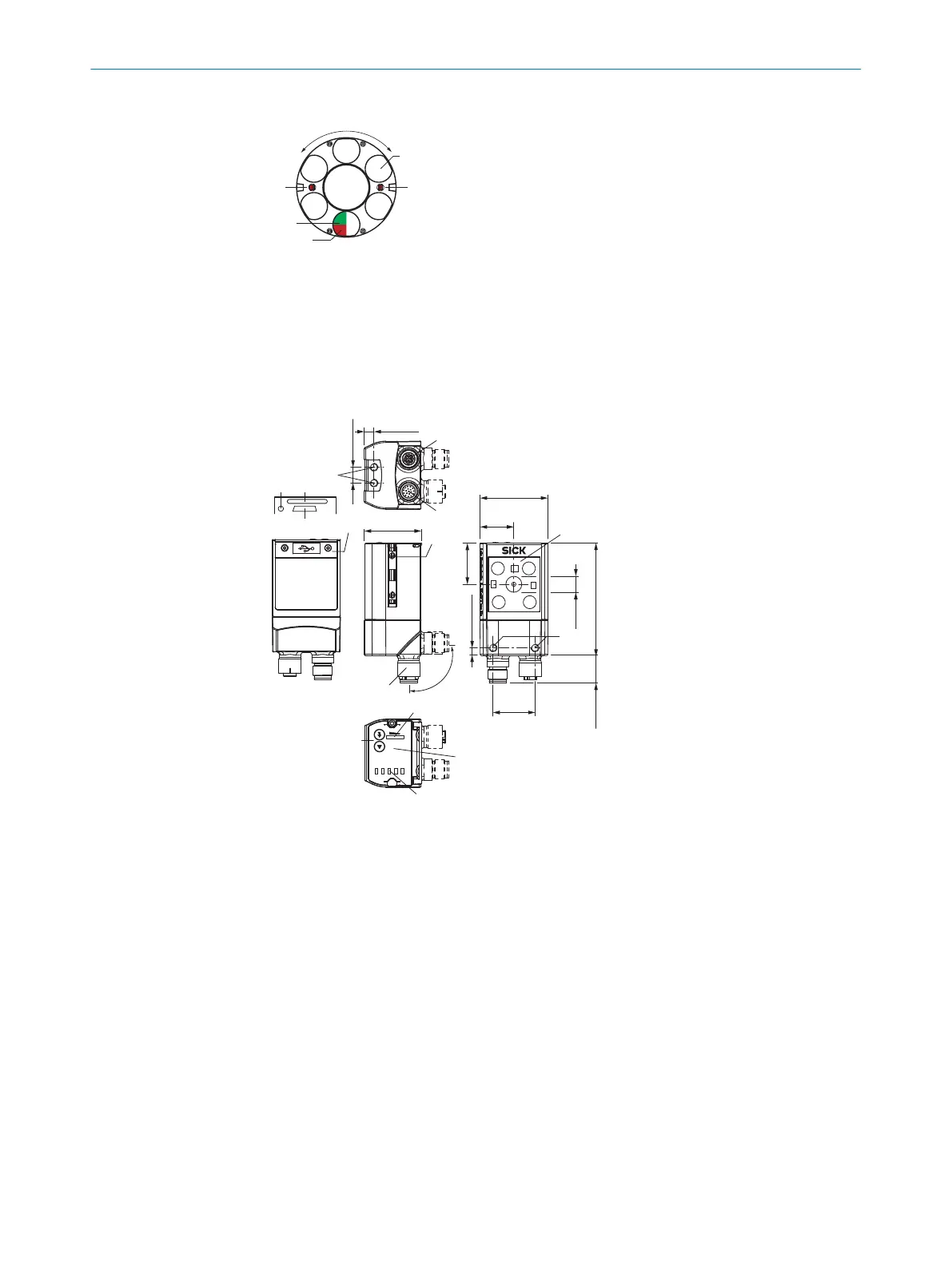

3.4.3 Device view (InspectorP62x)
Dimensional drawing of InspectorP62x devices
8
6
4
Ready Read Diagn Result TeachIn LED Auto-Setup Data Autofocus LNK TX Userdefined
300 200 100
70
40
100 0
[mm]
[%]
2
3
a
ß
7
9
35.6 (1.40)
6 (0.24)
10 (0.39)
5
1
26.5
(1.04)
71 (2.80)
17.44
(0.69)
4.8 (0.19)
21.5
(0.85)
26
(1.02)
43 (1.69)
Ø 10
(0.39)
1
â
á
ã
à
1
Blind tapped hole M5, 5 mm deep (4x), for mounting the sensor
2
Gigabit Ethernet
3
Power and I/O connector
4
Sliding nut M5, 5.5 mm deep (2x), for an alternative method of mounting the sensor
5
Reading window with internal illumination LEDs (4x)
6
Swivel connector (swivel range 180°)
7
Bar graph display
8
Beeper (under the housing)
9
Status LEDs (5x LEDs, 2 levels)
ß
Function buttons (2x)
à
Cover (flap) with fixing screw, Torx TX6 (2x)
á
USB port
â
Slot for microSD memory card
ã
Status display (LED) for microSD memory card
3 PRODUCT DESCRIPTION
14
