1
2
4
3
1
2
4
3
90
90

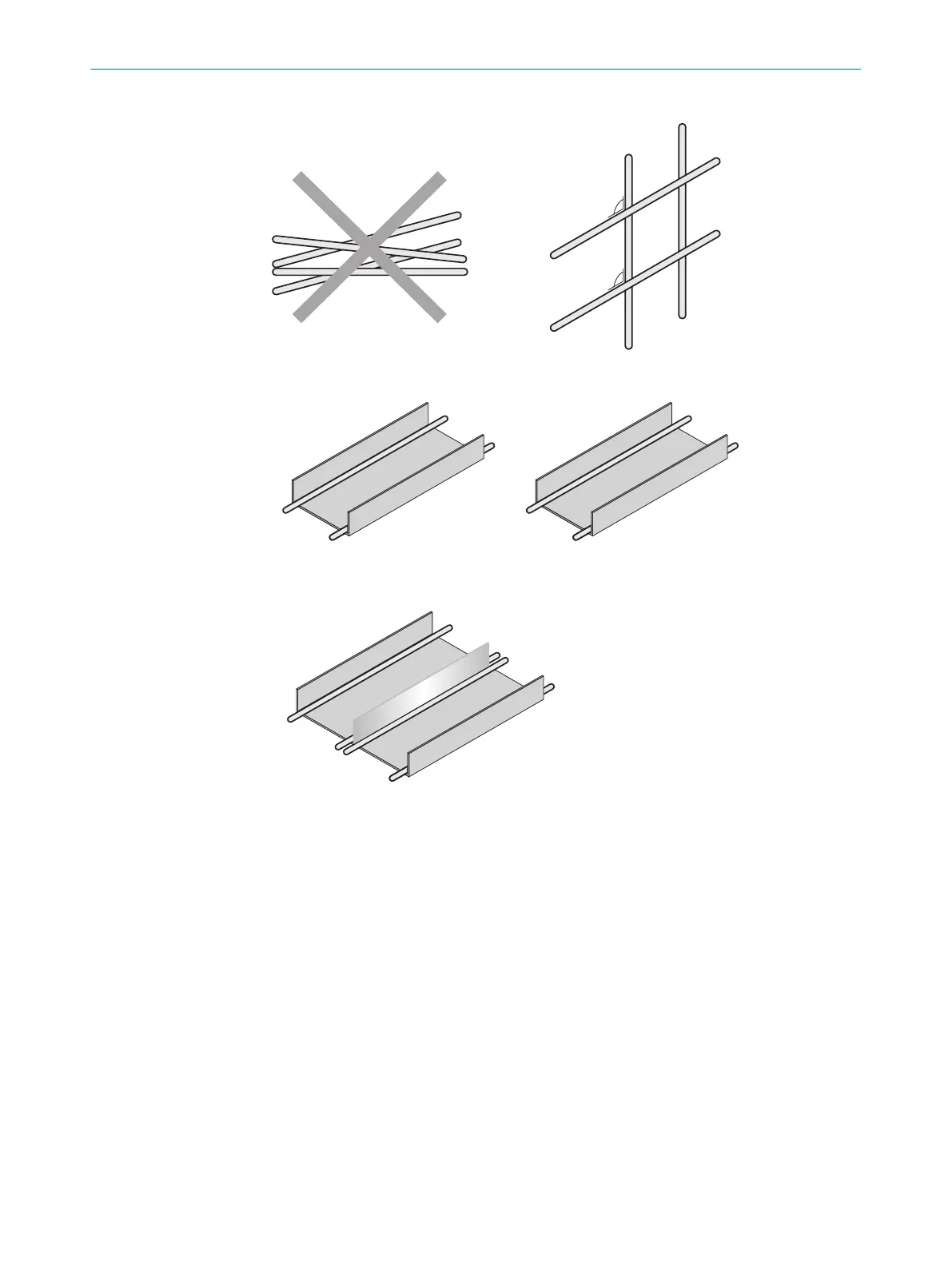

Figure 2: Cross cables at right angles
1
2
3
4
Figure 3: Ideal laying – Place cables in different cable channels
1
2
3
4
Figure 4: Alternative laying – Separate cables with metallic separators
6
ELECTRICAL INSTALLATION
