Product description
3.3 Application example
Muting application
Engine machining station with M4000 Advanced and UE403. The station entrance is
safeguarded with a 3-beam multiple light beam safety device together with the UE403
switching amplifier. 2 pairs of inductive muting sensors that are connected locally to the
UE403 detect the transport platform and trigger muting. The muting lamp signals the
muting state. The control switch for reset and override is also connected locally via the
UE403.

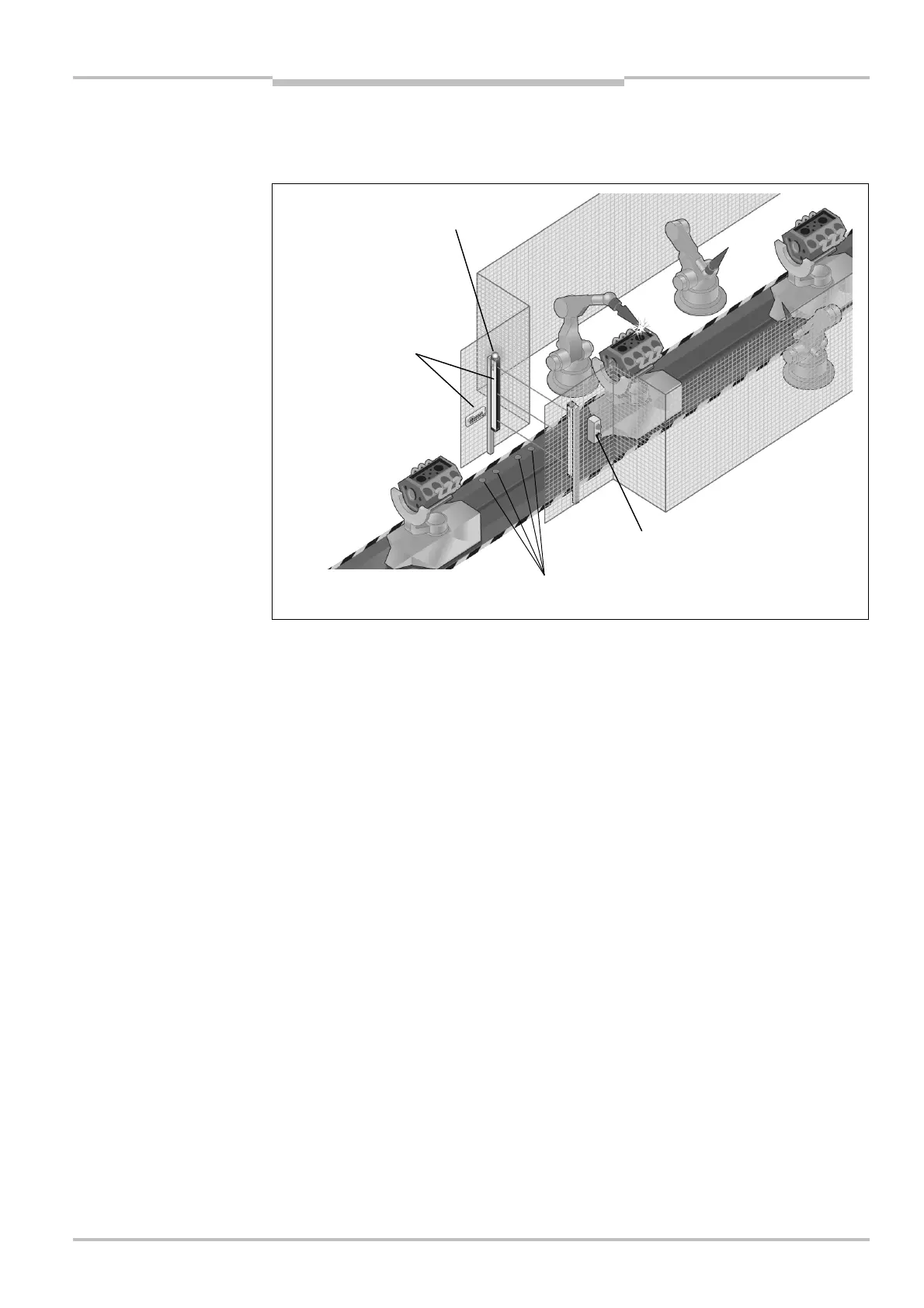

Fig. 2:Example for a muting
application
Muting
sensors
M4000 Advanced
+ UE403
Muting
lamp
Control
switch
for
reset/override
