Operating Instructions Chapter 4
UE403
8010854/WP71/2012-11-28 © SICK AG • Industrial Safety Systems • Germany • All rights reserved 15
Subject to change without notice
Mounting
4 Mounting
This chapter describes the preparation and completion of the installation of the UE403
switching amplifier. The UE403 switching amplifier can either be mounted directly on the
M4000 multiple light beam safety device or on the system.
The maximum length of the connection cable between the UE403 switching amplifier and
the M4000 multiple light beam safety device is 10 m.
The following steps are necessary after mounting and installation:
• completing the electrical connections (chapter 5)
• commissioning (chapter 7)
• configuration (chapter 8)
4.1 Mounting on the M4000 multiple light beam safety
device
The UE403 switching amplifier can be mounted directly on the M4000 multiple light beam
safety device using the mounting kit included with the delivery. A distinction is made
between two types of mounting:
• mounting on the rear of the M4000
• mounting on the side of the M4000
4.1.1 Mounting on the rear of the M4000
The mounting screws and the sliding nuts are included with the delivery.
Note

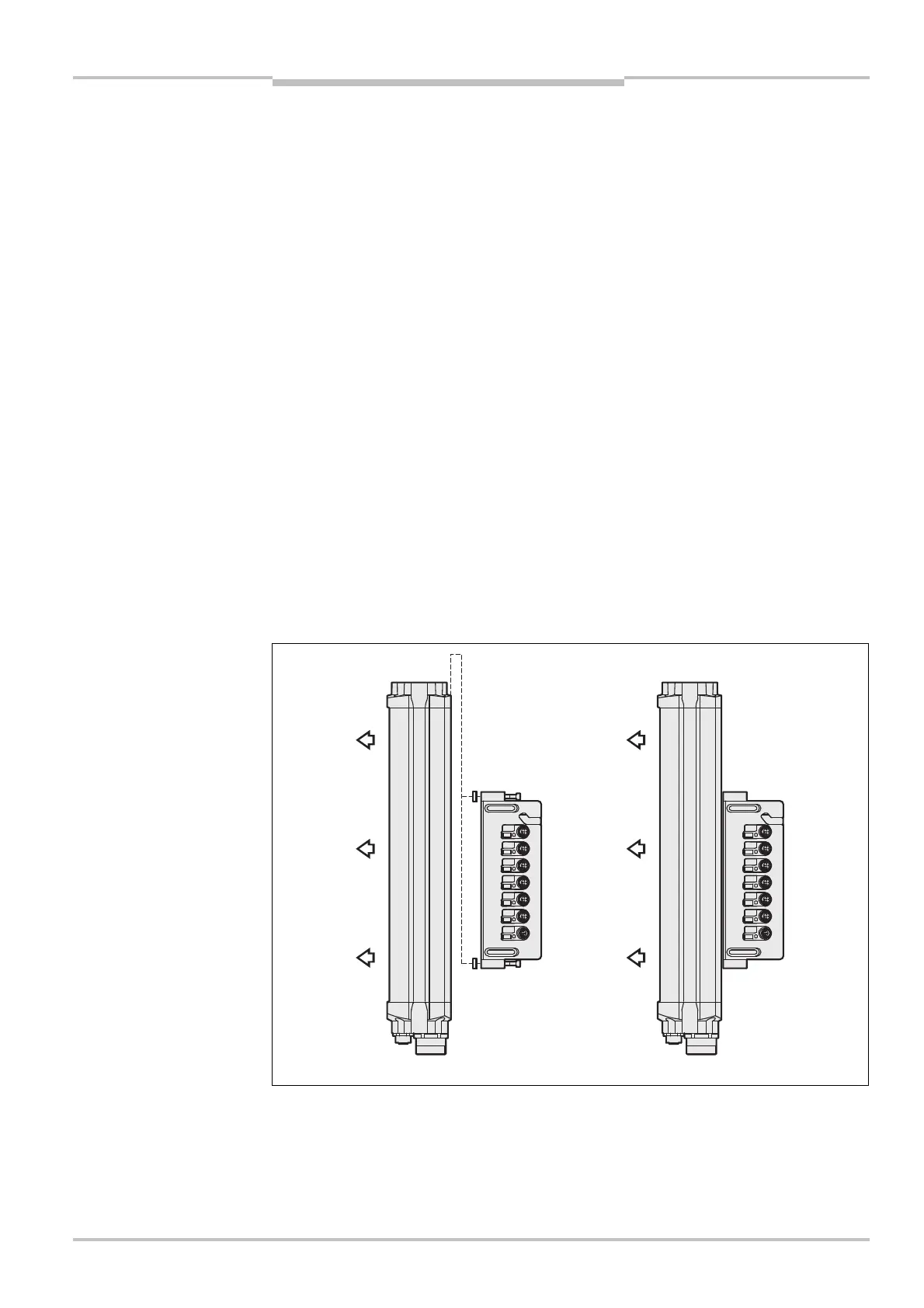

Fig. 4: Mounting on the rear
of the M4000
Note
