SICK UE403 - Connection muting lamp M12 × 5

Chapter 5 Operating Instructions
UE403
20 © SICK AG • Industrial Safety Systems • Germany • All rights reserved 8010854/WP71/2012-11-28
Subject to change without notice
Electrical installation
5.3 Connection muting lamp M12× 5
T
he UE403 switching amplifier has a connection for a muting lamp.
Pin Wire colour Description
1 Brown Not assigned
2 White Muting lamp output
3 Blue 0 V DC (voltage supply)
4 Black Not assigned
5 Grey Not assigned
• The maximum cable length is 10 m.
• Connection cables are available as SICK accessories (see “Accessories” on page 36ff).

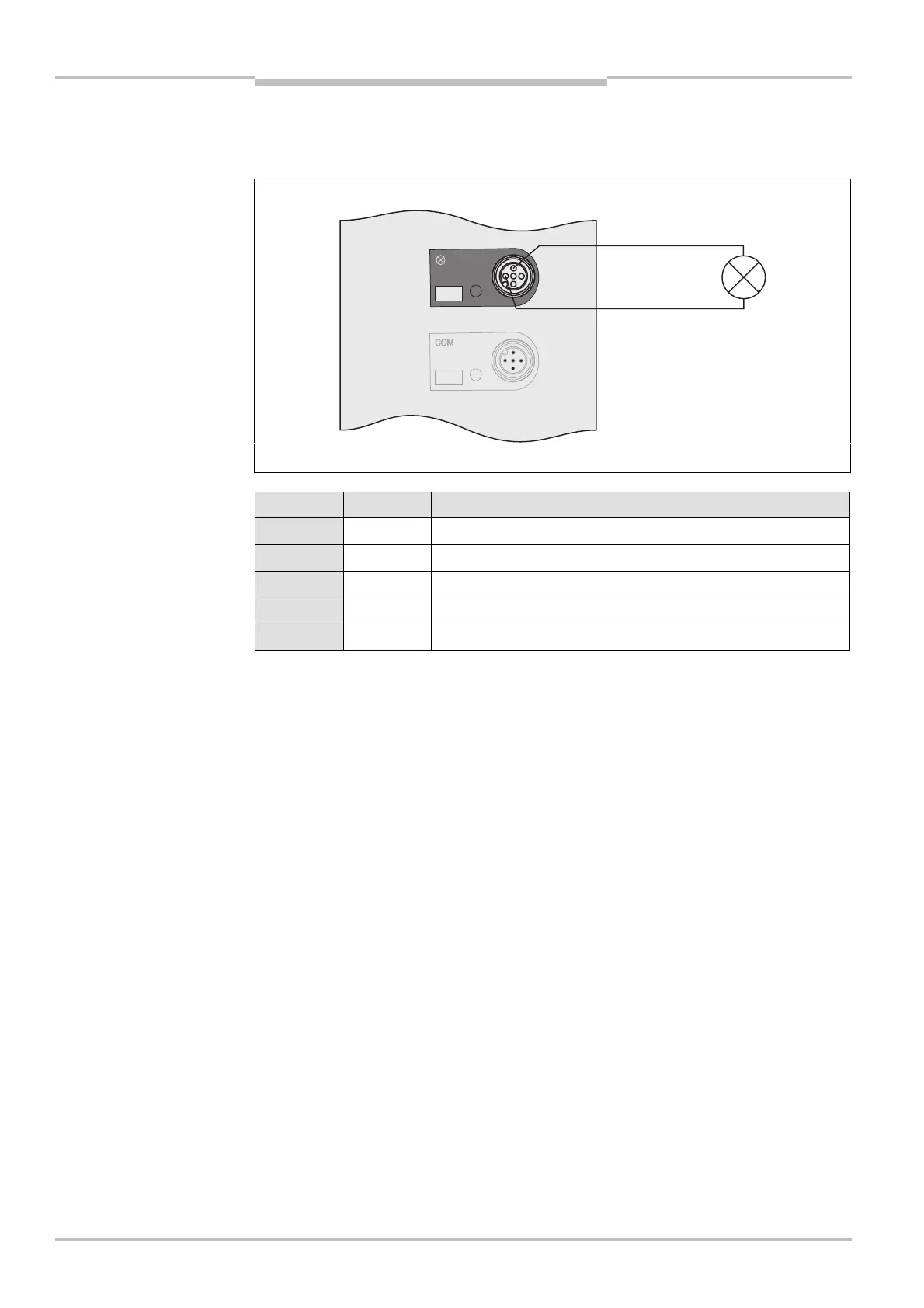

Fig. 8: Pin assignment for
muting lamp connection
M12
 × 5
Tab.
5
:
Pin assignment for
muting lamp connection
M12  × 5
Notes
Pin
2
Pin
3
