Mounting
4.1.2 Mounting on the side of the M4000
The mounting screws and the sliding nuts are included with the delivery.
4.2 Mounting on the system
Alternatively, the UE403 switching amplifier can also be mounted on a suitable
mechanical component on the system. During this process please observe the following
notes:
• The maximum length of the connection cable between the UE403 switching amplifier
and the M4000 multiple light beam safety device is 10 m.
• Pay attention to the maximum cable lengths for devices connected (e.g. for muting
sensors, control switches, etc.).
• For the mounting position choose a suitable mechanical component with a flat surface.
• For the UE403 switching amplifier choose a protected mounting position and in this way
prevent damage (e.g. caused by approaching forklift trucks, contamination).
• Use suitable mounting material.
• Always mount the UE403 switching amplifier so that the status LEDs can be seen
clearly by the operator.

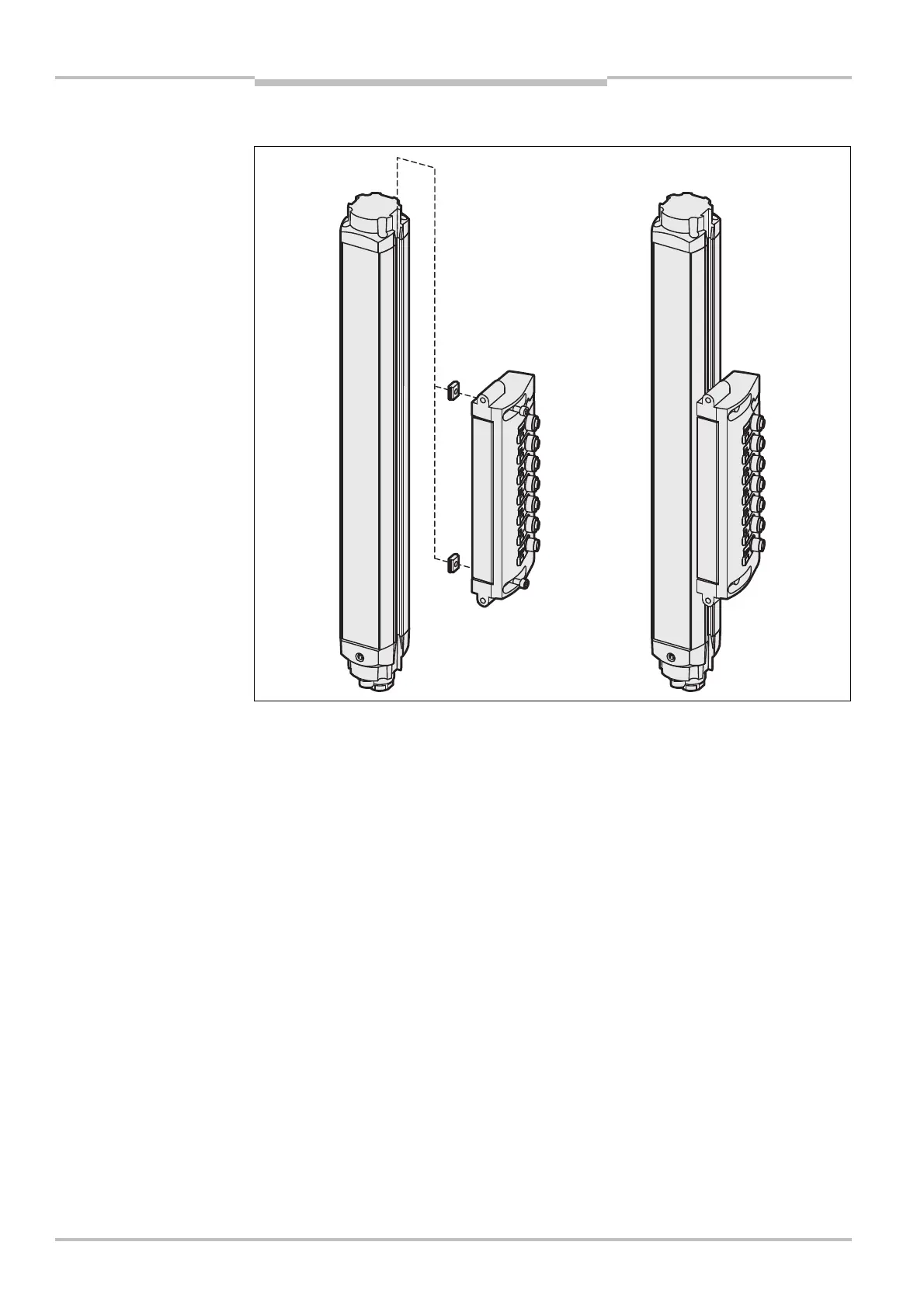

Fig. 5: Mounting on the side
of the M4000
