Technical specifications
10.2 Dimensional drawings
10.2.1 UE403
The fixing holes  and slots  are suitable for cheese head screws M5× 30 as per
DIN EN ISO 4762.

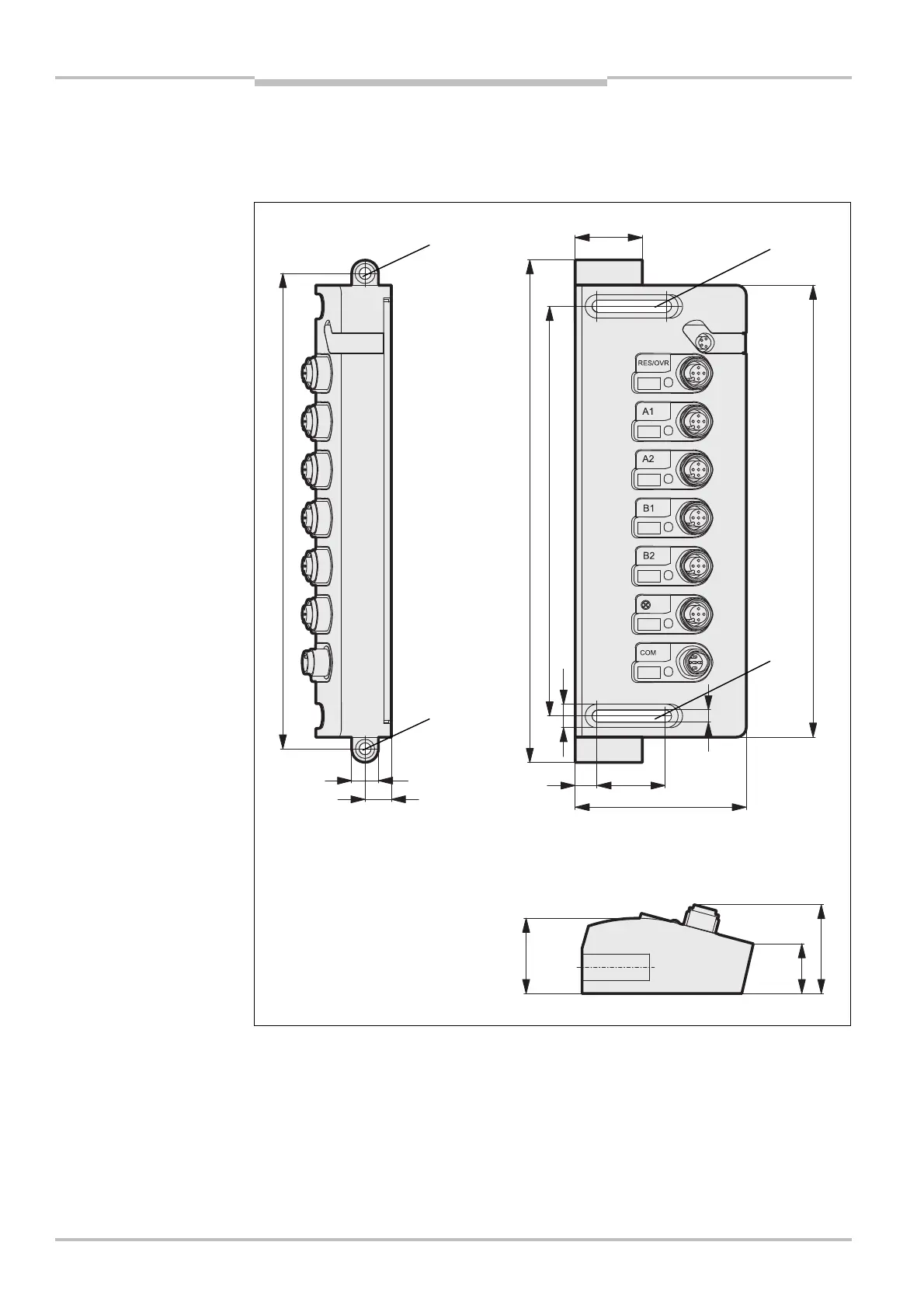

Fig. 14: Dimensional drawing
UE403 switching amplifier
(mm)
Note
213
225.2
183.5
202.5
30
12
11.75
10.5
5.5
9.75
30.5
76.5
33.75
22.3
40




