Setting Up the Telephone Installing the Telephone
12
Setting Up the Telephone
This chapter describes how to connect the individual elements of the
optiPoint 410/420 with each other (Æ Installing the Telephone) and how to
set up the device ready for operation (Æ Preparing for Operation).
Installing the Telephone

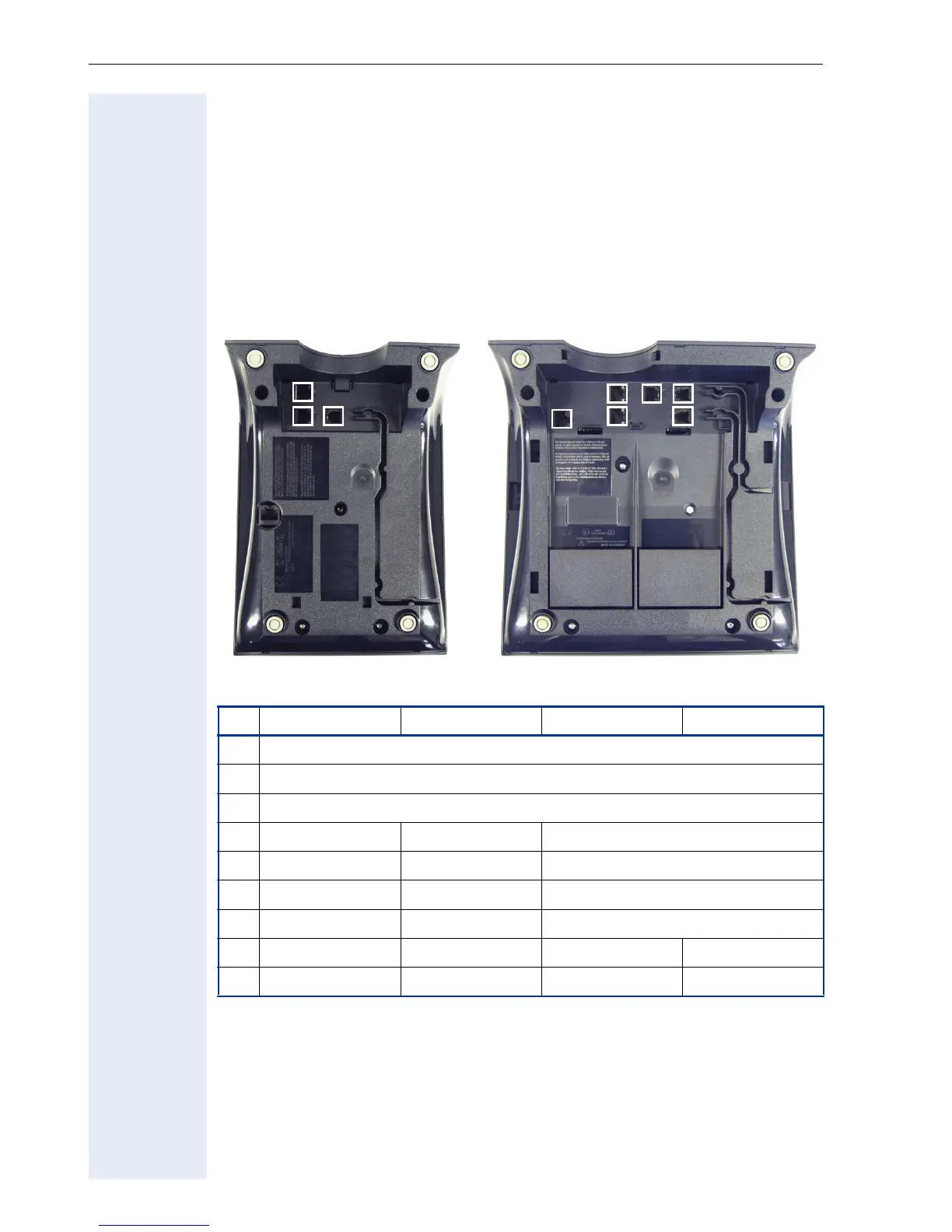

Connectors on the bottom of the telephone
entry economy standard advance
1 Ethernet port for LAN connection (optional with PoL
[1]
)
[1] Power over LAN:
If power is supplied over the LAN cable, no local power supply is required.
2 Handset connector
3 Connector for a local power supply unit (optional
[1]
)
4 - - Module connector
5 - - Ethernet port for PC
6 - - Headset connector
7 - - Adapter 1
8 - - Adapter 2 -
9 ---USB-Master
2
1
3
1
2
3
6
4
5
7
8
optiPoint 410 entry optiPoint 410/420 standard
9
