Description of the individual safety relays
3.7 3TK28 safety relays with solid-state enabling circuits
3TK28 safety relays
Manual, 07/2016, NEB926157502000/RS-AB/003
125

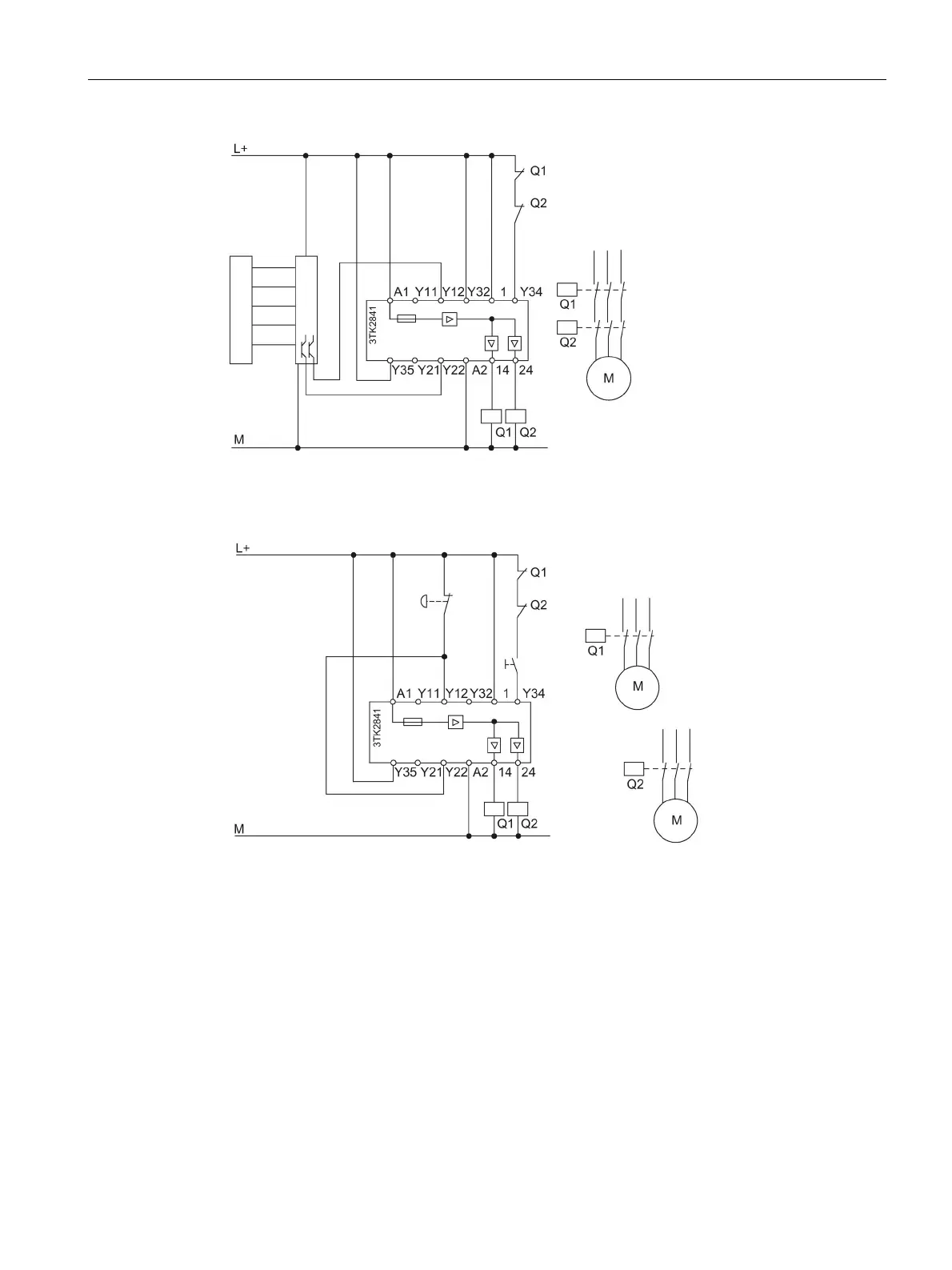

Figure 3-52 Autostart (2-channel) without cross-circuit detection
Figure 3-53 Monitored start (1-channel)
