Connecting
6.4 Power connections
SINAMICS DCM DC Converter
128 Operating Instructions, 12/2018, A5E34763375A
900 to 1200 A/2Q devices
6RA8088-6KS22-0AA0, 6RA8088-6LS22-0AA0, 6RA8090-6GS22-0AA0,
6RA8091-6DS22-0AA0, 6RA8091-6FS22-0AA0
a = 80 x 6 mm
<1> Fan with single-phase connection for devices with option L21
<2> TSE capacitor module connections:
<1100 A devices:
U = 91
V = 99
W = 98
C, D = 90
≥1100 A devices:
U = 92
V = 93
W = 94
C, D = 90

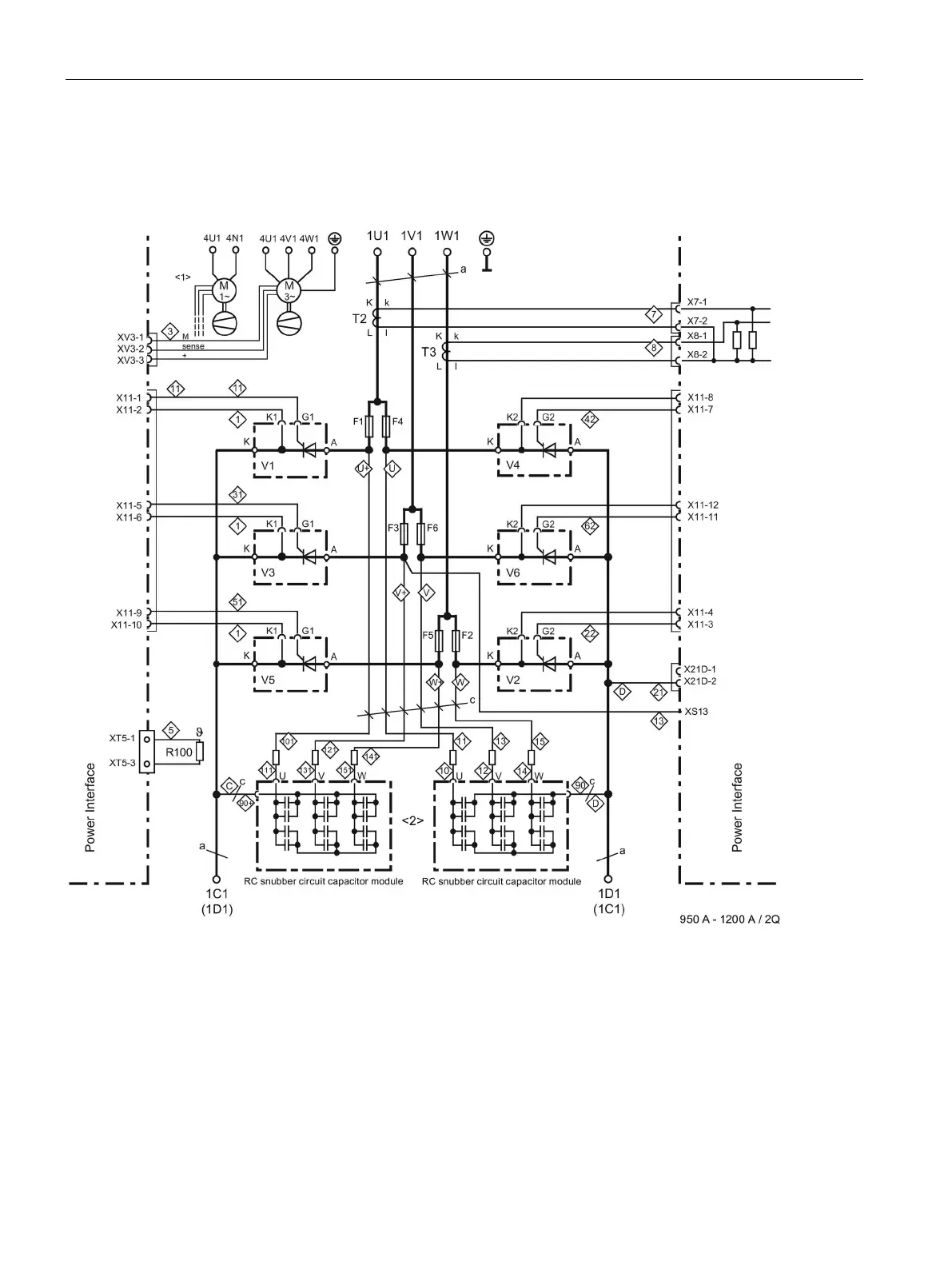

Figure 6-29 Power connections for 900 to 1200 A/2Q devices
